SP505 R - 2014 - 292505038/M14 - Mountfield Rotary Mower Blade Diagram

Name: SP505 R - 2014 - 292505038/M14 - Mountfield Rotary Mower Blade Diagram
SKU: sp505_r_292505038_m14_blade-group
Price: 1.53 GBP
Availability: InStock

Part No. sp505_r_292505038_m14_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

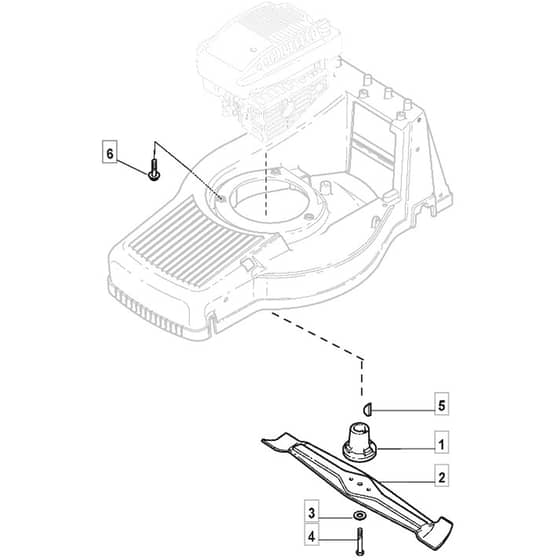

SP505 R - 2014 - 292505038/M14 - Mountfield Rotary Mower Blade Diagram

Description

Mountfield SP505 R Parts Diagram

Product Name - SP 505 R

Model Year - 2014

Model Type - TU 504 TR-R 4S

Art.N - 292505038/M14

Engine Model - GCV 160 OHC Autochoke

	Part No.	Details
1	MO122465630/0 In stock	Hub. Crankshaft Ø 25	£22.54 £18.78
2	MO181004143/0 In stock	Blade Winged	£24.43 £20.36
3	MO112530140/0 In stock	Washer	£1.97 £1.64
4	MO112735698/0 In stock	Screw	£1.84 £1.53
5	MO112139150/0 In stock	Feather. Crankshaft Ø 25 From 01-9-2007	£2.11 £1.76
6	MO112735108/1 In stock	Telf-Form Screw 3/8" X 1¼" Unc	£2.11 £1.76
