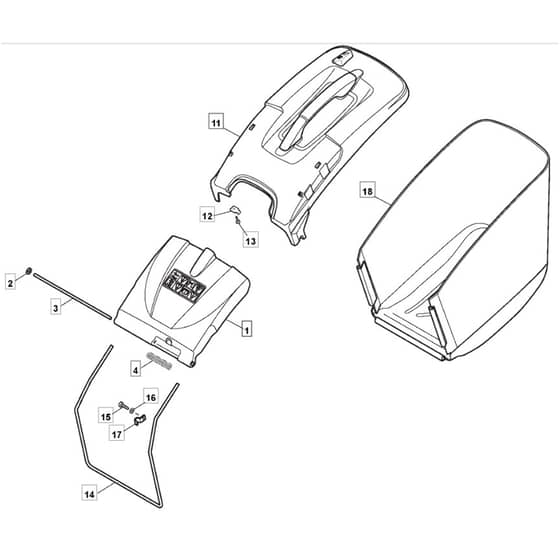

SP504 - 2009 - 290502043/UM9 - Mountfield Rotary Mower Grass Bag Diagram

Description

Mountfield SP504 Parts Diagram

Product Name - SP 504

Model Year - 2009

Model Type - DML 504 TR

Art.N - 290502043/UM9

	Part No.	Details
1	MO322600180/4 Available to backorder	Stone-Guard Black From 01-9-2011	£11.05 £9.21
2	MO112604899/0 In stock	Crown Fastener	£1.55 £1.29
11	MO381486007/0 Available to backorder	Upper Grasscatcher + Black Handle	£43.64 £36.37
12	MO322545159/0 Available to backorder	Plate	£1.55 £1.29
15	MO112728689/0 In stock	Screw	£1.40 £1.17
16	MO112521320/0 Available to backorder	Washer	£1.55 £1.29
17	MO325774220/0 In stock	Bracket	£1.55 £1.29
18	MO181002302/2 Available to backorder	Use 181002302.2	£77.42 £64.52
18	MO181002298/0 Available to backorder	Box. Fabric To 31-8-2009	£85.70 £71.42
