SP485 HW V - 2017-2018 - 294503038/M16 - Mountfield Rotary Mower Exhaust Muffler Diagram

Description

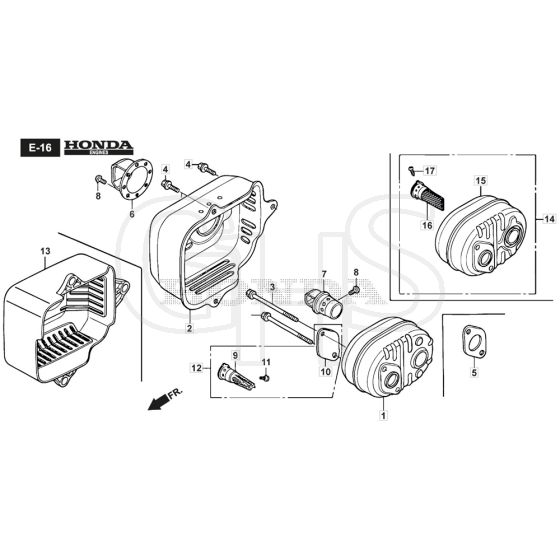

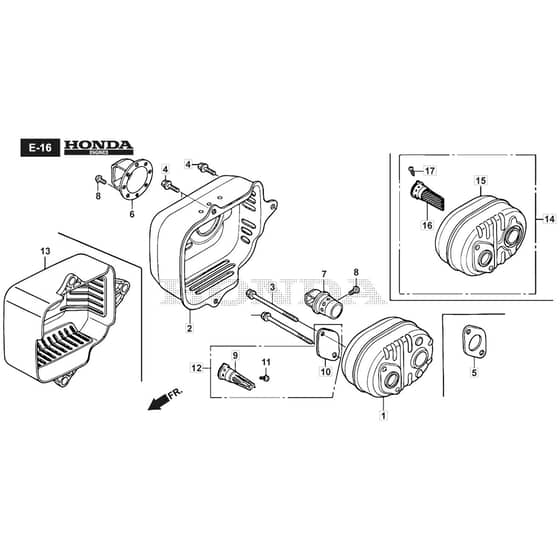

Mountfield SP485 HW V Parts Diagram

Product Name - SP 485 HW V

Model Year - 2017-2018

Model Type - MP1 504 WSV

Art.N - 294503038/M16

Engine Model - Honda GCV 160

	Part No.	Details
1	HP18310-Z0Y-010 Available to backorder	Muffler Comp.	£26.96 £22.47
2	HP18321-Z0L-810 In stock	Protector. Muffler	£17.72 £14.77
3	HP90004-ZL8-000 In stock	Bolt. Flange. 6X79 (Ct200)	£2.17 £1.81
4	HP90013-883-000 Available to backorder	Bolt. Flange. 6X12 (Ct200)	£4.34 £3.62
5	HP18381-ZL8-305 Available to backorder	Gasket. Muffler	£6.64 £5.53
10	HP18356-ZL8-000 Available to backorder	Plate. Arrester Number	£4.39 £3.66
12	HP06180-Z0J-000 Available to backorder	Arrester Kit. Spark	£81.00 £67.50
14	HP18300-Z8A-000 Available to backorder	Muffler Assy. (Arrester)	£18.85 £15.71
15	HP18310-Z8A-000 Available to backorder	Muffler Comp.	£182.88 £152.40
16	HP18350-ZL8-000 In stock	Arrester Comp. Spark	£39.11 £32.59
17	HP90055-ZE1-000 In stock	Self Tapping Screw 4 X 6	£1.57 £1.31
