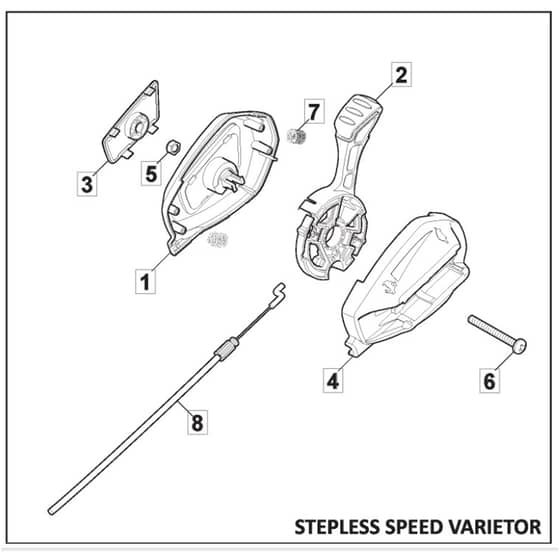

SP485 HW V - 2017-2018 - 294503038/M16 - Mountfield Rotary Mower Controls Diagram

SP485 HW V - 2017-2018 - 294503038/M16 - Mountfield Rotary Mower Controls Diagram
SP485 HW V - 2017-2018 - 294503038/M16 - Mountfield Rotary Mower Controls Diagram

Description

Mountfield SP485 HW V Parts Diagram

Product Name - SP 485 HW V

Model Year - 2017-2018

Model Type - MP1 504 WSV

Art.N - 294503038/M16

Engine Model - Honda GCV 160

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 External Protection
External Protection
MO322722817/0
Available to backorder
External Protection
£8.74 £7.28

  2 Variator Lever Assy
Variator Lever Assy
MO381007227/0
Available to backorder
Variator Lever Assy
£6.34 £5.28

  3 Cap
Cap
MO322820086/0
Available to backorder
Cap
£2.81 £2.34

  4 Internal Protection
Internal Protection
MO322722816/0
Available to backorder
Internal Protection
£8.94 £7.45

  5 Nut
Nut
MO112154510/0
In stock
Nut
£1.55 £1.29

  6 Screw
Screw
MO112727786/0
Available to backorder
Screw
£1.97 £1.64

  7 Spring
Spring
MO122450487/0
Available to backorder
Spring
£1.55 £1.29

  8 Variator Cable
Variator Cable
MO381030117/0
In stock
Variator Cable
£22.38 £18.65


Description

Mountfield SP485 HW V Parts Diagram

Product Name - SP 485 HW V

Model Year - 2017-2018

Model Type - MP1 504 WSV

Art.N - 294503038/M16

Engine Model - Honda GCV 160
