SP485 HW V - 2017-2018 - 294503038/M16 - Mountfield Rotary Mower Cam Pulley Diagram

Description

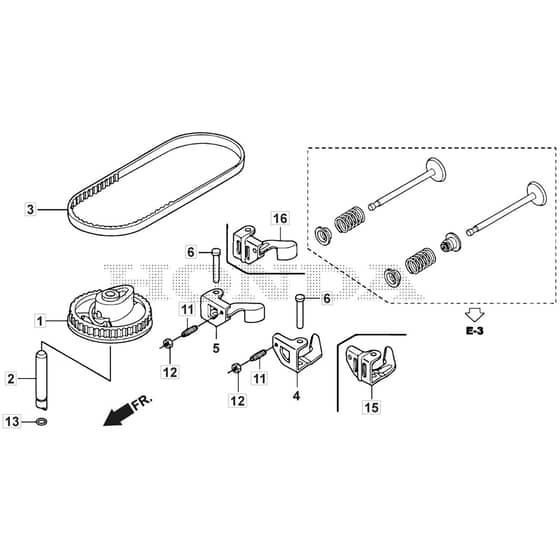

Mountfield SP485 HW V Parts Diagram

Product Name - SP 485 HW V

Model Year - 2017-2018

Model Type - MP1 504 WSV

Art.N - 294503038/M16

Engine Model - Honda GCV 160

	Part No.	Details
1	HP14320-Z8D-000 Available to backorder	Pulley Comp. Camshaft	£21.77 £18.14
2	HP14324-Z8B-000 Available to backorder	Shaft. Cam Pulley	£12.12 £10.10
3	HP14400-Z8B-003 Available to backorder	Belt. Timing (84Hu6 G-200)	£39.89 £33.24
6	HP14461-ZL8-000 Available to backorder	Shaft. Rocker Arm	£3.10 £2.58
11	HP90012-333-000 Available to backorder	Screw. Tappet Adjusting	£5.03 £4.19
12	HP90206-001-000 Available to backorder	Nut. Tappet Adjusting	£5.05 £4.21
13	HP91301-ZM0-V31 Available to backorder	O-Ring. 6.8X1.9 (Arai)	£2.71 £2.26
15	HP14431-Z0J-000 Available to backorder	Arm. In. Valve Rocker	£8.16 £6.80
16	HP14441-Z0J-000 Available to backorder	E X Haust Valve Rocker Arm	£8.16 £6.80
