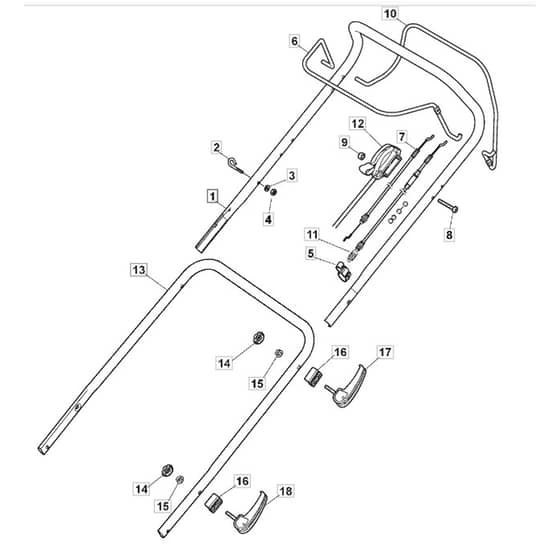

SP485 HW V - 2016 - 294523038/M16 - Mountfield Rotary Mower Upper Handle Diagram

SP485 HW V - 2016 - 294523038/M16 - Mountfield Rotary Mower Upper Handle Diagram
SP485 HW V - 2016 - 294523038/M16 - Mountfield Rotary Mower Upper Handle Diagram

Description

Mountfield SP485 HW V Parts Diagram

Product Name - SP 485 HW V

Model Year - 2016

Model Type - MP1 504 WSV

Art.N - 294523038/M16

Engine Model - Honda GCV 160

Be the first to review this product
0 product questions
Ref. Img. Part No. Details
  1 Handle MO381006739/2
Handle
 Out of stock
£22.21 £18.51

  1 Handle MO381006745/3
Handle
 Out of stock
£40.63 £33.86

  2 Guide Spring MO122430313/0
Guide Spring
 In stock
£3.60 £3.00

  3 Washer MO112521330/0
Washer
 Out of stock
£1.49 £1.24

  5 Conduit Clip MO118390020/0
Conduit Clip
 In stock
£1.75 £1.46

  6 Lever. Engine Brake Black Black MO181003363/1
Lever. Engine Brake Black Black
 Out of stock
£13.56 £11.30

  7 Cable. Thread Engine Brake MO181030106/0
Cable. Thread Engine Brake
 Out of stock
£12.60 £10.50

  8 Screw MO112727788/0
Screw
 Out of stock
£1.49 £1.24

  9 Nut MO112154510/0
Nut
 In stock
£1.63 £1.36

  10 Drive Control Lever Black MO181003364/0
Drive Control Lever Black
 In stock
£13.92 £11.60

  11 Clutch Cable MO381030104/1
Clutch Cable
 In stock
£17.20 £14.33

  12 Throttle Cable MO181005539/0
Throttle Cable
 In stock
£21.48 £17.90

  13 Lower Handle MO381007563/1
Lower Handle
 Out of stock
£35.21 £29.34

  14 Black Knob MO322399835/0
Black Knob
 Out of stock
£1.90 £1.58

  15 Nut MO122131750/0
Nut
 In stock
£1.90 £1.58

  16 Handle Fixing Washer MO322680016/0
Handle Fixing Washer
 In stock
£1.90 £1.58

  17 Locking Handle Lever Black MO381103360/0
Locking Handle Lever Black
 Out of stock
£5.04 £4.20

  18 Locking Handle Lever Use 381103359.1 MO381103359/1
Locking Handle Lever Use 381103359.1
 In stock
£4.56 £3.80


Description

Mountfield SP485 HW V Parts Diagram

Product Name - SP 485 HW V

Model Year - 2016

Model Type - MP1 504 WSV

Art.N - 294523038/M16

Engine Model - Honda GCV 160
