SP485 HW V - 2016 - 294523038/M16 - Mountfield Rotary Mower Carburettor Diagram

Name: SP485 HW V - 2016 - 294523038/M16 - Mountfield Rotary Mower Carburettor Diagram
SKU: sp485_hw_v_294523038_m16_carburettor-group
Price: 1.96 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

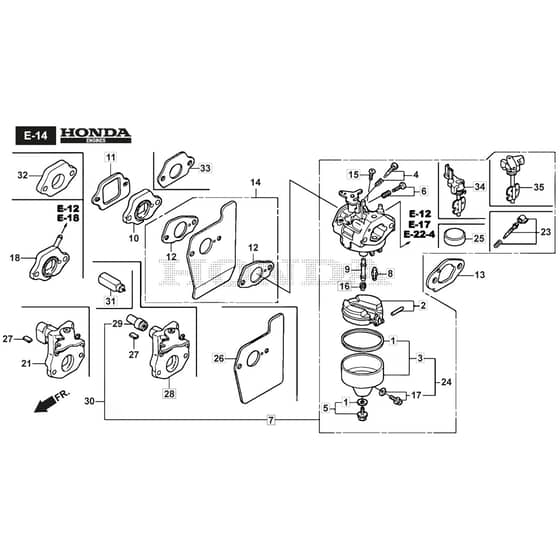

SP485 HW V - 2016 - 294523038/M16 - Mountfield Rotary Mower Carburettor Diagram

Description

Mountfield SP485 HW V Parts Diagram

Product Name - SP 485 HW V

Model Year - 2016

Model Type - MP1 504 WSV

Art.N - 294523038/M16

Engine Model - Honda GCV 160

Be the first to review this product

0 product questions

	Part No.	Details
1	HP16010-883-015 In stock	Packing Set	£12.22 £10.18
2	HP16013-ZL1-003 Available to backorder	Float Set	£36.11 £30.09
3	HP16015-Z0L-881 Available to backorder	Chamber Set. Float	£57.41 £47.84
5	HP16028-ZK7-S91 Available to backorder	Screw Set	£14.59 £12.16
6	HP16029-ZG0-901 Available to backorder	Screw Set (Throttle Stop)	£14.17 £11.81
7	HP16100-Z8B-871 Available to backorder	Carburetor Assy. (Bb75G A)	£99.24 £82.70
7	HP16100-Z8B-901 Available to backorder	Carburetor Assy. (Bb76A A)	£119.88 £99.90
7	HP16100-Z0L-N21 Available to backorder	Carburetor Assy. (Bb76F A)	£114.72 £95.60
8	HP16155-ZM0-013 In stock	Valve. Float	£46.32 £38.60
9	HP16166-Z2C-003 Available to backorder	Nozzle. Main	£41.70 £34.75
9	HP16166-Z8B-901 Available to backorder	Nozzle. Main	£44.57 £37.14
11	HP16212-ZL8-000 In stock	Packing. Insulator	£2.86 £2.38
15	HP93500-050-060H Available to backorder	Screw. Pan. 5X6	£2.35 £1.96
16	HP99101-1240550 Available to backorder	Jet. Main. #55	£12.22 £10.18
16	HP99101-1240620 Available to backorder	Jet. Main. #62	£12.22 £10.18
16	HP99101-1240580 Available to backorder	Jet. Main. #58	£12.22 £10.18
16	HP99101-1240600 Available to backorder	Jet. Main. #60	£12.22 £10.18
34	HP16044-Z8B-901 Available to backorder	Choke Set Assy	£71.04 £59.20
