SP46 LS - 2019-2020 - 2L0486548/M19 - Mountfield Rotary Mower Wheels Diagram

Name: SP46 LS - 2019-2020 - 2L0486548/M19 - Mountfield Rotary Mower Wheels Diagram
SKU: sp46_ls_2l0486548_m19_wheels-group
Price: 1.29 GBP
Availability: InStock

Part No. sp46_ls_2l0486548_m19_wheels-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

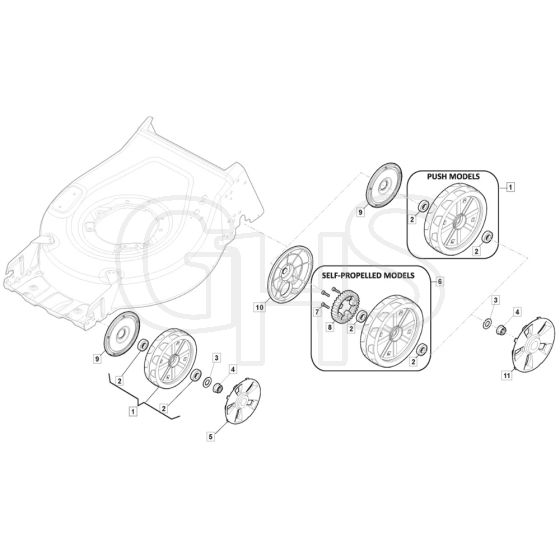

SP46 LS - 2019-2020 - 2L0486548/M19 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield SP46 LS Parts Diagram

Product Name - SP46 LS

Model Year - 2019-2020

Model Type - CP1 484 WSE

Art.N - 2L0486548/M19

Engine Model - ST 170 LS OHV Autochoke

	Part No.	Details
1	MO381007483/2 Available to backorder	Wheel Ø 200	£18.43 £15.36
2	MO119216035/0 In stock	Bearing	£3.52 £2.93
3	MO112521350/0 In stock	Washer	£1.55 £1.29
4	MO112155000/0 In stock	Nut	£1.55 £1.29
5	MO322110643/0 In stock	Hub Cap Grey Grey	£2.53 £2.11
6	MO381007479/2 In stock	Wheel Ø 280	£33.79 £28.16
7	MO112728706/0 In stock	Screw	£1.60 £1.33
8	MO381007472/2 In stock	Wheels Crown Only for Self Propelled Models	£37.94 £31.62
9	MO322600145/0 Available to backorder	Protection. Wheel As Optional (4 for TS - 2 for TR)	£1.70 £1.42
10	MO322600240/0 Available to backorder	Protection. Wheel Only for Self Propelled Models	£5.34 £4.45
11	MO322110644/0 Available to backorder	Avio Hub Cap D.280.300 [Grey]	£3.38 £2.82
