SP46 LS - 2019-2020 - 2L0486548/M19 - Mountfield Rotary Mower Deck Diagram

Name: SP46 LS - 2019-2020 - 2L0486548/M19 - Mountfield Rotary Mower Deck Diagram
SKU: sp46_ls_2l0486548_m19_deck-group
Price: 1.17 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP46 LS - 2019-2020 - 2L0486548/M19 - Mountfield Rotary Mower Deck Diagram

Description

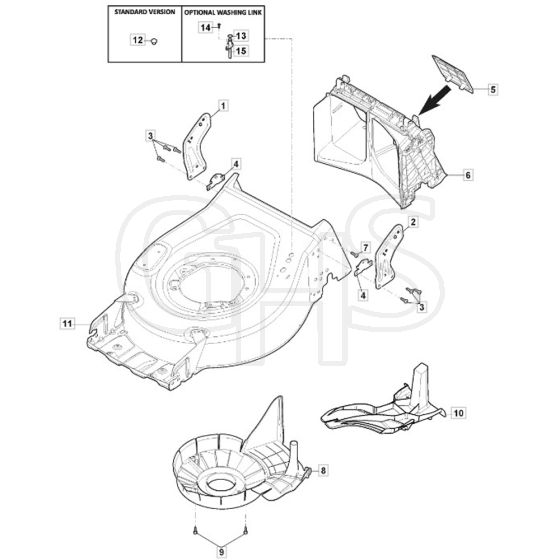

Mountfield SP46 LS Parts Diagram

Product Name - SP46 LS

Model Year - 2019-2020

Model Type - CP1 484 WSE

Art.N - 2L0486548/M19

Engine Model - ST 170 LS OHV Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381005195/2 Available to backorder	Bracket-Rh	£7.25 £6.04
2	MO381005197/2 Available to backorder	Left Bracket Black	£7.25 £6.04
3	MO112727807/0 In stock	Screw	£1.55 £1.29
4	MO322545213/0 Available to backorder	Plate	£1.97 £1.64
5	MO322600310/0 Available to backorder	Rear Door Only for Electric Start Engine with ION battery	£5.06 £4.22
6	MO322108329/0 Available to backorder	Rear Conveyor	£19.38 £16.15
7	MO112728697/0 In stock	Screw	£1.55 £1.29
8	MO322060242/2 In stock	Belt Protection As Optional	£11.53 £9.61
9	MO112728903/0 In stock	Screw As Optional	£1.40 £1.17
10	MO322140250/1 Available to backorder	Mulching Deflector As Optional	£12.95 £10.79
11	MO381005027/0 Available to backorder	Grey Deck	£147.80 £123.17
12	MO322820077/1 Available to backorder	Cap	£1.55 £1.29
13	MO119035000/0 Available to backorder	Or Ring NOT for battery models	£5.06 £4.22
14	MO112728450/0 In stock	Screw NOT for battery models	£1.55 £1.29
15	MO322034002/0 Available to backorder	Washing Connection	£1.69 £1.41
