SP46 H - 2016-2017 - 295496038/SF - Mountfield Rotary Mower Height Adjusting Diagram

Description

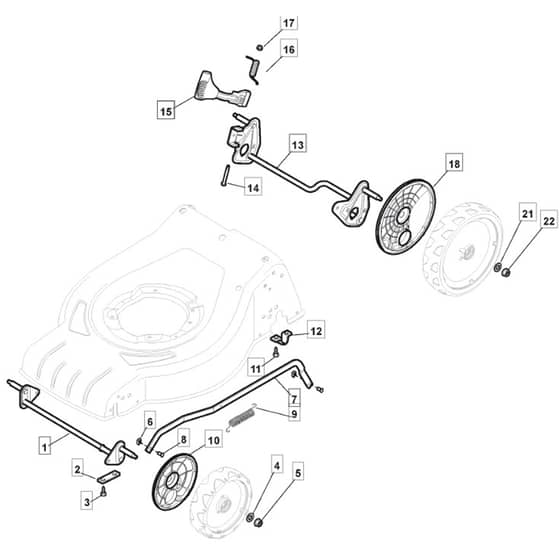

Mountfield SP46 H Parts Diagram

Product Name - SP46H

Model Year - 2016-2017

Model Type - CSL 484 WS

Art.N - 295496038/SF

Engine Model - Honda GCV 160 Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302821/0 Available to backorder	Front Wheel Axle To S.N 20BA2WBH054315	£26.69 £22.24
1	MO381302821/1 Available to backorder	Front Wheel Axle From S.N 20BA2WBH054316	£27.04 £22.53
2	MO322545142/0 Available to backorder	Plate	£1.55 £1.29
6	MO112436050/0 In stock	Plate	£1.82 £1.52
7	MO322869673/1 Available to backorder	Rod. Height Adjustment From S.N 20BA2WBH070583	£15.62 £13.02
7	MO322869673/0 Available to backorder	Rod. Height Adjustment To S.N 20BA2WBH070094	£15.37 £12.81
8	MO122519820/0 Available to backorder	Pin	£2.12 £1.77
9	MO122446193/0 Available to backorder	Spring	£4.61 £3.84
10	MO322600247/0 Available to backorder	Protection. Wheel As Optional	£8.18 £6.82
11	MO112728698/0 Available to backorder	Screw	£1.55 £1.29
12	MO322545152/0 In stock	Plate	£1.55 £1.29
13	MO381302817/0 Available to backorder	Rear Wheel Axle To S.N 20BA2WBH061216	£29.80 £24.83
13	MO381302817/1 Available to backorder	Rear Wheel Axle From S.N 20BA2WBH061217	£28.56 £23.80
14	MO122534131/0 Available to backorder	Pin	£1.55 £1.29
15	MO381003357/0 Available to backorder	Wheels Rear Adj. Lever for others brand models To S.N 20BA2WBH076280	£6.36 £5.30
15	MO381003457/0 Available to backorder	Wheels Rear Adj. Lever for STIGA brand models To S.N 20BA2WBH073718	£13.50 £11.25
16	MO122446192/0 Available to backorder	Spring	£2.12 £1.77
17	MO112154510/0 In stock	Nut	£1.55 £1.29
18	MO322600205/1 Available to backorder	Protection	£3.79 £3.16
21	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
22	MO112155000/0 In stock	Low Self-Locking Nut M8	£1.55 £1.29
