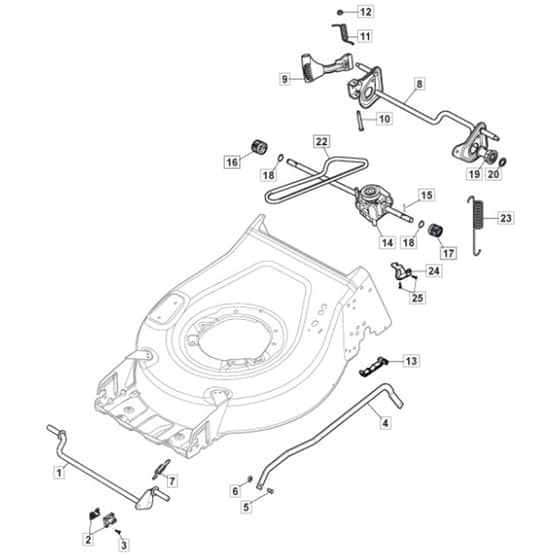

SP46 - 2020-2022 - 2L0482148/MTF - Mountfield Rotary Mower Height Adjusting Diagram

Name: SP46 - 2020-2022 - 2L0482148/MTF - Mountfield Rotary Mower Height Adjusting Diagram
SKU: sp46_2l0482148_mtf_height_adjusting-group
Price: 1.23 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP46 - 2020-2022 - 2L0482148/MTF - Mountfield Rotary Mower Height Adjusting Diagram

Description

Mountfield SP46 Parts Diagram

Product Name - SP 46

Model Year - 2020-2022

Model Type - CP1 484 S

Art.N - 2L0482148/MTF

Be the first to review this product

0 product questions

	Part No.	Details
1	MO381302935/1 Out of stock	Axle. Front Wheels	£29.28 £24.40
2	MO322785305/1 Out of stock	Support	£2.54 £2.12
3	MO112728697/0 In stock	Screw	£1.48 £1.23
4	MO322869733/1 Out of stock	Rod. Height Adjustment	£14.77 £12.31
5	MO122519823/0 In stock	Pin	£2.15 £1.79
6	MO112000930/0 In stock	Benzing Ring	£1.48 £1.23
7	MO122450494/0 Out of stock	Spring	£4.55 £3.79
8	MO381302851/1 Out of stock	Rear Wheel Axle	£43.28 £36.07
9	MO381003356/1 Out of stock	Wheels Rear Adj. Lever	£5.60 £4.67
10	MO122534131/0 Out of stock	Pin	£1.48 £1.23
11	MO122446192/0 Out of stock	Spring	£2.00 £1.67
12	MO112154510/0 In stock	Nut	£1.48 £1.23
13	MO322785500/0 In stock	Support	£1.79 £1.49
14	MO181003134/0 Out of stock	Gear Box	£93.73 £78.11
15	MO122753000/0 In stock	Pin	£1.48 £1.23
16	MO322570138/0 In stock	Right Pinion	£7.03 £5.86
17	MO122570120/1 In stock	Left Pinion	£7.03 £5.86
18	MO112608600/0 In stock	Seeger	£1.48 £1.23
19	MO322042066/0 Out of stock	Bushing	£1.52 £1.27
20	MO112521371/0 Out of stock	Washer	£1.48 £1.23
22	MO135063800/0 In stock	Trapezoidal Belt	£9.11 £7.59
22	MO1111-9123-01 In stock	Drive Belt Stiga Packed into 135063800.0	£12.59 £10.49
23	MO122430254/0 Out of stock	Spring	£3.89 £3.24
24	MO322778473/1 Out of stock	Bracket	£1.66 £1.38
25	MO112728904/0 In stock	Self-Tapping Screw K60 X 22 Wn1451	£1.48 £1.23
