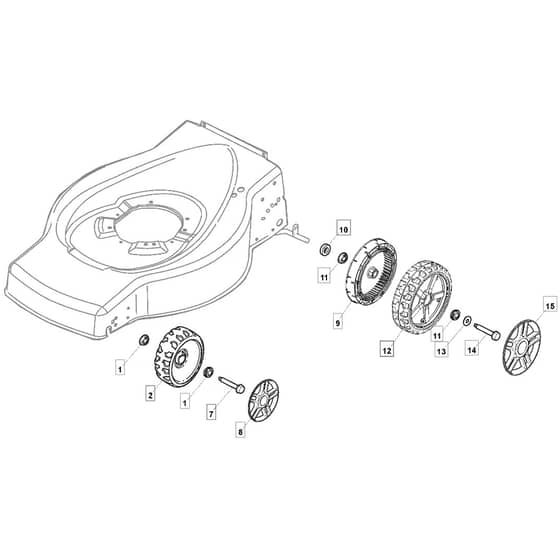

SP454 - 2010-2013 - 299274643/BQ - Mountfield Rotary Mower Wheels Diagram

Name: SP454 - 2010-2013 - 299274643/BQ - Mountfield Rotary Mower Wheels Diagram
SKU: sp454_299274643_bq_wheels-group
Price: 1.16 GBP
Availability: InStock

Part No. sp454_299274643_bq_wheels-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP454 - 2010-2013 - 299274643/BQ - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield SP454 Parts Diagram

Product Name - SP 454

Model Year - 2010-2013

Model Type - ESL 464 TR

Art.N - 299274643/BQ

	Part No.	Details
2	MO322686091/1 In stock	Wheel	£6.77 £5.64
7	MO122524341/0 In stock	Pin From 01-9-2006	£7.50 £6.25
7	MO122524321/0 Available to backorder	Pin To 31-8-2006	£5.06 £4.22
8	MOREPLA0000075 In stock	Hub Cap Grey Grey	£5.38 £4.48
9	MO322120109/0 Available to backorder	Wheels Crown	£6.62 £5.52
10	MO322170622/0 Available to backorder	Spacer From 01-9-2006	£1.39 £1.16
10	MO112521370/0 Available to backorder	Washer To 31-8-2006	£1.63 £1.36
11	MO122034508/0 In stock	Bushing	£1.55 £1.29
12	MO381007468/0 In stock	Wheel Ø 190 From 01-9-2016	£15.34 £12.78
12	MO381007355/0 Available to backorder	Wheel To 31-8-2006	£20.69 £17.24
13	MO112523050/0 In stock	Washer	£1.57 £1.31
14	MO112735599/0 In stock	Screw	£1.55 £1.29
15	MO322110492/0 Available to backorder	Beta Hub Cap D.210 [Grey]	£2.29 £1.91
