SP42R - 2014-2015 - 299439043/BQ - Mountfield Rotary Mower Deck Diagram

Name: SP42R - 2014-2015 - 299439043/BQ - Mountfield Rotary Mower Deck Diagram
SKU: sp42r_299439043_bq_deck-group
Price: 1.29 GBP
Availability: InStock

Part No. sp42r_299439043_bq_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP42R - 2014-2015 - 299439043/BQ - Mountfield Rotary Mower Deck Diagram

Description

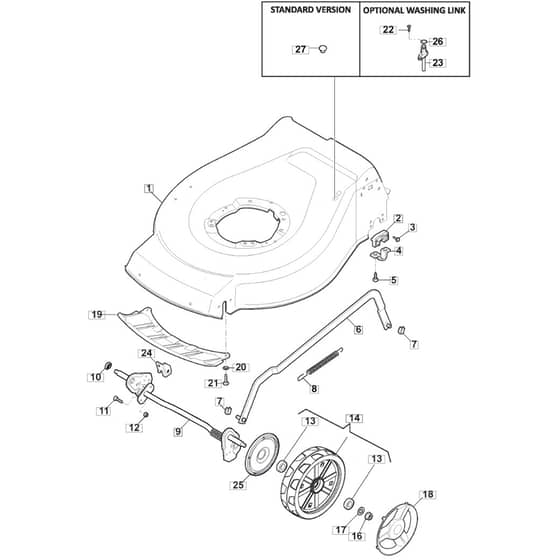

Mountfield SP42R Parts Diagram

Product Name - SP42 R

Model Year - 2014-2015

Model Type - NTL 434 TR-R

Art.N - 299439043/BQ

	Part No.	Details
1	MO381004724/0 Available to backorder	Red Deck	£175.97 £146.64
2	MO322785304/1 Available to backorder	Support	£2.24 £1.87
4	MO322545154/0 Available to backorder	Plate	£1.55 £1.29
5	MO112728697/0 In stock	Screw	£1.55 £1.29
6	MO381002052/0 Available to backorder	Rod	£39.42 £32.85
7	MO112436050/0 In stock	Plate	£1.84 £1.53
8	MO122446193/0 In stock	Spring	£4.78 £3.98
9	MO381302927/0 Available to backorder	Axle	£32.38 £26.98
10	MO122171002/0 Available to backorder	Spacer	£1.55 £1.29
11	MO112727803/0 Available to backorder	Screw	£1.63 £1.36
12	MO112154510/0 In stock	Nut	£1.55 £1.29
13	MO119216035/0 In stock	Bearing	£3.52 £2.93
14	MO381007448/1 Available to backorder	Wheel - Short Hub	£11.70 £9.75
16	MO112155000/0 In stock	Nut	£1.55 £1.29
17	MO112521350/0 In stock	Washer	£1.55 £1.29
18	MO322110636/0 In stock	Hub Cap Grey	£2.53 £2.11
19	MO322500108/0 In stock	Front Combi	£6.05 £5.04
20	MO112523000/1 In stock	Washer	£1.55 £1.29
21	MO112728124/0 Available to backorder	Screw	£1.63 £1.36
22	MO112728450/0 In stock	Screw Only With Muclhing	£1.55 £1.29
23	MO322034002/0 In stock	Washing Connection Only With Muclhing	£1.70 £1.42
24	MO325755031/2 Available to backorder	Bracket	£5.06 £4.22
25	MO322600247/0 Available to backorder	Protection. Wheel	£4.50 £3.75
26	MO119035000/0 Available to backorder	Or Ring	£5.06 £4.22
27	MO322820077/1 Available to backorder	Pvc Deck Cap	£1.55 £1.29
