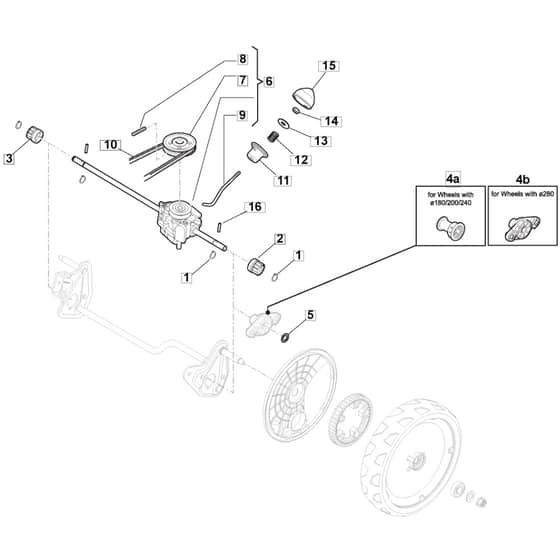

SP42 H - 2016-2017 - 295442038/SF - Mountfield Rotary Mower Transmission Diagram

Description

Mountfield SP42 H Parts Diagram

Product Name - SP42H

Model Year - 2016-2017

Model Type - CS 434 S

Art.N - 295442038/SF

Engine Model - Honda GCV 160 Autochoke

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112608600/0	Seeger	Out of stock	£1.63 £1.36
2	MO122570120/1	Left Pinion	In stock	£6.72 £5.60
3	MO322570138/0	Right Pinion	In stock	£6.72 £5.60
4	MO322042066/0	Bushing 4A For wheels ø180.200.240	Out of stock	£1.75 £1.46
5	MO112521371/0	Washer	Out of stock	£1.49 £1.24
6	MO181003092/0	Gear Box	In stock	£66.12 £55.10
7	MO122601909/0	Pulley	Out of stock	£5.16 £4.30
8	MO112645705/0	Elastic Pin ø5X32	Out of stock	£1.63 £1.36
9	MO122033283/0	Adjustment Rod	Out of stock	£4.20 £3.50
10	MO135063710/0	Belt	Out of stock	£7.80 £6.50
11	MO122041957/1	Bushing	Out of stock	£1.49 £1.24
12	MO122450063/0	Spring	Out of stock	£1.49 £1.24
13	MO322680009/0	Washer	Out of stock	£1.75 £1.46
14	MO112154510/0	Nut	In stock	£1.63 £1.36
15	MO122110230/0	Hub Cover	In stock	£1.63 £1.36
16	MO122753000/0	Pin D.5.2 X 25.65	In stock	£1.63 £1.36
