SP414 - 2011-2013 - 297412143/BQ - Mountfield Rotary Mower Deck Diagram

Name: SP414 - 2011-2013 - 297412143/BQ - Mountfield Rotary Mower Deck Diagram
SKU: sp414_297412143_bq_deck-group
Price: 1.16 GBP
Availability: InStock

Part No. sp414_297412143_bq_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP414 - 2011-2013 - 297412143/BQ - Mountfield Rotary Mower Deck Diagram

Description

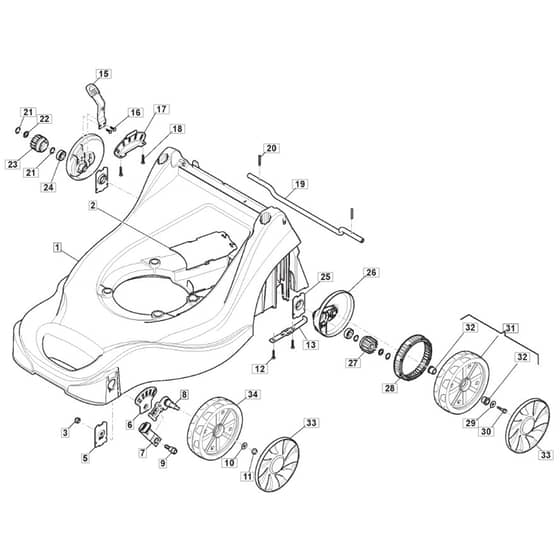

Mountfield SP414 Parts Diagram

Product Name - SP 414

Model Year - 2011-2013

Model Type - EP 414 TR

Art.N - 297412143/BQ

	Part No.	Details
1	MO322066752/0 Available to backorder	Red Deck Dark Red	£76.72 £63.93
1	MO322066750/0 Available to backorder	Red Deck	£77.44 £64.53
2	MO322060245/0 Available to backorder	Belt Protection	£3.25 £2.71
3	MO112154210/0 Available to backorder	Nut	£1.70 £1.42
5	MO322785361/0 Available to backorder	Support. Wheel	£2.24 £1.87
6	MO322735599/0 Available to backorder	Sector. Height Adjustment	£4.08 £3.40
7	MO381003352/0 Available to backorder	Lever. Height Adjustment	£7.31 £6.09
8	MO381005163/0 Available to backorder	Wheel Support	£7.02 £5.85
9	MO122519811/0 Available to backorder	Pin	£1.55 £1.29
10	MO112521350/0 In stock	Washer	£1.55 £1.29
11	MO112155000/0 In stock	Nut	£1.55 £1.29
13	MO322608563/0 Available to backorder	Deck Rear Stiffening	£2.69 £2.24
15	MO381003353/0 Available to backorder	Lever. Height Adjustment	£8.00 £6.67
16	MO112728689/0 In stock	Screw	£1.39 £1.16
17	MO322735601/0 Available to backorder	Sector. Height Adjustment	£2.94 £2.45
18	MO112728690/0 Available to backorder	Screw	£1.63 £1.36
19	MO122033417/0 Available to backorder	Rear Wheel Axle	£16.13 £13.44
20	MO122753001/0 Available to backorder	Pin	£1.63 £1.36
21	MO112608600/0 In stock	Seeger	£1.55 £1.29
22	MO112521370/0 Available to backorder	Washer	£1.63 £1.36
23	MO322570135/0 In stock	Right Pinion	£3.79 £3.16
24	MO119216035/0 In stock	Bearing	£3.52 £2.93
25	MO322785379/0 Available to backorder	Support	£2.24 £1.87
26	MO322600203/0 Available to backorder	Protection. Wheel	£5.34 £4.45
27	MO322570136/0 In stock	Left Pinion	£3.79 £3.16
28	MO322120118/0 In stock	Traction Crown	£10.98 £9.15
29	MO112523040/0 In stock	Washer	£1.55 £1.29
30	MO112735592/0 Available to backorder	Screw	£1.97 £1.64
31	MO381007475/0 In stock	Wheel	£6.47 £5.39
32	MO322034516/0 Available to backorder	Bushing	£1.63 £1.36
33	MO322110642/0 In stock	Hub Cap Grey	£2.24 £1.87
34	MO322686100/0 In stock	Delta Wheel D.175	£6.32 £5.27
