SP41 - 2021-2023 - 297412043/M21 - Mountfield Rotary Mower Crankshaft Diagram

Description

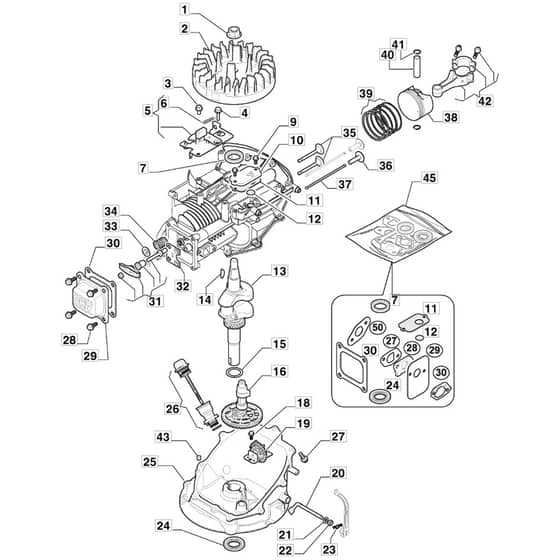

Mountfield SP41 Parts Diagram

Product Name - SP 41

Model Year - 2021-2023

Model Type - EP 414 TR

Art.N - 297412043/M21

Engine Model - ST120 OHV Autochoke

	Part No.	Details
1	MO118550336/0 Available to backorder	Nut	£6.05 £5.04
2	MO118552512/0 Available to backorder	Flywheel Ass.Y	£80.11 £66.76
3	MO118551277/0 Available to backorder	Bolt	£1.33 £1.11
4	MO112791500/0 Available to backorder	Screw (also 27)	£1.63 £1.36
5	MO118551483/0 Available to backorder	Flywheel Brake.Stop Switch Assy	£39.42 £32.85
7	MO118550300/0 Available to backorder	Oil Seal	£7.25 £6.04
9	MO112789000/0 Available to backorder	Screw (also 18)	£1.63 £1.36
10	MO118550904/0 Available to backorder	Cover	£4.26 £3.55
11	MO118550903/0 Available to backorder	Breather Gasket	£3.24 £2.70
12	MO118550902/0 Available to backorder	Valve	£1.97 £1.64
13	MO118551488/0 Available to backorder	Crankshaft	£106.99 £89.16
14	MO118550288/0 Available to backorder	Woodruff Key	£6.20 £5.17
15	MO118550283/0 Available to backorder	Washer	£3.38 £2.82
16	MO118550890/0 Available to backorder	Camshaft Assy	£30.98 £25.82
19	MO118550888/0 Available to backorder	Speed Governor Assy	£16.61 £13.84
20	MO118550936/0 Available to backorder	Shaft. Governor Arm	£6.46 £5.38
22	MO118550935/0 Available to backorder	Oil Seal	£4.51 £3.76
23	MO118550856/0 Available to backorder	Lock Pin	£1.46 £1.22
24	MO118550379/0 In stock	Oil Seal	£6.77 £5.64
25	MO118551209/1 Available to backorder	Crankcase Cover	£78.85 £65.71
26	MO118550887/0 In stock	Tank Cap	£10.98 £9.15
28	MO118551276/0 Available to backorder	Bolt	£3.38 £2.82
29	MO118550891/0 Available to backorder	Cover Comp. Head	£13.44 £11.20
30	MO118550892/0 Available to backorder	Packing Head Cover	£3.24 £2.70
31	MO118550893/0 Available to backorder	Valve Arm Set	£13.15 £10.96
33	MO118550895/0 Available to backorder	Retainer	£4.51 £3.76
34	MO118550896/0 Available to backorder	Spring	£2.82 £2.35
35	MO118550910/0 Available to backorder	Valve Assy. Intake + Exhaust	£21.54 £17.95
36	MO118550291/0 Available to backorder	Valve Lifter Assy	£9.73 £8.11
37	MO118550912/0 Available to backorder	Push Rod	£7.18 £5.98
38	MO118552517/0 Available to backorder	Piston	£26.80 £22.33
39	MO118551445/0 Available to backorder	Piston. Ring Set	£27.04 £22.53
40	MO118550915/0 Available to backorder	Piston Pin	£5.34 £4.45
41	MO118550914/0 Available to backorder	Washer. Piston Pin	£1.55 £1.29
42	MO118551487/0 Available to backorder	Connecting Rod Assy	£39.42 £32.85
45	MO118550940/0 Available to backorder	Engine Gasket Set	£25.36 £21.13
