SP185 - 2017-2019 - 299264623/WX - Mountfield Rotary Mower Deck Diagram

Name: SP185 - 2017-2019 - 299264623/WX - Mountfield Rotary Mower Deck Diagram
SKU: sp185_299264623_wx_deck-group
Price: 1.29 GBP
Availability: InStock

Part No. sp185_299264623_wx_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP185 - 2017-2019 - 299264623/WX - Mountfield Rotary Mower Deck Diagram

Description

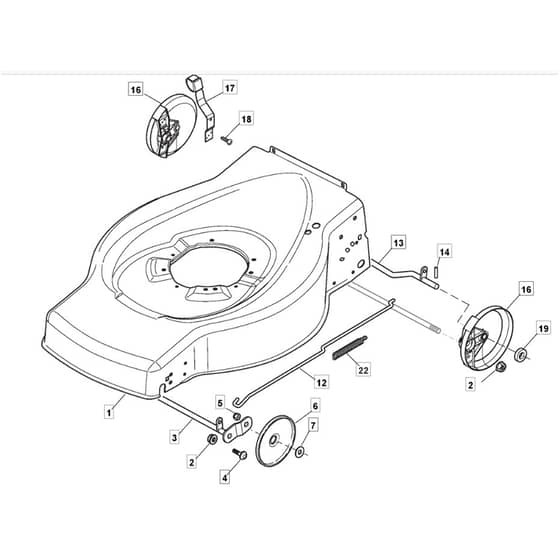

Mountfield SP185 Parts Diagram

Product Name - SP 185

Model Year - 2017-2019

Model Type - ESL 464 TR

Art.N - 299264623/WX

Engine Model - B&S 300 SERIES

	Part No.	Details
1	MO381002538/0 In stock	Red Deck	£109.79 £91.49
2	MO122131750/0 In stock	Nut	£1.97 £1.64
3	MO381000153/0 Available to backorder	Front Wheel Axle	£53.50 £44.58
4	MO112760600/1 Available to backorder	Screw	£2.24 £1.87
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO322600095/0 Available to backorder	Protection. Wheel	£1.63 £1.36
7	MO122671653/0 Available to backorder	Washer To 31-8-2006	£1.63 £1.36
7	MO325670011/0 Available to backorder	Antifriction Washer From 01-9-2006	£1.55 £1.29
12	MO122033317/0 Available to backorder	Adjustment Rod	£18.72 £15.60
13	MO122033393/0 Available to backorder	Rear Wheel Axle To 31-8-2006	£25.04 £20.87
13	MO381000159/0 Available to backorder	Rear Wheel Axle From 01-9-2006	£24.07 £20.06
14	MO122753001/0 Available to backorder	Pin	£1.63 £1.36
22	MO122446186/0 Available to backorder	Spring	£5.34 £4.45
