SP180 - 2013-2014 - 299274623/SF - Mountfield Rotary Mower Deck Diagram

Description

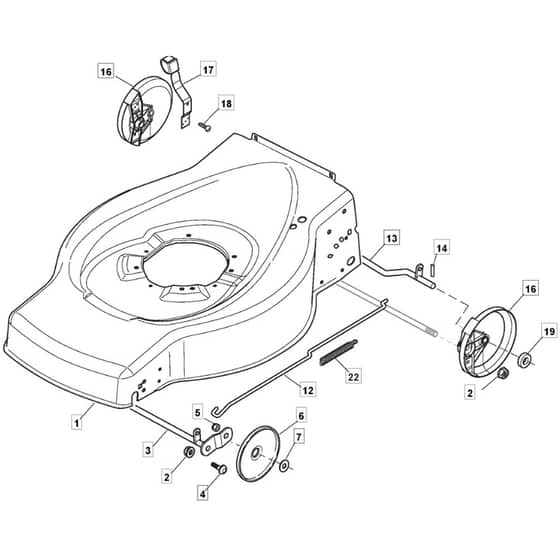

Mountfield SP180 Parts Diagram

Product Name - SP 180

Model Year - 2013-2014

Model Type - ESL 464 TR

Art.N - 299274623/SF

	Part No.	Details
1	MO381002538/0 In stock	Red Deck	£109.79 £91.49
2	MO122131750/0 In stock	Nut	£1.97 £1.64
3	MO381000153/0 Available to backorder	Front Wheel Axle	£53.50 £44.58
4	MO112760600/1 Available to backorder	Screw	£2.24 £1.87
5	MO112155000/0 In stock	Nut	£1.55 £1.29
6	MO322600095/0 Available to backorder	Protection. Wheel	£1.63 £1.36
7	MO325670011/0 Available to backorder	Antifriction Washer From 01-9-2006	£1.55 £1.29
7	MO122671653/0 Available to backorder	Washer To 31-8-2006	£1.63 £1.36
12	MO122033317/0 Available to backorder	Adjustment Rod	£18.72 £15.60
13	MO381000159/0 Available to backorder	Rear Wheel Axle From 01-9-2006	£24.07 £20.06
13	MO122033393/0 Available to backorder	Rear Wheel Axle To 31-8-2006	£25.04 £20.87
14	MO122753001/0 Available to backorder	Pin	£1.63 £1.36
16	MO322600106/1 Available to backorder	Protection	£6.77 £5.64
17	MO381003303/0 Available to backorder	Lever. Height Adjustment	£17.46 £14.55
18	MO112728689/0 In stock	Screw	£1.39 £1.16
19	MO122122202/0 In stock	Bearing	£1.84 £1.53
22	MO122446186/0 Available to backorder	Spring	£5.34 £4.45
