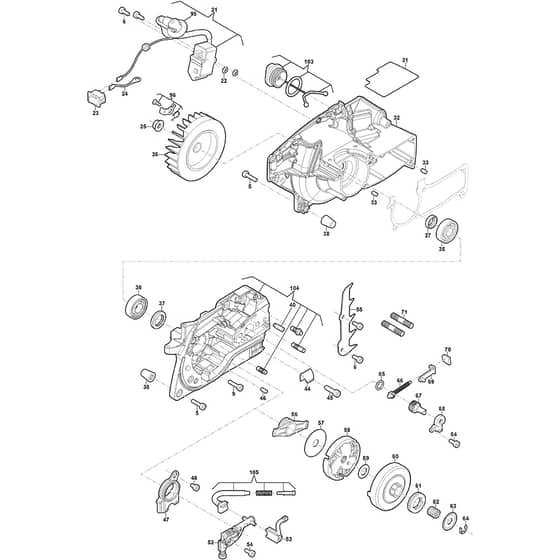

SP 466 - 2016-2022 - 240461502/S17 - Stiga Chainsaw Clutch Flywheel Diagram

Name: SP 466 - 2016-2022 - 240461502/S17 - Stiga Chainsaw Clutch Flywheel Diagram
SKU: sp_466_240461502_s17_clutch_flywheel-group
Price: 0.95 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP 466 - 2016-2022 - 240461502/S17 - Stiga Chainsaw Clutch Flywheel Diagram

Description

Stiga SP 466 Parts Diagram

Product Name - SP 466

Model Year - 2016-2022

Model Type - SP 466

Art.N - 240461502/S17

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
6	MO2135040 Available to backorder	Screw	£1.38 £1.15
9	MO2132550 Available to backorder	Screw	£1.40 £1.17
21	MO118804388/0 Available to backorder	Ignition Assy	£39.05 £32.54
22	MO118804369/0 Available to backorder	Washer	£1.14 £0.95
23	MO118804368/0 Available to backorder	Switch	£4.78 £3.98
25	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
27	MO118804350/0 Available to backorder	Oil Seal	£6.34 £5.28
31	MO118804341/0 Available to backorder	Heat Insulator Gasket	£1.69 £1.41
32	MO118804930/0 Available to backorder	Left Crankcase	£66.16 £55.13
35	MO3112040 Available to backorder	Ball Bearing	£14.64 £12.20
36	MO118804324/0 Available to backorder	Bearing	£10.56 £8.80
37	MO118804319/0 Available to backorder	Oil Seal	£4.37 £3.64
38	MO118804309/0 Available to backorder	Shock Absorber	£2.53 £2.11
40	MO118804587/0 Available to backorder	Nozzle	£2.68 £2.23
44	MO118804302/0 Available to backorder	Chain Guard	£2.12 £1.77
45	MO2132180 Available to backorder	Screw	£1.33 £1.11
46	MO118801158/0 Available to backorder	Pin	£1.33 £1.11
48	MO2135020 Available to backorder	Screw	£1.40 £1.17
53	MO118804299/0 Available to backorder	Oil Tube Outlet	£4.50 £3.75
54	MO2135180 Available to backorder	Screw	£1.40 £1.17
55	MO118804298/0 Available to backorder	Spike	£3.79 £3.16
56	MO118805079/0 Available to backorder	Worm	£22.38 £18.65
57	MO118804296/0 Available to backorder	Washer	£2.26 £1.88
58	MO118804295/0 Available to backorder	Clutch	£14.70 £12.25
59	MO118804293/0 Available to backorder	Washer	£1.82 £1.52
60	MO118804292/0 Available to backorder	Clutch Drum	£23.09 £19.24
61	MO118804291/0 Available to backorder	Gear	£7.88 £6.57
62	MO118550591/0 Available to backorder	Needle Bearing	£3.79 £3.16
63	MO118804290/0 Available to backorder	Washer	£1.82 £1.52
64	MO112000955/0 Available to backorder	Circlip Ø8	£1.33 £1.11
66	MO118804289/0 Available to backorder	Tensioner Screw	£4.50 £3.75
67	MO118804288/0 Available to backorder	Chain Tensioner	£9.00 £7.50
68	MO118804287/0 Available to backorder	Gear Cover	£2.04 £1.70
70	MO118804285/0 Available to backorder	Plate	£1.14 £0.95
71	MO118804284/1 Available to backorder	Bolt	£3.10 £2.58
95	MO118804522/0 Available to backorder	Spark Plug Cover Assy	£10.70 £8.92
96	MO118804356/1 Available to backorder	Starter Pawl Assy	£30.97 £25.81
103	MO118804252/0 Available to backorder	Oil Tank Cap Assy	£5.35 £4.46
105	MO118804250/0 Available to backorder	Oil Tube Assembly	£8.29 £6.91
