SP 460 - 2001-2007 - 12471300 - Stiga Chainsaw Engine Diagram

Description

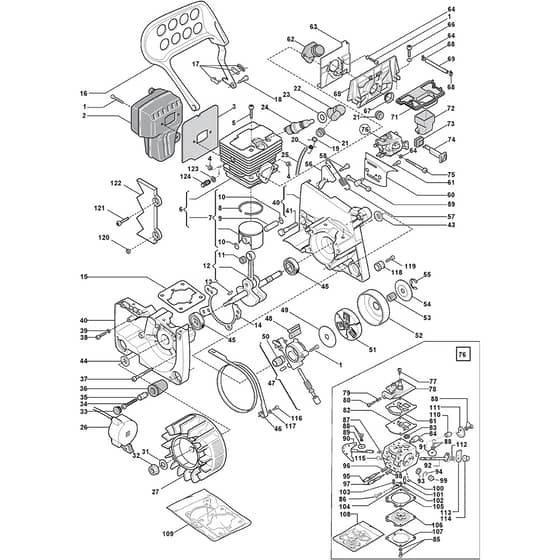

Stiga SP 460 Parts Diagram

Product Name - SP 460

Model Year - 2001-2007

Model Type -

Art.N - 12471300

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO2135030 Available to backorder	Screw	£1.40 £1.17
2	MO4121931 Available to backorder	Muffler Assy	£33.79 £28.16
3	MO3615180 Available to backorder	Muffler Gasket	£6.05 £5.04
4	MO2432040 Available to backorder	Nut	£1.33 £1.11
7	MO8540860 Available to backorder	Piston Assy Ø 42 Ø42	£71.29 £59.41
8	MO3123200 Available to backorder	Piston Ring Ø 42 Ø42	£6.36 £5.30
9	MO3158010 Available to backorder	Piston Pin Ø42	£4.22 £3.52
10	MO3356020 Available to backorder	Circlip	£6.92 £5.77
11	MO3116020 Available to backorder	Needle Bearing	£13.93 £11.61
13	MO3151010 Available to backorder	Flywheel Key	£1.33 £1.11
14	MO8724230 Available to backorder	Gasket Set	£11.36 £9.47
15	MO3724190 Available to backorder	Cylinder Gasket	£4.66 £3.88
16	MO4563940 Available to backorder	Hand Guard	£22.36 £18.63
17	MO4250720 Available to backorder	Chain Connection	£7.46 £6.22
18	MO1L3630660/1 Available to backorder	Pin	£6.48 £5.40
20	MO3657050 Available to backorder	Spark Plug Spring	£3.94 £3.28
21	MO3745130 Available to backorder	Grommet	£1.40 £1.17
22	MO3748880 Available to backorder	Spark Plug Cap	£2.03 £1.69
24	9494 In stock	Spark Plug	£3.72 £3.10
26	MO3210690 Available to backorder	Electronic Coil	£77.65 £64.71
27	MO4541220 Available to backorder	Flywheel	£63.05 £52.54
33	MO118800195/0 Available to backorder	Cap	£1.55 £1.29
34	MO2123030 Available to backorder	Screw	£1.33 £1.11
36	MO3744250 Available to backorder	Shock Absorber	£3.79 £3.16
37	MO2135130 Available to backorder	Screw	£1.40 £1.17
38	MO2132510 Available to backorder	Screw	£1.38 £1.15
39	MO2321050 Available to backorder	Washer	£1.40 £1.17
40	MO8520940 Available to backorder	Crankcase Assy	£152.77 £127.31
43	MO3121120 Available to backorder	Seal Ring	£19.12 £15.93
45	MO3112030 Available to backorder	Ball Bearing	£14.92 £12.43
46	MO3613760 Available to backorder	Brake Band	£8.17 £6.81
47	MO4251591 Available to backorder	Oil Pump Assy Replaced by 4251591 (worm 3180310 not included on 4251591)	£67.91 £56.59
48	MO3744730 Available to backorder	Oil Delivery Rubber	£4.08 £3.40
49	MO3613770 Available to backorder	Washer	£2.81 £2.34
52	MO4121960 Available to backorder	Clutch Drum	£29.56 £24.63
53	MO3114080 Available to backorder	Needle Bearing	£10.27 £8.56
55	MO112000955/0 Available to backorder	Circlip	£1.33 £1.11
56	MO4121970 Available to backorder	Chain Brake Lever	£7.31 £6.09
57	MO3654580 Available to backorder	Brake Spring	£26.35 £21.96
62	MO3744710 Available to backorder	Intake Manifold	£19.06 £15.88
63	MO4251730 Available to backorder	Flange Assy	£13.66 £11.38
64	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
66	MO2135040 Available to backorder	Screw	£1.38 £1.15
71	MO3781580 Available to backorder	Air Filter Housing	£9.16 £7.63
75	MO2135110 Available to backorder	Screw	£1.40 £1.17
76	MO4253650 Available to backorder	Carburettor	£133.81 £111.51
101	MO3630680 Available to backorder	Inlet Needle	£16.80 £14.00
108	MO8724090 Available to backorder	Diaphragm Gasket Set	£18.86 £15.72
116	MO2125010 Available to backorder	Screw	£1.40 £1.17
117	MO2312120 Available to backorder	Flat Washer	£1.40 £1.17
118	MO3749400 Available to backorder	Chain Guard	£1.33 £1.11
119	MO2135050 Available to backorder	Screw	£1.33 £1.11
121	MO2135010 Available to backorder	Screw	£1.33 £1.11
122	MO3L3614510/1 Available to backorder	Spike	£9.78 £8.15
124	MO3L4252080/2 Available to backorder	Ass.Decompressore	£35.21 £29.34
