SP 422 - 2008 - 15-4135-21 - Stiga Chainsaw Chainsaw Diagram

Description

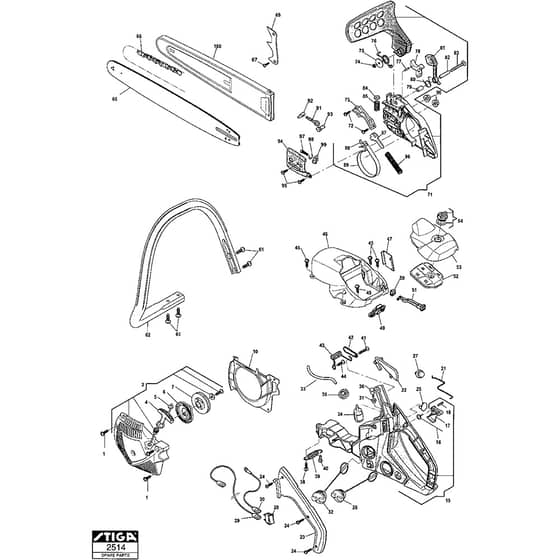

Stiga SP 422 Parts Diagram

Product Name - SP 422

Model Year - 2008

Model Type -

Art.N - 15-4135-21

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
4	MO3750067 Available to backorder	Starter Handle	£2.12 £1.77
6	MO118800278/0 Available to backorder	Starter Spring	£5.48 £4.57
7	MO323604003/0 Available to backorder	Starter Pulley	£5.48 £4.57
16	MO123430567/0 Available to backorder	Spring	£1.55 £1.29
17	MO118800207/0 Available to backorder	Throttle Lever	£1.33 £1.11
21	MO123835001/0 Available to backorder	Throttle Rod	£1.33 £1.11
22	MO323315064/0 Available to backorder	Safety Lever	£2.53 £2.11
26	MO383790003/0 Available to backorder	Oil Tank Cap	£3.79 £3.16
28	MO118800202/0 Available to backorder	Stop Switch	£1.82 £1.52
31	MO323275013/0 Available to backorder	Grommet	£1.38 £1.15
32	MO383790002/0 Available to backorder	Fuel Tank-Cap Ass.Y	£3.10 £2.58
33	MO323867003/0 Available to backorder	Fuel Line	£2.53 £2.11
35	MO323275011/0 Available to backorder	Grommet	£3.04 £2.53
36	MO183875001/0 Available to backorder	Breather Valve Ass.Y	£30.97 £25.81
39	MO123430568/0 Available to backorder	Spring	£7.63 £6.36
43	MO118800196/0 Available to backorder	Spring	£2.12 £1.77
45	MO123878024/0 Available to backorder	Screw	£1.40 £1.17
46	MO323087005/1 Available to backorder	Cylinder Cover Yellow	£7.50 £6.25
51	MO323315065/0 Available to backorder	Choke Lever	£1.55 £1.29
53	MO323090019/0 Available to backorder	Filter Cover Yellow	£7.74 £6.45
54	MO383593501/0 Available to backorder	Knob Assy	£3.79 £3.16
61	MO123878025/0 Available to backorder	Screw	£2.27 £1.89
62	MO118800197/0 Available to backorder	Handle	£17.33 £14.44
65	MO123900302/0 Available to backorder	Guide Bar 16"-.325"-0.050" 16"	£41.80 £34.83
66	4253 In stock	Chain 16Inch 325"-0.050" (1.3 mm)	£10.94 £9.12
71	MO383059013/0 Available to backorder	Clutch Ho. W.Br. Assy Yellow Inkl. pos 72-89	£64.75 £53.96
74	MO112154320/0 Available to backorder	Nut	£1.55 £1.29
77	MO123753001/0 Available to backorder	Pin	£1.33 £1.11
78	MO383315051/0 Available to backorder	Chain Brake Lever	£2.53 £2.11
80	MO123430572/0 Available to backorder	Spring	£2.53 £2.11
83	MO123878017/0 Available to backorder	Screw	£1.40 £1.17
87	MO323315067/0 Available to backorder	Lever	£4.37 £3.64
88	MO123753000/0 Available to backorder	Needle	£1.55 £1.29
91	MO118801067/0 Available to backorder	Screw	£1.69 £1.41
92	MO118801065/0 Available to backorder	Bar Adjusting Block	£1.33 £1.11
93	MO123796005/0 Available to backorder	Chain Tightener Block	£6.05 £5.04
94	MO118800257/0 Available to backorder	Bar Plate	£3.38 £2.82
95	MO123878023/0 Available to backorder	Screw	£1.69 £1.41
96	MO2670270 Available to backorder	Nut	£2.81 £2.34
100	MO4181307 Available to backorder	Chain Cover 16"	£6.05 £5.04
