SP 420 - 2009 - 224216002/S75 - Stiga Chainsaw Housing Diagram

Description

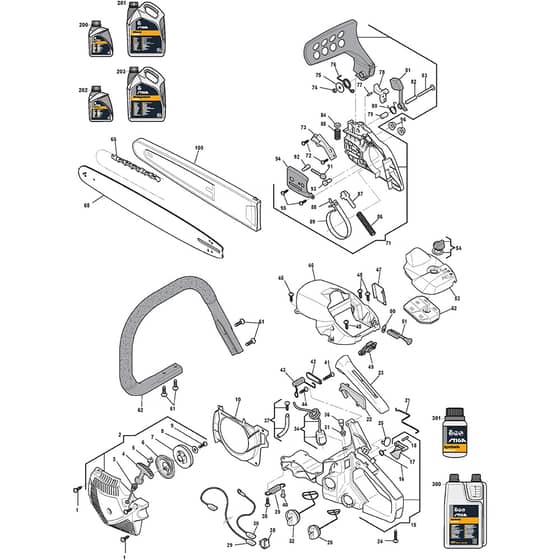

Stiga SP 420 Parts Diagram

Product Name - SP 420

Model Year - 2009

Model Type - P 420

Art.N - 224216002/S75

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
6	MO118800278/0 Available to backorder	Starter Spring	£5.48 £4.57
16	MO6995114 Available to backorder	Spring	£1.40 £1.17
17	MO6995264 Available to backorder	Throttle Lever	£2.40 £2.00
21	MO6995307 Available to backorder	Throttle Rod	£5.48 £4.57
22	MO123315096/0 Available to backorder	Safety Lever	£1.69 £1.41
26	MO6995273 Available to backorder	Oil Tank Cap	£5.09 £4.24
28	MO118800202/0 Available to backorder	Switch	£1.82 £1.52
31	MO6995232 Available to backorder	Grommet	£1.33 £1.11
32	MO6995260 Available to backorder	Fuel Tank-Cap Ass.Y	£10.40 £8.67
34	MO6995300 Available to backorder	Intake Filter Assy	£17.57 £14.64
36	MO183875001/0 Available to backorder	Breather Valve Assy	£30.97 £25.81
39	MO6995301 Available to backorder	Spring	£6.34 £5.28
43	MO6995302 Available to backorder	Spring	£4.22 £3.52
44	MO123878024/0 Available to backorder	Screw	£1.40 £1.17
51	MO323315062/0 Available to backorder	Air Lever	£3.38 £2.82
52	MO323220001/0 Available to backorder	Air Filter	£45.04 £37.53
53	MO323090012/0 Available to backorder	Filter Cover Yellow	£4.50 £3.75
62	MO6995286 Available to backorder	Handle	£20.40 £17.00
65	MO123900302/0 Available to backorder	Guide Bar 16"-.325"-0.050"	£41.80 £34.83
66	4253 In stock	Chain 16Inch	£10.94 £9.12
71	MO383059009/0 Available to backorder	Clutch Ho. W.Br. Assy Orange	£60.54 £50.45
78	MO383315050/0 Available to backorder	Chain Brake Lever	£20.69 £17.24
81	MO323080000/0 Available to backorder	Hand-Guard	£5.76 £4.80
87	MO323315061/0 Available to backorder	Lever	£9.58 £7.98
91	MO123878011/0 Available to backorder	Screw	£33.79 £28.16
92	MO123796004/0 Available to backorder	Chain Tightener Block	£15.07 £12.56
93	MO123510093/0 Available to backorder	Pin	£44.87 £37.39
96	MO6995097 Available to backorder	Nut	£1.63 £1.36
100	MO4181307 Available to backorder	Chain Cover 16Inch	£6.05 £5.04
200	MO1111-9228-01 Available to backorder	Chain Oil Mineral 1Lt	£9.30 £7.75
201	MO1111-9229-01 Available to backorder	Chain Oil Mineral 5Lt	£42.41 £35.34
202	MO1111-9276-01 Available to backorder	Chain Oil Biodegradable 1Lt	£10.99 £9.16
203	MO1111-9247-01 Available to backorder	Chain Oil Biodegradable 5Lt	£50.98 £42.48
300	MO1111-9230-01 Available to backorder	2 Stroke Synthetic Oil 1L Dozer	£14.50 £12.08
301	MO1111-9231-01 Available to backorder	2 Stroke Synthetic 0.1 Lt	£3.00 £2.50
