SP 410 - 2001-2007 - 15-4114-21 - Stiga Chainsaw Crankshaft and Cylinder Diagram

Name: SP 410 - 2001-2007 - 15-4114-21 - Stiga Chainsaw Crankshaft and Cylinder Diagram
SKU: sp_410_15_4114_21_crankshaft_and_cylinder-group
Price: 1.11 GBP
Availability: InStock

Part No. sp_410_15_4114_21_crankshaft_and_cylinder-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

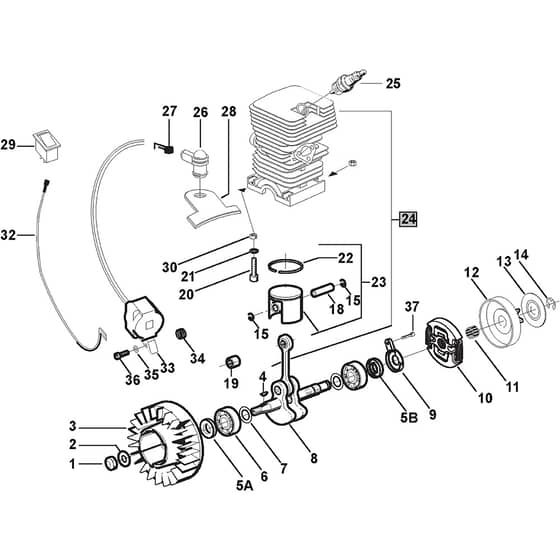

SP 410 - 2001-2007 - 15-4114-21 - Stiga Chainsaw Crankshaft and Cylinder Diagram

Description

Stiga SP 410 Parts Diagram

Product Name - SP 410

Model Year - 2001-2007

Model Type -

Art.N - 15-4114-21

Engine Model -

	Part No.	Details
3	MO3L4541210/1 Available to backorder	Flywheel	£52.51 £43.76
4	MO3151010 Available to backorder	Flywheel Key	£1.33 £1.11
5	MO3121071 Available to backorder	Seal Ring 5a	£4.78 £3.98
6	MO3112030 Available to backorder	Ball Bearing	£14.93 £12.44
8	MO383020003/0 Available to backorder	Crankshaft	£78.85 £65.71
11	MO3114190 Available to backorder	Needle Bearing	£7.66 £6.38
12	MO4122070 Available to backorder	Clutch Drum	£18.88 £15.73
14	MO112000955/0 Available to backorder	Circlip	£1.33 £1.11
15	MO3356050 Available to backorder	Circlip Ring	£1.39 £1.16
18	MO3158260 Available to backorder	Piston Pin	£6.64 £5.53
20	MO2135030 Available to backorder	Screw	£1.40 £1.17
21	MO2330020 Available to backorder	Washer	£1.39 £1.16
25	MO3210021 Available to backorder	Spark Plug	£5.06 £4.22
27	MO3657050 Available to backorder	Spark Plug Spring	£3.92 £3.27
29	MO118800202/0 Available to backorder	Stop Switch	£1.84 £1.53
30	MO2432040 Available to backorder	Nut	£1.33 £1.11
34	MO3654480 Available to backorder	Spring	£1.33 £1.11
