SP 40 - 2011-2012 - 228216002/RU - Stiga Chainsaw Engine Diagram

Description

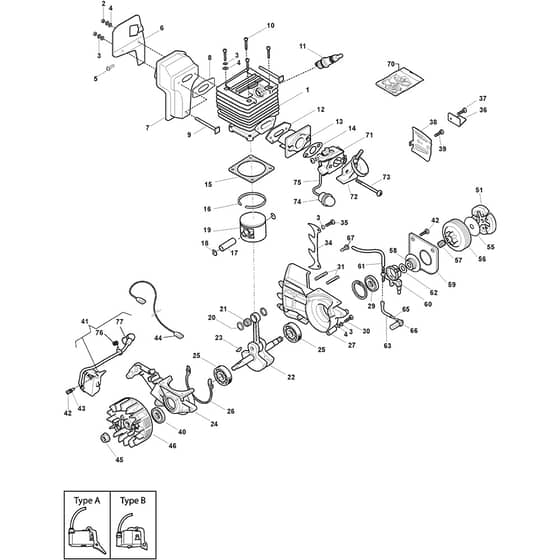

Stiga SP 40 Parts Diagram

Product Name - SP 40

Model Year - 2011-2012

Model Type - A 4000

Art.N - 228216002/RU

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118805100/0 Available to backorder	Cylinder Assy	£56.32 £46.93
2	MO2432040 Available to backorder	Nut	£1.33 £1.11
3	MO112581500/0 Available to backorder	Grower	£1.55 £1.29
4	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
6	MO118800243/0 Available to backorder	Cover Plate	£2.81 £2.34
7	MO118805103/0 Available to backorder	Muffler	£42.23 £35.19
8	MO118550583/0 Available to backorder	Muffler Gasket	£1.33 £1.11
9	MO118550584/0 Available to backorder	Screw	£3.52 £2.93
10	MO2135030 Available to backorder	Screw	£1.40 £1.17
11	9494 In stock	Spark Plug	£3.72 £3.10
12	MO118550585/0 Available to backorder	Intake Manifold Gasket	£1.33 £1.11
13	MO118550586/0 Available to backorder	Intake Manifold	£2.12 £1.77
14	MO118550587/0 Available to backorder	Carburettor Gasket	£1.33 £1.11
15	MO118550588/0 Available to backorder	Cylinder Base Gasket	£1.33 £1.11
16	MO118800182/0 Available to backorder	Piston Ring	£4.08 £3.40
17	MO118800244/0 Available to backorder	Piston Pin	£1.40 £1.17
18	MO118550590/0 Available to backorder	Washer. Piston Pin	£1.33 £1.11
19	MO118805102/0 Available to backorder	Piston	£16.19 £13.49
20	MO118800246/0 Available to backorder	Bearing	£2.40 £2.00
21	MO118550591/0 Available to backorder	Needle Bearing	£3.79 £3.16
22	MO118800247/0 Available to backorder	Crankshaft	£52.08 £43.40
23	MO118800959/0 Available to backorder	Flywheel Key	£1.55 £1.29
24	MO118800248/0 Available to backorder	Crank Case	£27.31 £22.76
25	MO3112030 Available to backorder	Ball Bearing	£14.92 £12.43
26	MO118800249/0 Available to backorder	Crankcase Gasket	£1.55 £1.29
27	MO118800250/0 Available to backorder	Crank Case	£32.38 £26.98
29	MO118550592/0 Available to backorder	Seal Ring	£2.26 £1.88
30	MO2135050 Available to backorder	Screw	£1.33 £1.11
31	MO118550593/0 Available to backorder	Screw	£1.40 £1.17
34	MO118550596/0 Available to backorder	Spike	£2.95 £2.46
35	MO2135180 Available to backorder	Screw	£1.40 £1.17
36	MO118550597/0 Available to backorder	Chain Guard	£1.69 £1.41
38	MO118550598/0 Available to backorder	Bar Plate	£1.97 £1.64
39	MO123878020/0 Available to backorder	Screw	£1.33 £1.11
40	MO118550599/0 Available to backorder	Seal Ring	£1.82 £1.52
41	MO118550600/0 Available to backorder	Analog Ignition Coil Type B	£24.92 £20.77
41	MO118805575/0 Available to backorder	Digital Ignition Coil Type A	£45.79 £38.16
42	MO123878021/0 Available to backorder	Screw	£1.33 £1.11
43	MO2321050 Available to backorder	Washer	£1.40 £1.17
44	MO118550601/0 Available to backorder	Earth Cable	£2.34 £1.95
45	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
46	MO118804677/0 Available to backorder	Flywheel Assy With Type A ignition	£33.67 £28.06
46	MO118550602/0 Available to backorder	Flywheel Assy With Type B ignition	£29.63 £24.69
51	MO118550603/0 Available to backorder	Clutch Ass.Y	£18.02 £15.02
55	MO118800252/0 In stock	Sprocket Washer	Was £1.63 £1.36 Special Price £1.07 £0.89
56	MO118550604/0 Available to backorder	Clutch Drum Assy 6 Tooth - Pitch 3.8" mini	£18.02 £15.02
57	MO118550605/0 Available to backorder	Needle Bearing	£5.92 £4.93
58	MO118550606/0 Available to backorder	Worm 2 Tooth - Pitch 3.8" mini	£2.68 £2.23
59	MO118800253/0 Available to backorder	Oil Pump Cap	£1.55 £1.29
60	MO183594508/1 Available to backorder	Oil Pump Assy	£18.16 £15.13
61	MO118800254/0 Available to backorder	Tube	£1.82 £1.52
62	MO118550608/0 Available to backorder	Washer	£1.69 £1.41
63	MO118800255/0 Available to backorder	Pickup Oil	£1.69 £1.41
65	MO118800256/0 Available to backorder	Connection	£1.33 £1.11
66	MO118550609/0 Available to backorder	Oil Filter Ass.Y	£8.38 £6.98
67	MO118802952/0 Available to backorder	Nozzle	£2.81 £2.34
70	MO8724091 Available to backorder	Diaphragm Gasket Set	£24.49 £20.41
71	MO118800210/0 Available to backorder	Carburetor	£82.84 £69.03
72	MO118800211/0 Available to backorder	Intake Manifold	£2.81 £2.34
73	MO118800212/0 Available to backorder	Screw	£1.33 £1.11
75	MO118800204/0 Available to backorder	Pipe	£3.79 £3.16
76	MO3657050 Available to backorder	Spark Plug Spring	£3.94 £3.28
77	MO3748880 Available to backorder	Spark Plug Cap	£2.03 £1.69
