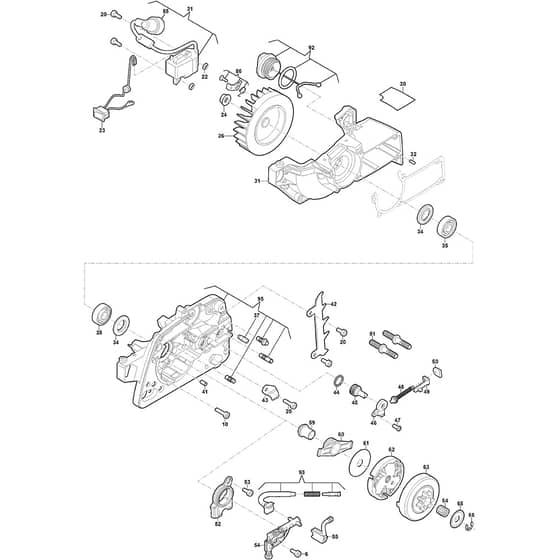

SP 386 - 2016-2022 - 240381602/S17 - Stiga Chainsaw Clutch Flywheel Diagram

Name: SP 386 - 2016-2022 - 240381602/S17 - Stiga Chainsaw Clutch Flywheel Diagram
SKU: sp_386_240381602_s17_clutch_flywheel-group
Price: 0.95 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP 386 - 2016-2022 - 240381602/S17 - Stiga Chainsaw Clutch Flywheel Diagram

Description

Stiga SP 386 Parts Diagram

Product Name - SP 386

Model Year - 2016-2022

Model Type - SP 386

Art.N - 240381602/S17

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO2135180 Available to backorder	Screw	£1.40 £1.17
10	MO2132550 Available to backorder	Screw	£1.40 £1.17
20	MO2135040 Available to backorder	Screw	£1.38 £1.15
21	MO118804370/0 Available to backorder	Ignition Assy	£37.72 £31.43
22	MO118804369/0 Available to backorder	Washer	£1.14 £0.95
23	MO118804367/0 Available to backorder	Switch	£5.21 £4.34
24	MO112154220/0 Available to backorder	Nut	£1.55 £1.29
30	MO118804366/0 Available to backorder	Heat Insulator	£1.69 £1.41
32	MO123753000/0 Available to backorder	Needle	£1.55 £1.29
34	MO118804364/0 Available to backorder	Oil Seal	£3.94 £3.28
35	MO118804363/0 Available to backorder	Ball Bearing	£9.43 £7.86
37	MO118804587/0 Available to backorder	Nozzle	£2.68 £2.23
41	MO118801158/0 Available to backorder	Pin	£1.33 £1.11
42	MO118804362/0 Available to backorder	Spike	£4.22 £3.52
43	MO323059044/0 Available to backorder	Chain Guard	£2.12 £1.77
45	MO118804288/0 Available to backorder	Chain Tensioner	£9.00 £7.50
47	MO112726389/0 Available to backorder	Screw	£1.49 £1.24
48	MO118804289/0 Available to backorder	Tensioner Screw	£4.50 £3.75
49	MO118804907/0 Available to backorder	Chain Tightener Block	£20.40 £17.00
50	MO118804285/0 Available to backorder	Plate	£1.14 £0.95
51	MO118804358/0 Available to backorder	Bolt	£3.10 £2.58
53	MO2135020 Available to backorder	Screw	£1.40 £1.17
55	MO118804299/0 Available to backorder	Oil Tube Outlet	£4.50 £3.75
59	MO118804357/0 Available to backorder	Bushing	£2.12 £1.77
60	MO118805079/0 Available to backorder	Worm	£22.38 £18.65
61	MO118804296/0 Available to backorder	Washer	£2.26 £1.88
62	MO118804295/0 Available to backorder	Clutch	£14.70 £12.25
63	MO118804355/0 Available to backorder	Clutch Drum	£22.38 £18.65
64	MO118804511/0 Available to backorder	Needle Bearing	£7.19 £5.99
65	MO118804290/0 Available to backorder	Washer	£1.82 £1.52
66	MO112000955/0 Available to backorder	Circlip Ø8	£1.33 £1.11
85	MO118804522/0 Available to backorder	Spark Plug Cover Assy	£10.70 £8.92
86	MO118804356/1 Available to backorder	Starter Pawl Assy	£30.97 £25.81
92	MO118804307/1 Available to backorder	Tank Cap Assy	£5.06 £4.22
93	MO118804250/0 Available to backorder	Pickup Oil Assy	£8.29 £6.91
