SP 380 Q - 2010-2011 - 223514152/10 - Stiga Chainsaw Engine Diagram

Name: SP 380 Q - 2010-2011 - 223514152/10 - Stiga Chainsaw Engine Diagram
SKU: sp_380_q_223514152_10_engine-group
Price: 1.07 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP 380 Q - 2010-2011 - 223514152/10 - Stiga Chainsaw Engine Diagram

Description

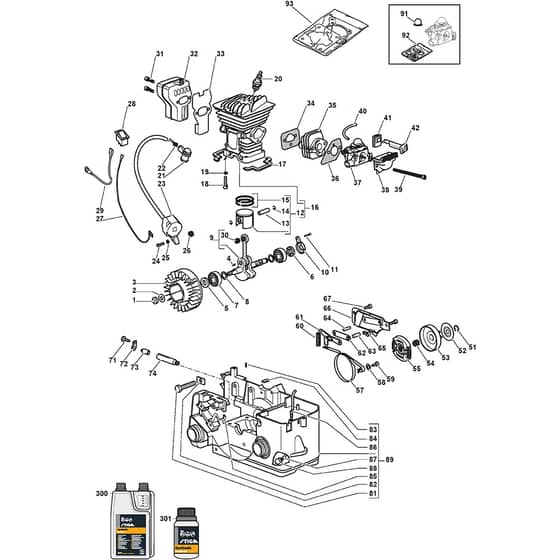

Stiga SP 380 Q Parts Diagram

Product Name - SP 380 Q

Model Year - 2010-2011

Model Type - P 382 S

Art.N - 223514152/10

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
3	MO3L4541210/1 Available to backorder	Flywheel To 31-8-2005	£52.52 £43.77
4	MO3151010 Available to backorder	Flywheel Key	£1.33 £1.11
5	MO3121071 Available to backorder	Seal Ring 5a	£4.78 £3.98
7	MO3112030 Available to backorder	Ball Bearing	£14.92 £12.43
9	MO383020003/0 Available to backorder	Crankshaft	£78.84 £65.70
12	MO383590005/0 Available to backorder	Piston Assy Ø 39	£25.06 £20.88
13	MO3158260 Available to backorder	Piston Pin	£6.64 £5.53
14	MO3356050 Available to backorder	Circlip Ring	£1.40 £1.17
15	MO123204003/0 Available to backorder	Piston Ring Ø 39	£4.66 £3.88
16	MO383070005/0 Available to backorder	Cylinder - Piston Ass'Y	£161.89 £134.91
17	MO3721560 Available to backorder	Cylinder Gasket	£2.18 £1.82
19	MO2330020 Available to backorder	Washer	£1.40 £1.17
20	9494 In stock	Spark Plug	£3.72 £3.10
21	MO3748880 Available to backorder	Spark Plug Cap	£2.03 £1.69
22	MO3657050 Available to backorder	Spark Plug Spring	£3.94 £3.28
23	MO3L3211350/1 Available to backorder	Electronic Coil	£114.29 £95.24
26	MO3654480 Available to backorder	Spring	£1.33 £1.11
28	MO118800202/0 Available to backorder	Stop Switch	£1.82 £1.52
30	MO3116100 Available to backorder	Needle Bearing	£7.13 £5.94
31	MO2135040 Available to backorder	Screw	£1.38 £1.15
32	MO183740004/0 Available to backorder	Muffler Assy	£50.96 £42.47
34	MO1L3724300/1 Available to backorder	Intake Manifold Gasket	£14.38 £11.98
36	MO1L3724160/1 Available to backorder	Carburettor Gasket	£2.34 £1.95
37	MO123054003/2 Available to backorder	Carburetor	£146.56 £122.13
38	MO8744781 Available to backorder	Intake Manifold Assy	£36.59 £30.49
51	MO112000955/0 Available to backorder	Circlip Ø8	£1.33 £1.11
53	MO4121208 Available to backorder	Clutch Drum	£17.17 £14.31
54	MO3114190 Available to backorder	Needle Bearing	£7.67 £6.39
58	MO2312150 Available to backorder	Washer	£1.33 £1.11
59	MO2123060 Available to backorder	Screw	£1.33 £1.11
61	MO4252310 Available to backorder	Chain Brake Lever	£16.69 £13.91
62	MO3614490 Available to backorder	Brake Plate	£2.33 £1.94
67	MO2123100 Available to backorder	Screw	£1.28 £1.07
72	MO3614810 Available to backorder	Retainer	£3.52 £2.93
74	MO4252220 Available to backorder	Oil Pump Assy	£35.20 £29.33
81	MO123878001/0 Available to backorder	Screw	£4.08 £3.40
86	MO4253680 Available to backorder	Breather Valve Assy	£4.08 £3.40
88	MO4253290 Available to backorder	Intake Filter	£13.42 £11.18
91	MO3744870 Available to backorder	Primer Carburettor	£13.37 £11.14
92	MO8724091 Available to backorder	Diaphragm Gasket Set	£24.49 £20.41
300	MO1111-9230-01 Available to backorder	2 Stroke Synthetic Oil 1L Dozer	£14.50 £12.08
301	MO1111-9231-01 Available to backorder	2 Stroke Synthetic 0.1 Lt	£3.00 £2.50
