SP 316 C - 2017-2018 - 240311212/S17 - Stiga Chainsaw Housing 02 Diagram

Name: SP 316 C - 2017-2018 - 240311212/S17 - Stiga Chainsaw Housing 02 Diagram
SKU: sp_316_c_240311212_s17_housing_02-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SP 316 C - 2017-2018 - 240311212/S17 - Stiga Chainsaw Housing 02 Diagram

Description

Stiga SP 316 C Parts Diagram

Product Name - SP 316 C

Model Year - 2017-2018

Model Type - SP 316 C

Art.N - 240311212/S17

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
67	MO123753000/0 Available to backorder	Needle	£1.55 £1.29
101	MO118804748/0 Available to backorder	Muffler Cover. Yellow	£4.08 £3.40
110	MO118804806/0 Available to backorder	Washer	£1.55 £1.29
111	MO118804755/0 Available to backorder	Spring For Hand Guard	£1.69 £1.41
112	MO118804756/0 Available to backorder	Hand Guard	£14.15 £11.79
113	MO118804757/0 Available to backorder	Hand Guard Screw	£1.40 £1.17
119	MO123878121/0 Available to backorder	Screw	£1.69 £1.41
120	MO118804759/0 Available to backorder	Break Spring Cover	£3.10 £2.58
121	MO118804760/0 Available to backorder	Bushing	£1.33 £1.11
122	MO118804761/0 Available to backorder	Chain Brake Spring	£1.40 £1.17
123	MO118804762/0 Available to backorder	Spring Base	£1.33 £1.11
124	MO118804763/0 Available to backorder	Break Strap	£3.94 £3.28
130	MO112727815/0 Available to backorder	Screw	£1.40 £1.17
131	MO118804764/0 Available to backorder	Tensioner Cover Plate	£2.95 £2.46
132	MO118804765/0 Available to backorder	Passive Tensioner Gear	£2.95 £2.46
133	MO118804766/0 Available to backorder	Gear Base	£1.33 £1.11
134	MO118804767/0 Available to backorder	Tensioner Gear	£3.10 £2.58
135	MO118804768/0 Available to backorder	Chain Tensioner Block	£2.81 £2.34
136	MO118804769/0 Available to backorder	Tensioner Screw	£1.82 £1.52

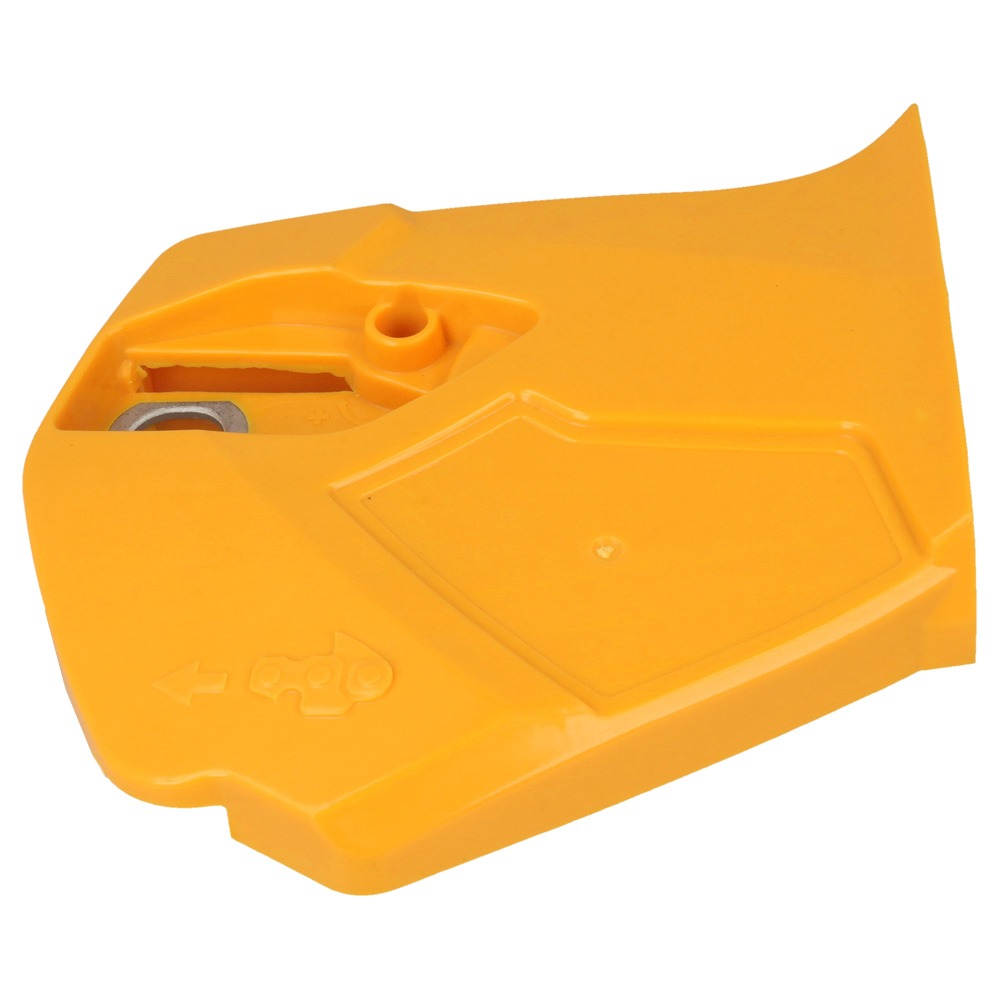

137	MO118804770/0 Available to backorder	Clutch Cover. Yellow	£20.69 £17.24
138	MO118804771/0 Available to backorder	Starter Assy. Yellow Rope 2.6x840mm	£38.00 £31.67
139	MO118804772/0 Available to backorder	Starter Handle	£3.24 £2.70
141	MO118804773/0 Available to backorder	Grommet	£2.26 £1.88
142	MO112728124/0 Available to backorder	Screw	£1.55 £1.29
146	MO118804775/0 Available to backorder	Starter Pulley	£3.24 £2.70
147	MO118804776/0 Available to backorder	Spring	£2.95 £2.46
148	MO118804777/0 Available to backorder	Starter Ratchet	£2.95 £2.46
149	MO118804807/0 Available to backorder	Screw	£2.95 £2.46
150	MO118804778/0 Available to backorder	Air Conveyor	£2.40 £2.00
151	MO123120008/0 Available to backorder	Nut	£1.69 £1.41
153	MO118804779/0 Available to backorder	Flywheel Assy	£29.63 £24.69
154	MO118804664/0 Available to backorder	Guide Bar 12"-1.4"-0.050"	£27.78 £23.15
155	MO1430664-04A Available to backorder	Chain 12"-1.4"-0.050"-64E	£24.49 £20.41
169	MO118804810/0 Available to backorder	Break Control Assy	£4.22 £3.52
170	MO118804811/0 Available to backorder	Starter Spring Assy	£4.22 £3.52
200	MO1111-9228-01 Available to backorder	Chain Oil Mineral 1Lt	£9.30 £7.75
201	MO1111-9229-01 Available to backorder	Chain Oil Mineral 5Lt	£42.41 £35.34
202	MO1111-9276-01 Available to backorder	Chain Oil Biodegradable 1Lt	£10.99 £9.16
203	MO1111-9247-01 Available to backorder	Chain Oil Biodegradable 5Lt	£50.98 £42.48
