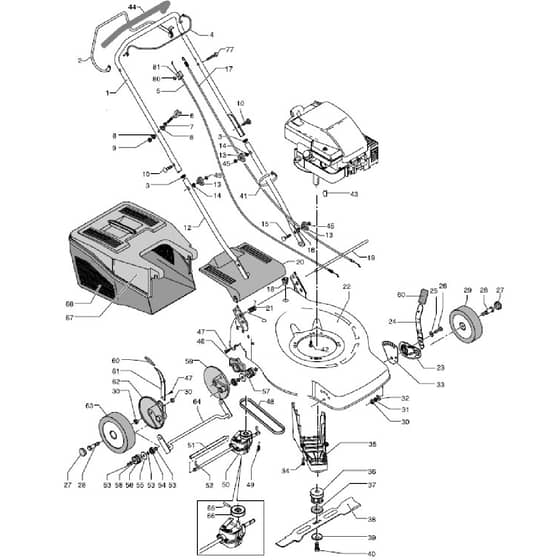

Sovereign SV46D - 962000131 Parts Diaigram Drawing Breakdown

Be the first to review this product

0 product questions

	Part No.	Details
1	HV531 20 52-04 Available to backorder	Upper Handle	£46.58 £38.82
2	HV531 20 52-08 Available to backorder	Clutch Handle	£24.58 £20.48
3	HV531 20 89-50 Available to backorder	Plug	£1.04 £0.87
6	HV531 20 51-69 Available to backorder	Cable Hook	£2.72 £2.27
7	HV531 20 71-65 Available to backorder	Nut	£2.06 £1.72
8	HV514 02 66-00 Available to backorder	Washer	£2.28 £1.90
9	HV531 20 84-91 Available to backorder	Nut	£2.06 £1.72
10	HV531 20 70-89 Available to backorder	Screw	£7.12 £5.93
12	HV531 20 60-71 Available to backorder	Lower Handle	£30.40 £25.33
13	HV531 20 49-23 Available to backorder	Knop	£4.14 £3.45
15	HV531 20 49-21 Available to backorder	Screw	£5.04 £4.20
16	HV531 20 49-22 Available to backorder	Washer	£2.58 £2.15
17	HV531 20 61-91 Available to backorder	Cable	£29.12 £24.27
18	HV531 20 55-57 Available to backorder	Cable Lock	£3.88 £3.23
19	HV531 20 50-60 Available to backorder	Tie Rod	£19.42 £16.18
20	HV531 20 59-82 Available to backorder	Defl. Yellow	£13.12 £10.93
20	HV531 20 59-84 Available to backorder	Defl. Black	£28.46 £23.72
21	HV531 20 59-99 Available to backorder	Spring	£4.26 £3.55
23	HV544 45 23-01 Available to backorder	Support	£9.18 £7.65
24	HV544 45 25-01 Available to backorder	C Lever	£9.06 £7.55
25	HV531 20 60-20 Available to backorder	Washer	£2.08 £1.73
26	HV531 20 49-12 Available to backorder	Screw	£7.12 £5.93
28	HV531 20 50-42 Available to backorder	Screw	£8.88 £7.40
29	HV531 20 50-29 Available to backorder	Wheel	£23.42 £19.52
30	HV531 20 79-78 Available to backorder	Nut	£3.62 £3.02
31	HV531 20 89-74 Available to backorder	Washer	£2.34 £1.95
32	HV531 20 79-89 Available to backorder	Washer	£5.06 £4.22
33	HV574 41 32-09 Available to backorder	Support	£4.98 £4.15
34	HV531 20 78-56 Available to backorder	Screw	£1.56 £1.30
35	HV544 46 22-02 In stock	Belt Housing	£26.00 £21.67
36	HV581 84 30-01 Available to backorder	Blade Adapter	£20.09 £16.74
37	HV525 42 31-01 Available to backorder	Washer	£3.48 £2.90
38	HV531 21 10-17 In stock	Blade	£31.84 £26.53
39	HV531 20 72-37 Available to backorder	Washer	£3.64 £3.03
40	HV531 20 80-08 Available to backorder	Screw	£6.97 £5.81
41	HV531 20 55-81 Available to backorder	Clamp	£0.66 £0.55
43	HV531 20 49-07 In stock	Key	£1.55 £1.29
44	HV531 20 59-89 Available to backorder	Sheating	£7.72 £6.43
45	HV874 78 06-16 Available to backorder	Nut	£6.34 £5.28
46	HV531 20 59-44 Available to backorder	Support	£8.40 £7.00
47	HV531 20 82-16 Available to backorder	Screw	£1.56 £1.30
48	HV501 38 19-01 Available to backorder	Belt	£23.32 £19.43
49	HV531 20 52-16 Available to backorder	Spring	£5.18 £4.32
50	HV531 21 30-47 Available to backorder	Gear-Box	£142.34 £118.62
52	HV531 20 51-08 Available to backorder	Key	£5.56 £4.63
54	HV531 20 87-78 Available to backorder	Ball-Bearing	£6.36 £5.30
55	HV525 42 29-01 Available to backorder	Washer	£2.34 £1.95
56	HV531 20 50-45 Available to backorder	Pinion	£9.17 £7.64
57	HV531 20 50-46 Available to backorder	Pinion	£7.73 £6.44
58	HV531 20 88-59 Available to backorder	Washer	£2.58 £2.15
59	HV531 20 51-95 Available to backorder	Flange	£15.54 £12.95
60	HV574 61 05-01 Available to backorder	Sheating	£7.12 £5.93
62	HV531 20 51-94 Available to backorder	Flange	£16.18 £13.48
64	HV540 06 86-01 Available to backorder	Axle	£59.02 £49.18
65	HV531 20 67-72 Available to backorder	Resilient Pin	£4.54 £3.78
67	HV531 20 82-96 Available to backorder	Grass C. Upper	£52.61 £43.84
68	HV531 20 83-13 Available to backorder	Grass C. Bottom	£35.51 £29.59
77	HV531 20 63-46 Available to backorder	Screw	£2.58 £2.15
80	HV531 20 52-13 Available to backorder	Nut	£1.82 £1.52
