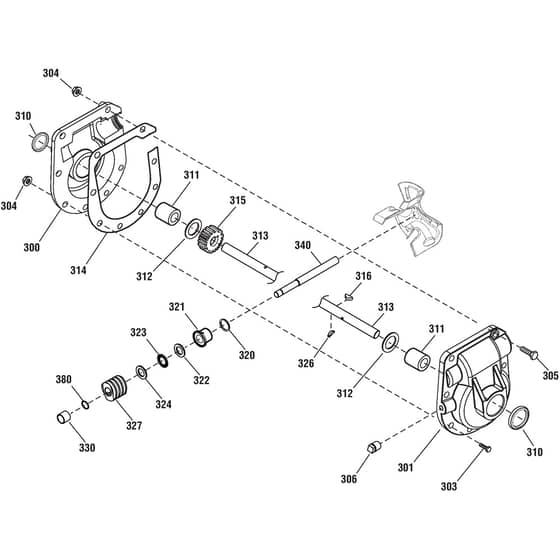

SNOW POWER - 2014-2018 - 18-2847-34 - Stiga Snow Thrower Gear case Diagram

Description

Stiga SNOW POWER Parts Diagram

Product Name - SNOW POWER

Model Year - 2014-2018

Model Type -

Art.N - 18-2847-34

Engine Model -

	Part No.	Details
301	MO1812-0228-01 Available to backorder	Gear Case Rh	£67.92 £56.60
303	MO9987-5125-16 Available to backorder	Screw	£2.40 £2.00
304	MO9743-5121-02 Available to backorder	Nut	£2.69 £2.24
305	MO9987-5145-12 Available to backorder	Screw	£2.24 £1.87
310	MO1812-0344-01 Available to backorder	Ring	£10.40 £8.67
311	MO1812-0343-01 Available to backorder	Bearing	£19.44 £16.20
312	MO1812-0345-01 Available to backorder	Washer	£15.18 £12.65
313	MO1812-2363-01 Available to backorder	Auger Shaft 33¶ Power	£189.25 £157.71
315	MO1812-2755-01 Available to backorder	Worm Gear	£136.86 £114.05
316	MO1812-0409-01 Available to backorder	Woodruff Key	£7.81 £6.51
320	MO1812-0341-01 Available to backorder	Ring	£10.62 £8.85
321	MO1812-1259-01 Available to backorder	Bearing Impeller Shaft	£21.60 £18.00
323	MO1812-0285-01 Available to backorder	Needle Bearing	£14.14 £11.78
324	MO1812-0857-01 Available to backorder	Thrust Washer	£8.77 £7.31
326	MO1812-0307-01 Available to backorder	Key	£10.37 £8.64
327	MO1812-0336-01 Available to backorder	Gear	£91.49 £76.24
330	MO1812-0297-01 Available to backorder	Bearing	£9.68 £8.07
380	MO1812-2757-01 Available to backorder	Retaining Ring	£9.47 £7.89
