Snapper RPX360 2691706-00 Engine Group

Name: Snapper RPX360 2691706-00 Engine Group
SKU: rpx360_2691706_00_engine_group-group
Price: 2.24 GBP
Availability: OutOfStock

Part No. rpx360_2691706_00_engine_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Description

Snapper RPX360 2691706-00 - Engine Group - Parts Diagram

	Part No.	Details
1	BP1731957SM Available to backorder	[F1] Wiring Harness Fuse	£6.60 £5.50
1	BP1759779YP Available to backorder	[WH1] Battery	£13.84 £11.53
1	BP1758779YP Available to backorder	[H1] Bag Full Buzzer	£46.28 £38.57

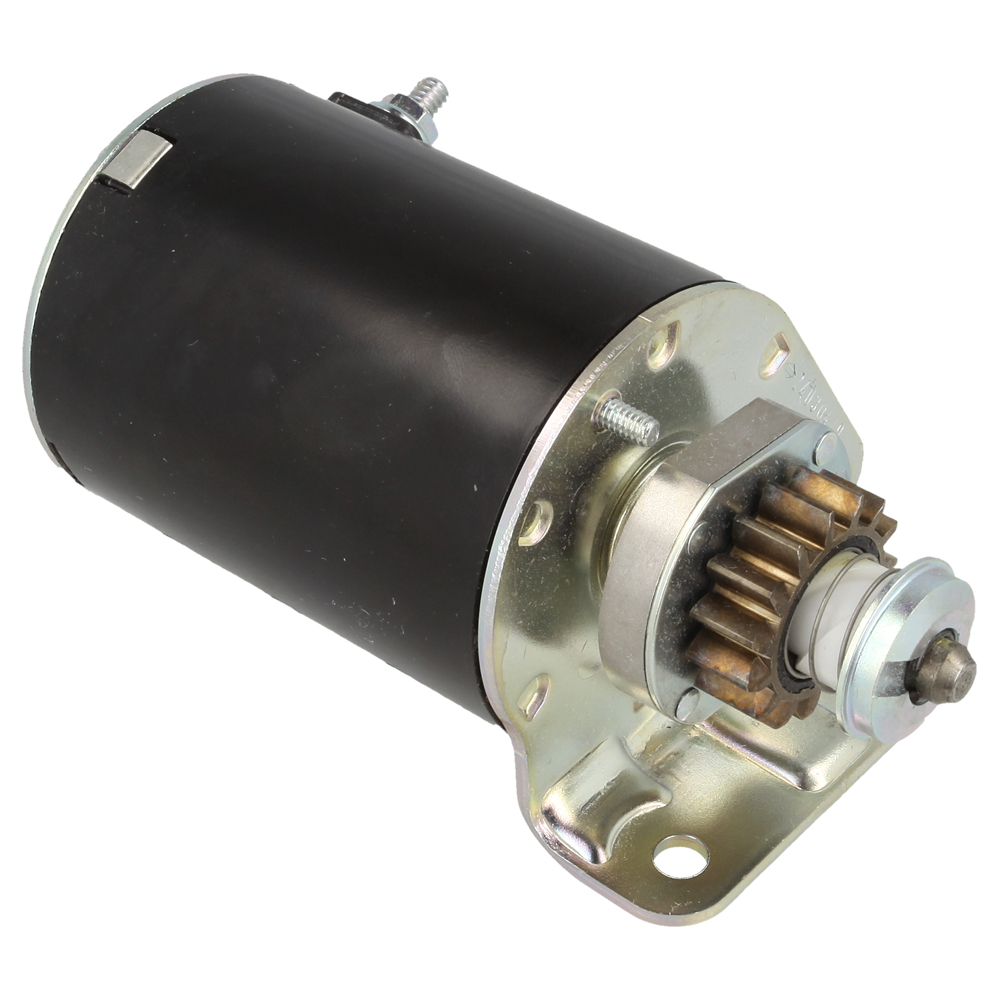

1	BP592599 Available to backorder	[M1] Starter Motor	£186.84 £155.70

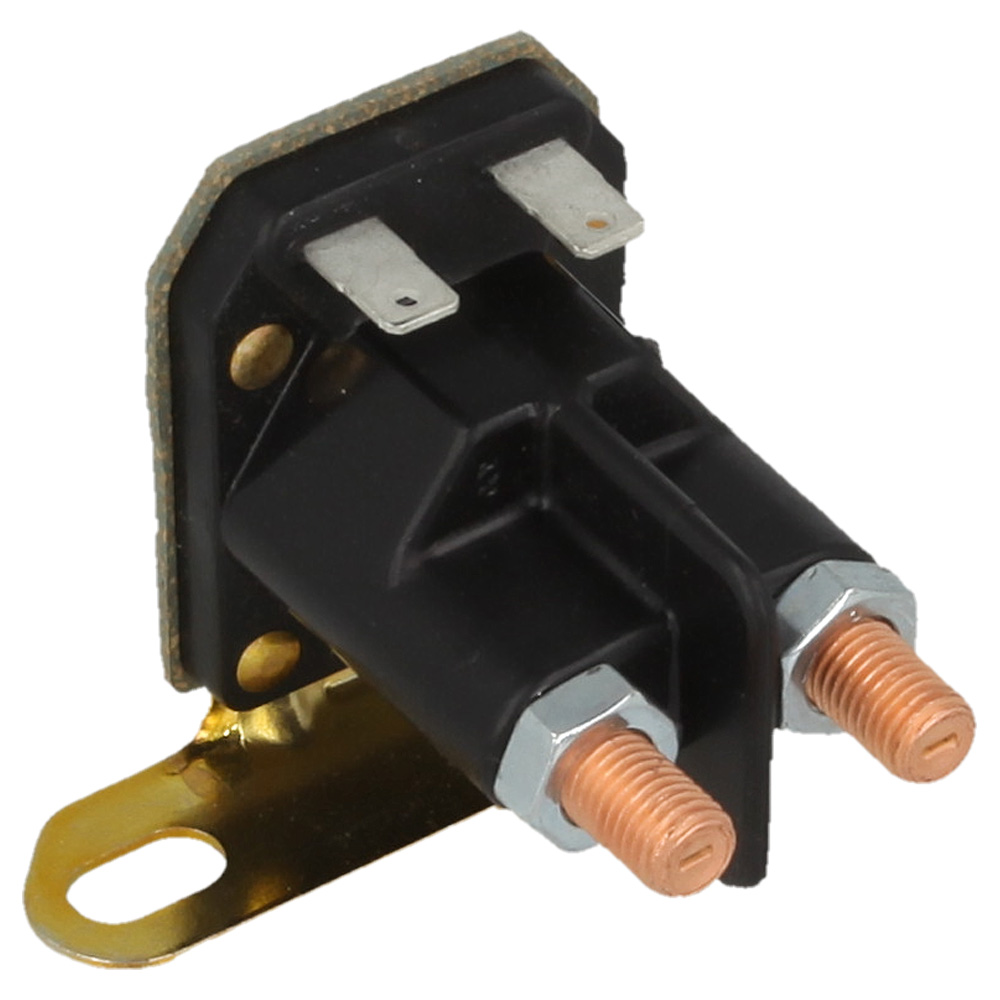

1	SN1755381YP Available to backorder	[Y1] L-Bracket Solenoid	£24.68 £20.57
1	BP1758611YP Available to backorder	[B1] Fuel Sender	£67.44 £56.20
1	BP1761507YP Available to backorder	[S1] Ignition Switch	£27.66 £23.05
2	SN1760986YP Available to backorder	[Y2] Ogura Clutch	£293.88 £244.90
2	BP1726829SM Available to backorder	[K2] Relay(S)	£11.15 £9.29
2	BP1758654YP Available to backorder	[P2] Mini Meter Display	£87.00 £72.50
3	SN1758683YP Available to backorder	[P3] Fuel Gauge	£40.92 £34.10
3	SY1720411SM Available to backorder	[S3] No	£10.66 £8.88
3	BP1761298YP Available to backorder	[WH3] Headlight Harness	£22.68 £18.90
4	BP1738015YP Available to backorder	[S4] Seat Switch	£50.34 £41.95

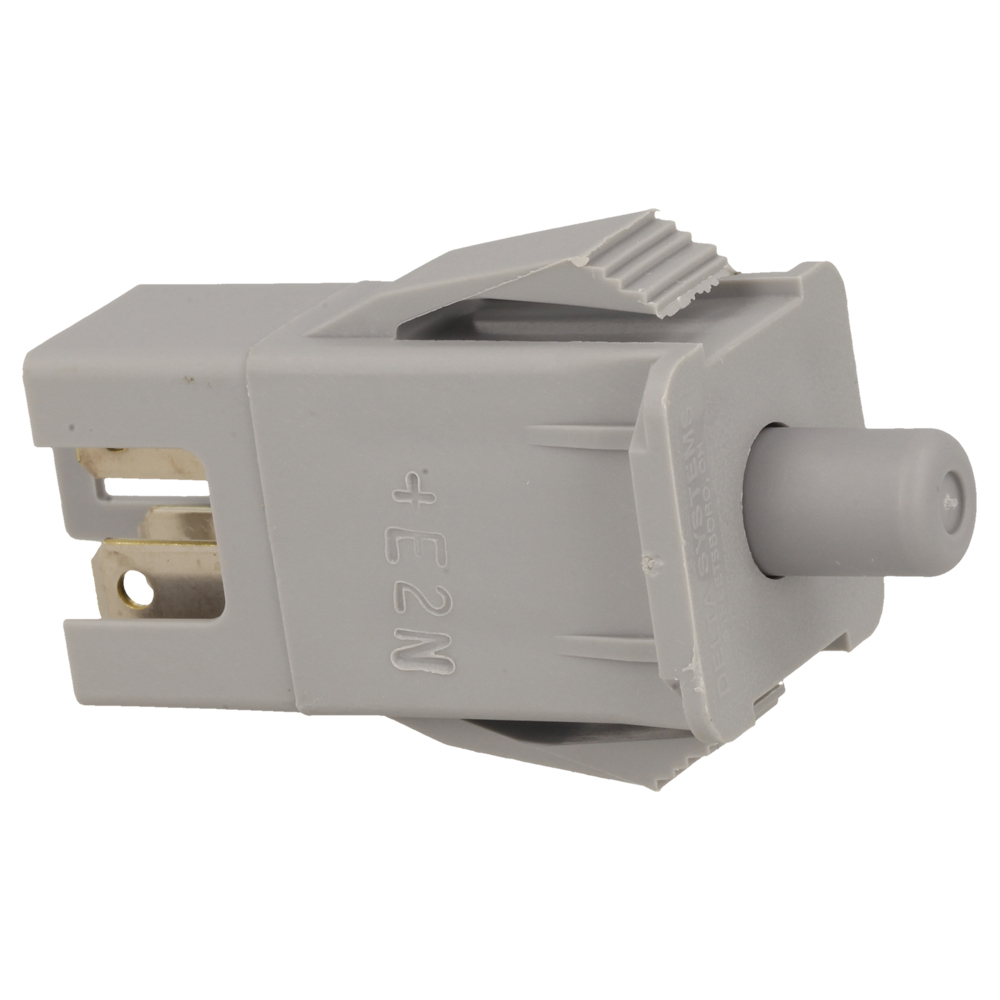

5	SN7022886YP Available to backorder	[S5] Dp No/Nc Snap Switch	£11.74 £9.78
6	BP84002998 Available to backorder	[WH6] Main Harness	£224.52 £187.10
9	SN1761897YP Available to backorder	[S9] Reverse Mow Option Switch	£23.04 £19.20
10	BP84003064 Available to backorder	[S10] Bag Full Switch	£70.20 £58.50

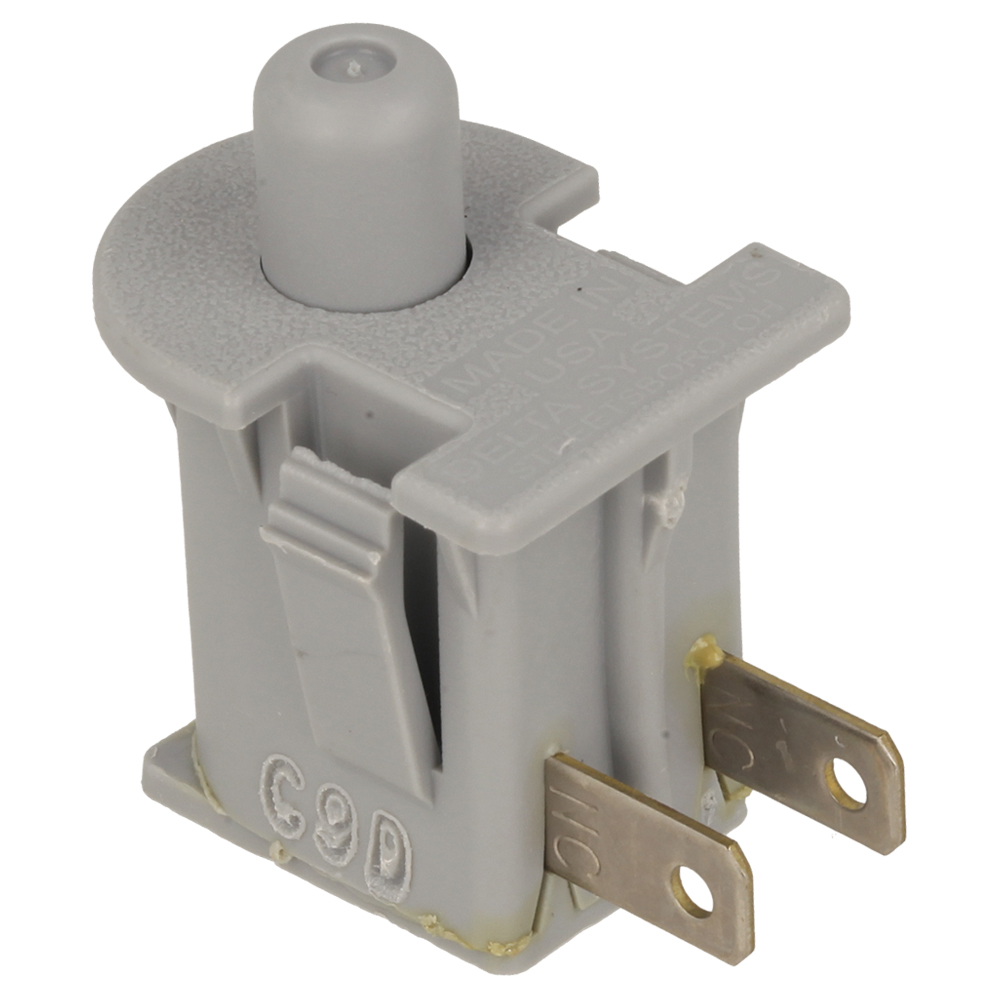

11	BP7023354YP In stock	[S11] Seat Switch	£10.30 £8.58
50	BP1730007SM Available to backorder	Battery	£21.66 £18.05
60	BP1931318SM Available to backorder	Carriage	£3.91 £3.26
70	BP703229 Available to backorder	1/4 Washer	£3.19 £2.66
80	BP703826 Available to backorder	Pushnut 1/4 Bolt	£3.11 £2.59
90	SN703463 Available to backorder	Gr5	£2.69 £2.24
110	SN704130 Available to backorder	Hex	£2.89 £2.41
430	BP1760239YP Available to backorder	Led Headlight And Socket Assembly	£20.65 £17.21
