Snapper RPX360 2691706-00 42" (107cm) Mower Deck-Clutch Group

Name: Snapper RPX360 2691706-00 42" (107cm) Mower Deck-Clutch Group
SKU: rpx360_2691706_00_42_107cm_mower_deck_clutch_group-group
Price: 2.36 GBP
Availability: OutOfStock

Part No. rpx360_2691706_00_42_107cm_mower_deck_clutch_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper RPX360 2691706-00 42" (107cm) Mower Deck-Clutch Group

Description

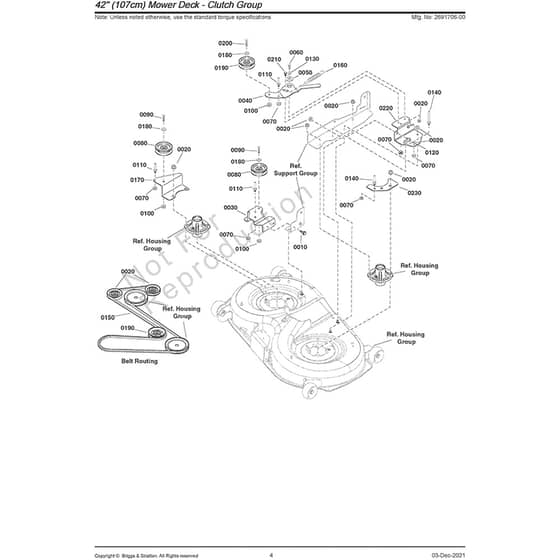

Snapper RPX360 2691706-00 - 42" (107cm) Mower Deck-Clutch Group - Parts Diagram

	Part No.	Details
20	BP703409 Available to backorder	5/16-18	£2.98 £2.48
30	BP84003049 Available to backorder	Idler Bracket	£49.76 £41.47
40	BP1758759BMYP Available to backorder	Idler Arm	£70.56 £58.80
50	BP1727935SM Available to backorder	Spacer-Pivot 0.330Id	£5.74 £4.78
60	BP703570 Available to backorder	Hex Head	£3.19 £2.66
70	BP704067 Available to backorder	Hex Flng	£2.98 £2.48
80	BP885482YP Available to backorder	Pulley Idler	£25.51 £21.26
90	SN703589 Available to backorder	3/8-16X2 Capscrew	£3.46 £2.88
100	BP703330 Available to backorder	Hex Flange Whiz-Lock	£3.34 £2.78
110	BP885534YP Available to backorder	Belt Guide	£12.74 £10.62
120	BP703185 Available to backorder	Rhssnb	£3.12 £2.60
130	BP703332 Available to backorder	5/16 Washer	£2.83 £2.36
140	BP1401105MA Available to backorder	Long Belt Guide	£5.21 £4.34
150	SN1758760YP Available to backorder	Belt	£92.52 £77.10
160	BP165X157MA Available to backorder	Extension Spring	£22.39 £18.66
170	SN885845BMYP Available to backorder	Idler	£34.46 £28.72
180	SN704128 Available to backorder	Washer	£3.12 £2.60
190	BP885937YP Available to backorder	Idler Pulley	£28.86 £24.05
200	SN703406 Available to backorder	3/8-16X1.5 Capscrew	£3.26 £2.72
210	BP1752802YP Available to backorder	Shldr	£5.29 £4.41
220	SN1758758BMYP Available to backorder	Idler Mount Bracket	£45.34 £37.78
230	SN1758757BMYP Available to backorder	Belt Guide Mount Plate	£21.29 £17.74
