Snapper RPX310 2691705-01 Seat Group

Description

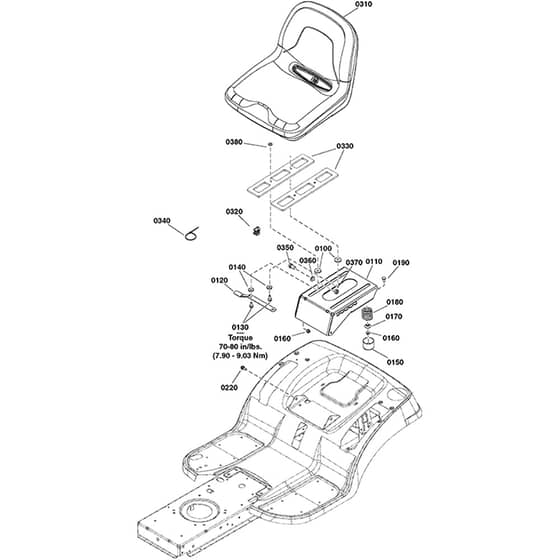

Snapper RPX310 2691705-01 - Seat Group - Parts Diagram

	Part No.	Details
100	BP1731300SM Available to backorder	5/16 Id X 1-1/4 Od X 5/16" Spacer	£4.56 £3.80
110	BP1755767BMYP Available to backorder	Seat Support	£104.04 £86.70
120	BP1727268BMYP Available to backorder	Seat Latch	£11.76 £9.80
130	BP1933689SM Available to backorder	5/16-18 X 1-1/2	£6.10 £5.08
140	BP703298 Available to backorder	5/16 Washer	£3.42 £2.85
150	BP1704724SM Available to backorder	Spring	£6.30 £5.25
160	SN703115 Available to backorder	Nut	£2.83 £2.36
170	BP1709256SM Available to backorder	Spring	£3.92 £3.27
180	BP1704728SM Available to backorder	Compression	£7.78 £6.48
190	BP703225 Available to backorder	Bolt	£3.08 £2.57
220	SN703851 Available to backorder	5/16-18X1.15 Bolt	£4.06 £3.38
310	BP84003944 Available to backorder	15" Seat	£376.80 £314.00
320	BP7023354YP In stock	Seat Switch	£9.60 £8.00
330	BP84003652 Available to backorder	Plate Spacer	£39.48 £32.90
340	BP703586 Available to backorder	Self Locking Tie	£3.65 £3.04
350	BP1923114SM Available to backorder	Hex Head	£4.14 £3.45
360	SN703853 Available to backorder	0.516Idx1Od Washer	£3.12 £2.60
370	SN703340 Available to backorder	Hex	£8.40 £7.00
380	SN703297 Available to backorder	Gr5	£2.69 £2.24
