Snapper RPX310 2691705-01 Electrical Group

Name: Snapper RPX310 2691705-01 Electrical Group
SKU: rpx310_2691705_01_electrical_group-group
Price: 2.24 GBP
Availability: OutOfStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper RPX310 2691705-01 Electrical Group

Description

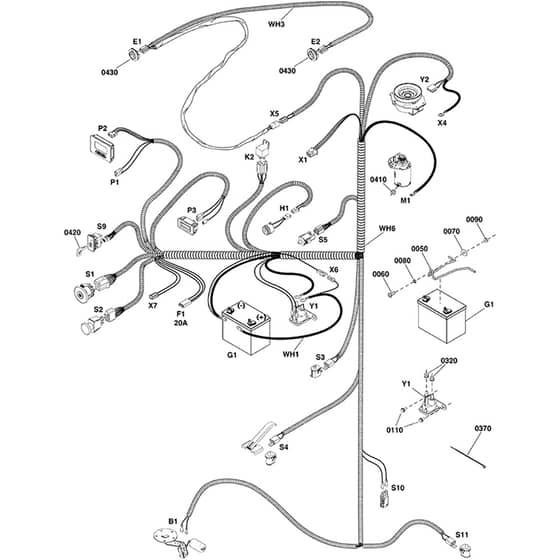

Snapper RPX310 2691705-01 - Electrical Group - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
1	BP1758611YP Available to backorder	[B1] Fuel Sender	£67.42 £56.18
1	BP1758779YP Available to backorder	[H1] Bag Full Buzzer	£44.74 £37.28
1	BP1731957SM Available to backorder	[F1] Wiring Harness Fuse	£6.38 £5.32
1	BP1759779YP Available to backorder	[WH1] Battery	£13.38 £11.15
1	BP1761507YP Available to backorder	[S1] Ignition Switch	£26.74 £22.28
1	BP592599 Available to backorder	[M1] Starter Motor	£179.40 £149.50
1	SN1755381YP Available to backorder	[Y1] L-Bracket Solenoid	£25.92 £21.60
2	BP1758654YP Available to backorder	[P2] Mini Meter Display	£87.02 £72.52
2	SN1760986YP Available to backorder	[Y2] Ogura Clutch	£309.06 £257.55
2	BP1726829SM Available to backorder	[K2] Relay(S)	£10.78 £8.98
3	BP1761298YP Available to backorder	[WH3] Headlight Harness	£21.92 £18.27
3	SY1720411SM Available to backorder	[S3] No	£10.66 £8.88
3	SN1758683YP Available to backorder	[P3] Fuel Gauge	£40.92 £34.10
4	BP1738015YP Available to backorder	[S4] Seat Switch	£48.66 £40.55
5	SN7022886YP Available to backorder	[S5] Dp No/Nc Snap Switch	£12.05 £10.04
6	BP84002998 Available to backorder	[WH6] Main Harness	£236.18 £196.82
9	SN1761897YP Available to backorder	[S9] Reverse Mow Option Switch	£119.99 £99.99
10	BP84003064 Available to backorder	[S10] Bag Full Switch	£70.22 £58.52
11	BP7023354YP In stock	[S11] Seat Switch	£9.60 £8.00
50	BP1730007SM Available to backorder	Battery	£20.94 £17.45
60	BP1931318SM Available to backorder	Carriage	£3.78 £3.15
70	BP703229 Available to backorder	1/4 Washer	£3.08 £2.57
80	BP703826 Available to backorder	Pushnut 1/4 Bolt	£3.11 £2.59
90	SN703463 Available to backorder	Gr5	£2.69 £2.24
110	SN704130 Available to backorder	Hex	£2.89 £2.41
320	BP2860750SM Available to backorder	Nut-Hex Keps 5/16-24	£2.80 £2.33
370	BP703586 Available to backorder	Self Locking Tie	£3.65 £3.04
410	SN703061 Available to backorder	Hex Keps	£2.98 £2.48
420	SY1726557SM Available to backorder	No Mow Module (Yellow) Key	£5.00 £4.17
430	BP1760239YP Available to backorder	Led Headlight And Socket Assembly	£19.96 £16.63
