Snapper RPX310 2691705-01 42" (107cm) Mower Deck-Housing, Arbors & Blades Group

Name: Snapper RPX310 2691705-01 42" (107cm) Mower Deck-Housing, Arbors & Blades Group
SKU: rpx310_2691705_01_42_107cm_mower_deck_housing_arbors_blades_grou
Price: 1.85 GBP
Availability: OutOfStock

Part No. rpx310_2691705_01_42_107cm_mower_deck_housing_arbors_blades_grou

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper RPX310 2691705-01 42" (107cm) Mower Deck-Housing, Arbors & Blades Group

Description

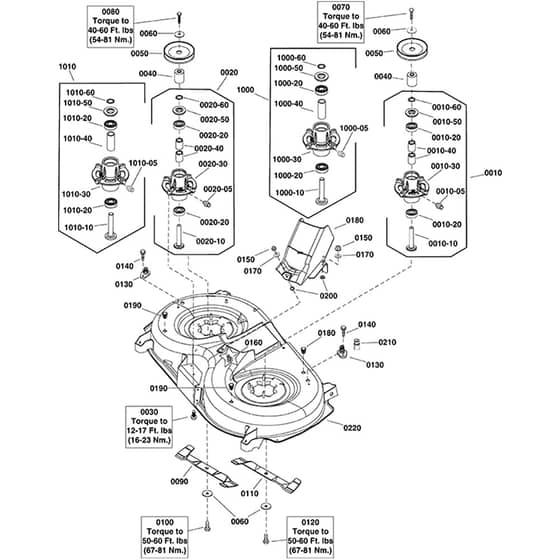

Snapper RPX310 2691705-01 - 42" (107cm) Mower Deck-Housing, Arbors & Blades Group - Parts Diagram

	Part No.	Details
30	SN704318 Available to backorder	Hex Washer Self-Tap	£3.62 £3.02
40	SN1750338YP Available to backorder	Mower Drive Spacer	£20.96 £17.47
50	SN1758750YP Available to backorder	Pulley	£24.68 £20.57
60	SY1656916SM In stock	Spring 0.475I Washer	£7.81 £6.51
70	BP1926110SM Available to backorder	Hex Head	£5.88 £4.90
80	SN703846 Available to backorder	Socket Head	£7.61 £6.34
90	SN1758513BMYP Available to backorder	Rh	£79.68 £66.40
100	SN703845 Available to backorder	Socket Head	£17.92 £14.93
110	SN1758514BMYP Available to backorder	Rh	£79.68 £66.40
120	SY1920676SM Available to backorder	Hex Head	£4.97 £4.14
130	SN1756247YP Available to backorder	Washout Port Adapter	£5.44 £4.53
150	BP703409 Available to backorder	5/16-18	£2.98 £2.48
160	BP703800 In stock	Crrg	Was £3.02 £2.52 Special Price £2.22 £1.85
170	BP703332 Available to backorder	5/16 Washer	£2.83 £2.36
180	BP885719YP Available to backorder	Center Cap	£153.72 £128.10
190	BP7046780SM Available to backorder	Hole	£3.91 £3.26
200	SN703297 Available to backorder	Gr5	£2.69 £2.24
210	SN1756246YP Available to backorder	Washout Port Connector	£6.60 £5.50
220	SN885827BMYP Available to backorder	Mower Deck 107Cm	£616.19 £513.49
1000	BP84003175 Available to backorder	Arbor Assembly	£79.56 £66.30
1010	BP84003176 Available to backorder	Rh Arbor Assembly	£82.92 £69.10
2030	BP1735573YP In stock	Spindle W/Fitting Housing	£51.49 £42.91
2040	BP1735328YP Available to backorder	Bearing Spacer	£5.15 £4.29
100030	BP84003170 Available to backorder	Spindle Shaft	£24.48 £20.40
101005	BP703907 Available to backorder	.250 Dr Lube Fitting	£4.00 £3.33
101010	BP84003171 Available to backorder	Spindle Shaft	£26.38 £21.98
101020	SN1735399YP Available to backorder	Ball	£10.09 £8.41
101030	SY84003654 In stock	Housing Assembly	£49.27 £41.06
101040	BP84003167 Available to backorder	Bearing Spacer	£10.08 £8.40
101050	SN84003166 Available to backorder	Arbor Cover	£8.23 £6.86
101060	SN1960766YP Available to backorder	Self Locking Ring	£4.03 £3.36
201010	SN1760276YP Available to backorder	Spindle Shaft	£25.34 £21.12
202010	BP84003044 Available to backorder	Spindle Shaft	£26.80 £22.33
