Snapper RPX210 2691491 Wheels and Tyres Group

Name: Snapper RPX210 2691491 Wheels and Tyres Group
SKU: rpx210_2691491_wheels_and_tyres_group-group
Price: 3.14 GBP
Availability: OutOfStock

Part No. rpx210_2691491_wheels_and_tyres_group-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper RPX210 2691491 Wheels and Tyres Group

Description

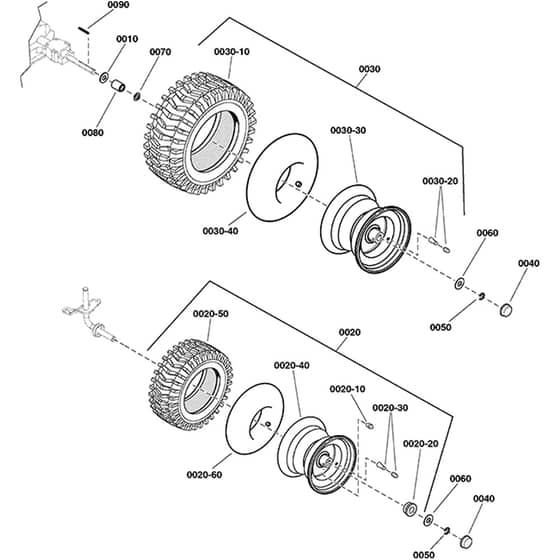

Snapper RPX210 2691491 - Wheels and Tyres Group - Parts Diagram

	Part No.	Details
10	BP2860202SM Available to backorder	3/4 X 1-5/8 Od X 1/8 Thick Washer	£4.49 £3.74
20	BP1761503YP Available to backorder	Front	£183.96 £153.30
30	BP1732324SM Available to backorder	Rear	£332.76 £277.30
40	BP094618MA In stock	Hub Cap	£4.44 £3.70
50	BP2827794SM Available to backorder	.75 Dia Shaft Klipring	£3.77 £3.14
60	BP17X195MA Available to backorder	Flat 1-3/4 Washer	£4.72 £3.93
70	BP17X160MA Available to backorder	Flat	£4.20 £3.50
80	BP1730181SM Available to backorder	3/4 Id X 1-1/4 Od X 1-5/8 Spacer	£9.06 £7.55
90	BP021553MA Available to backorder	Square	£6.74 £5.62
2020	BP84003424 Available to backorder	Ball Bearing	£12.02 £10.02
2050	SY1731951SM Available to backorder	15 X 6 2 Ply K358 Tire	£112.68 £93.90
2060	BP1664090SM Available to backorder	Tire	£23.26 £19.38
3020	BP024373MA Available to backorder	Valve Stem & Cap	£9.56 £7.97
3040	BP2173477SM Available to backorder	Tube	£86.16 £71.80
193010	BP7101559YP Available to backorder	20 X 8-8	£233.16 £194.30
202010	BP84003425 Available to backorder	Grease Fitting Zerk	£7.97 £6.64
