Snapper RPX210 2691491 Transmission Group

Name: Snapper RPX210 2691491 Transmission Group
SKU: rpx210_2691491_transmission_group-group
Price: 1.9 GBP
Availability: OutOfStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper RPX210 2691491 Transmission Group

Description

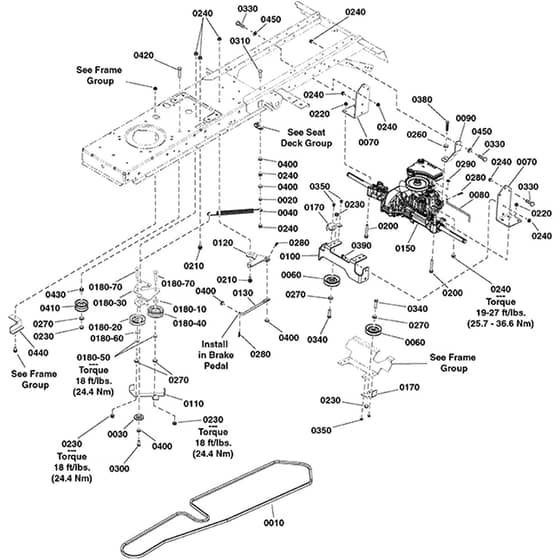

Snapper RPX210 2691491 - Transmission Group - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
10	SN84001118 Available to backorder	Rdlt	£84.66 £70.55
20	BP5102463YP Available to backorder	.33 X .50 X .25	£4.76 £3.97
30	BP1727935SM Available to backorder	Spacer-Pivot 0.330Id	£5.54 £4.62
40	BP84002611 Available to backorder	Extension Spring	£9.66 £8.05
70	BP84002634 Available to backorder	Transmission Mounting Bracket	£37.52 £31.27
80	BP84002612 Available to backorder	Transmission Rod	£12.04 £10.03
90	BP84002635 Available to backorder	Transmission Mounting	£25.84 £21.53
100	BP84002636 Available to backorder	Transmission Pulley Bracket	£71.06 £59.22
110	BP84002637 Available to backorder	Belt Guide Bracket	£29.20 £24.33
120	BP84002638 Available to backorder	Clutch Pivot Assembly	£57.54 £47.95
130	BP84002639 Available to backorder	Clutch Rod	£16.00 £13.33
170	BP84002645 Available to backorder	Belt Guide	£7.64 £6.37
200	BP1960586SM Available to backorder	Hex Flange	£4.82 £4.02
210	SN703851 Available to backorder	5/16-18X1.15 Bolt	£4.06 £3.38
220	BP703409 Available to backorder	5/16-18	£2.88 £2.40
240	SN703115 Available to backorder	Nut	£2.83 £2.36
260	BP703118 Available to backorder	Flat	£3.34 £2.78
280	SN703430 Available to backorder	13X1.19 Pin	£2.75 £2.29
300	SN703585 Available to backorder	Hex Head	£2.98 £2.48
310	SN703296 Available to backorder	5/16-18X1.5 Bolt	£3.19 £2.66
330	SN703408 Available to backorder	Hex Head Cap	£2.98 £2.48
340	SN703406 Available to backorder	3/8-16X1.5 Capscrew	£3.26 £2.72
350	SN703583 Available to backorder	Taptite	£2.98 £2.48
380	SN704288 Available to backorder	Hex Head	£3.04 £2.53
390	SN704065 Available to backorder	5/16-18X.875 Bolt	£3.19 £2.66
400	BP703332 Available to backorder	5/16 Washer	£2.74 £2.28
410	SY1668477SM Available to backorder	Idler	£23.89 £19.91
430	BP5044933SM Available to backorder	.39 X .75 X .38	£4.14 £3.45
440	BP84002648 Available to backorder	Belt	£18.00 £15.00
450	SN703350 Available to backorder	Washer	£2.69 £2.24
18010	BP1667811SM Available to backorder	Spacer	£4.14 £3.45
18020	SN1760012YP Available to backorder	Idler Pulley	£44.92 £37.43
18030	BP84003365 Available to backorder	Idler Bracket	£41.05 £34.21
18040	BP2154534SM Available to backorder	Pulley Assembly Idler	£36.12 £30.10
18050	SN703333 Available to backorder	3/8-16 Nut	£2.98 £2.48
18060	BP703878 In stock	Flat Washer	Was £2.94 £2.45 Special Price £2.28 £1.90
18070	BP1960315SM Available to backorder	3/8-16 X 2 Carriage Bolt	£6.66 £5.55
