Snapper ELT17538RDF 1696111-00 Electrical Group

Name: Snapper ELT17538RDF 1696111-00 Electrical Group
SKU: elt17538rdf_1696111_00_electrical_group-group
Price: 0.3 GBP
Availability: OutOfStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper ELT17538RDF 1696111-00 Electrical Group

Description

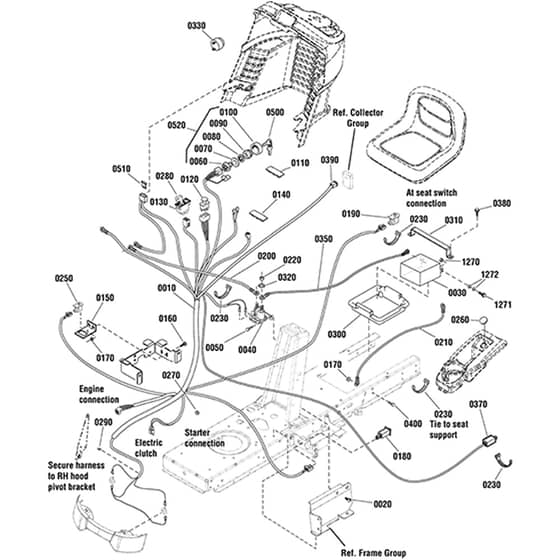

Snapper ELT17538RDF 1696111-00 - Electrical Group - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
10	BP885691YP Available to backorder	Wiring Harness	£143.16 £119.30
20	SN1930601 Available to backorder	Hex Washer Head	£2.56 £2.13
40	SN1728963 Available to backorder	Solenoid	£26.06 £21.72
50	SN1925003 Available to backorder	Screw-Hex Wshr Hd Taptt 1/4-20X0.500 Blk	£1.08 £0.90
70	SN2101025 Available to backorder	5/8 Washer	£0.62 £0.52
80	BP1960547SM Available to backorder	Internal Tooth	£3.64 £3.03
90	SN1717549 Available to backorder	Hex	£3.26 £2.72
100	SN1717550 Available to backorder	Ignition Cover	£2.84 £2.37
110	BP1729993SM Available to backorder	Hour Meter Plug	£4.76 £3.97
120	SY1722887SM Available to backorder	Pto	£31.72 £26.43

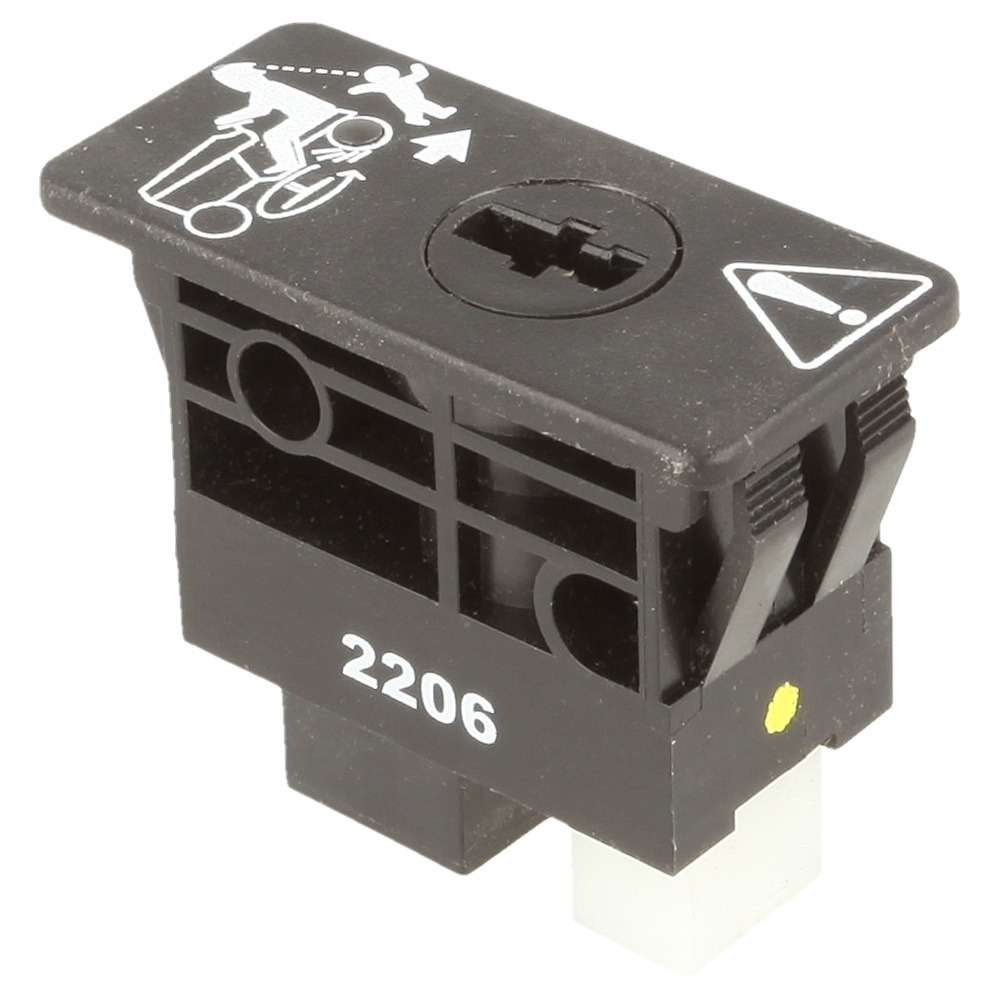

130	SN1726556 Available to backorder	Rmo Module Only Switch	£68.18 £56.82
140	SN1722611 Available to backorder	Hole	£5.20 £4.33
150	SY1728026ASM Available to backorder	Rmo Switch Support	£11.66 £9.72
160	SN1931333 Available to backorder	Carriage	£0.76 £0.63
170	BP703409 Available to backorder	Hex Flange	£2.88 £2.40
180	SN7022886YP Available to backorder	Push Button (No/Nc) Switch	£12.05 £10.04
190	BP7023354YP In stock	Seat (Normally Closed) Switch	£9.60 £8.00
200	SN1721830 Available to backorder	Solenoid To Starter Cable	£18.36 £15.30
210	SN1713163 Available to backorder	Battery To Ground Cable	£18.48 £15.40
220	BP2860750SM Available to backorder	Hex Lock	£2.80 £2.33
230	SN1701011 Available to backorder	Self Locking 7-5/16 Tie	£2.00 £1.67
250	SY1732004SM Available to backorder	Push Button	£9.41 £7.84
260	BP1732007SM Available to backorder	Hole Models W/O 12V Adapter Plug	£4.06 £3.38
270	SN1960294 Available to backorder	Hex	£0.36 £0.30
280	SY1726557SM Available to backorder	Rmo Module	£5.00 £4.17
290	BP2172434SM Available to backorder	Speed Wire Clip	£4.06 £3.38
300	BP885428YP Available to backorder	Battery Container	£25.98 £21.65
320	BP2820426SM Available to backorder	External Tooth	£3.19 £2.66
330	SN1720117 Available to backorder	Pulse	£68.80 £57.33
350	BP885616YP Available to backorder	Battery Cable	£40.40 £33.67
380	BP703228 Available to backorder	Hex Wshr Hd Taptt5/16-18X0.750Blk Screw	£3.44 £2.87
390	BP885692YP Available to backorder	Bag Full Harness	£9.60 £8.00
400	SN7091811 Available to backorder	5 Bolt	£1.32 £1.10
500	SN1737837YP Available to backorder	Blister Pkkids+Mwrs Don'Tmix	£22.88 £19.07
520	SN1686734 Available to backorder	Ignition	£72.60 £60.50
