Snapper ELT17538RDF 1696111-00 Controls Group

Name: Snapper ELT17538RDF 1696111-00 Controls Group
SKU: elt17538rdf_1696111_00_controls_group-group
Price: 0.4 GBP
Availability: OutOfStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Snapper ELT17538RDF 1696111-00 Controls Group

Description

Snapper ELT17538RDF 1696111-00 - Controls Group - Parts Diagram

Be the first to review this product

0 product questions

	Part No.	Details
60	SN1727261 Available to backorder	Brake Pedal	£4.54 £3.78
70	BP703158 Available to backorder	Hex Flange 3/8-16 Esna Blk Nut	£2.88 £2.40
80	BP885410AYP Available to backorder	Idler Front Movable Bracket	£28.14 £23.45
90	SN1760012YP Available to backorder	Idler Pulley	£44.92 £37.43
100	SN1931352 Available to backorder	3/8-16 X 1-1/2 Carriage Bolt	£2.80 £2.33
110	SN1721675 Available to backorder	Foot Pedal	£12.64 £10.53
120	SN1727259 Available to backorder	Foot Pedal	£5.10 £4.25
130	SN1727267 Available to backorder	Parking Brake	£18.42 £15.35
150	BP1728111SM Available to backorder	Linkage	£5.60 £4.67

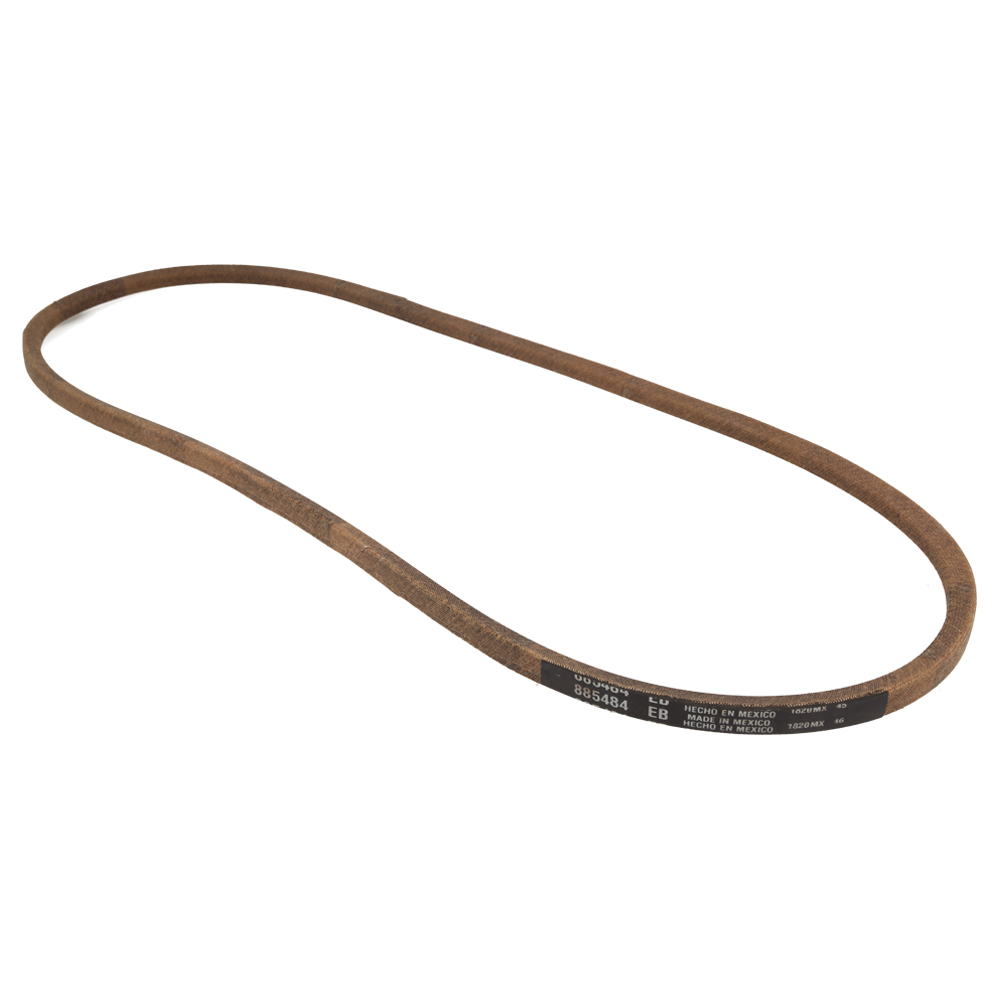

190	SN885484YP Available to backorder	Primary	£68.04 £56.70
200	BP885565YP Available to backorder	Backside Idler	£75.11 £62.59
210	SN1921971 Available to backorder	Hex Head	£2.86 £2.38
220	BP885534YP Available to backorder	Belt Guide	£12.32 £10.27
230	BP885421YP Available to backorder	Extension Spring	£12.46 £10.38
240	BP885426YP Available to backorder	Secondary Stack Pulley	£109.92 £91.60
250	BP885577YP Available to backorder	Carriage	£5.88 £4.90
260	SY1729620SM Available to backorder	Extension Spring	£7.61 £6.34
270	BP885683YP Out of stock	Clutch Rod	£10.16 £8.47
280	BP7091809YP Available to backorder	Cotter Pin	£3.64 £3.03
300	BP1960103SM Available to backorder	Washer	£3.30 £2.75
310	BP885684BMYP Available to backorder	Stack Pulley	£42.50 £35.42
320	BP703228 Available to backorder	Hex Wshr Hd Taptt5/16-18X0.750Blk Screw	£3.44 £2.87
330	BP885575YP Available to backorder	Spacer	£7.70 £6.42
340	SN1931942 Available to backorder	Push Pal	£0.96 £0.80
350	SN1721995 Available to backorder	Extension Spring	£13.40 £11.17
360	BP885685BMYP Available to backorder	Stack Pulley	£35.92 £29.93
370	SN1918447 Available to backorder	Cotter 3/32 X3/4 Pin	£0.48 £0.40
380	SN720142 Available to backorder	Centerlock	£0.66 £0.55
