SLM 132e Kit - 2024-2025 - 291302068/STX - Stiga Rotary Mower Walk Behind Diagram

Name: SLM 132e Kit - 2024-2025 - 291302068/STX - Stiga Rotary Mower Walk Behind Diagram
SKU: slm_132e_kit_291302068_stx_walk_behind-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SLM 132e Kit - 2024-2025 - 291302068/STX - Stiga Rotary Mower Walk Behind Diagram

Description

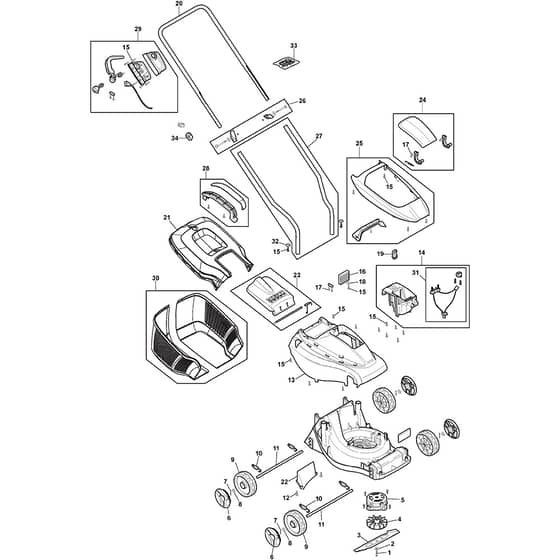

Stiga SLM 132e Kit Parts Diagram

Product Name - SLM 132e Kit

Model Year - 2024-2025

Model Type - E 300 LI 20 S

Art.N - 291302068/STX

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118811089/0 Available to backorder	Blade Bolt	£1.69 £1.41
2	MO112585100/0 Available to backorder	Grower	£1.55 £1.29
3	MO118811090/0 Available to backorder	Blade	£12.12 £10.10
4	MO118811091/0 Available to backorder	Blade Hub	£5.12 £4.27
5	MO118811092/0 Available to backorder	Electric Motor	£109.79 £91.49
6	MO118811093/0 Available to backorder	Hub Cap	£2.95 £2.46
7	MO124487995/0 Available to backorder	Cotter Pin	£1.55 £1.29
8	MO112521360/0 In stock	Washer	£1.55 £1.29
9	MO118811087/0 Available to backorder	Wheel	£13.93 £11.61
10	MO118811094/0 Available to backorder	Spring	£3.79 £3.16
11	MO118811095/0 Available to backorder	Wheel Axle	£19.57 £16.31
13	MO118811096/0 Available to backorder	Engine Cover	£25.12 £20.93
14	MO118811097/0 Available to backorder	Battery Housing	£11.18 £9.32
15	MO112728099/1 Available to backorder	Screw	£1.55 £1.29
16	MO118811098/0 Available to backorder	Pcb Board	£76.02 £63.35
17	MO123878121/0 Available to backorder	Screw	£1.69 £1.41
18	MO2312150 Available to backorder	Washer	£1.33 £1.11
19	MO118811099/0 Available to backorder	Safety Key	£5.35 £4.46
20	MO118811100/0 Available to backorder	Upper Handle	£27.46 £22.88
21	MO118811163/0 Available to backorder	Grasscatcher Upper Part	£14.35 £11.96
22	MO118811101/0 Available to backorder	Conveyor	£6.19 £5.16
23	MO118811164/0 Available to backorder	Stoneguard Assy	£11.53 £9.61
24	MO118811165/0 Available to backorder	Battery Cover Kit	£8.17 £6.81
25	MO118811166/0 Available to backorder	Aesthetic Covers Kit	£12.60 £10.50
26	MO118811167/0 Available to backorder	Handle Knobs Kit	£2.54 £2.12
27	MO118811168/0 Available to backorder	Lower Handle Kit	£12.60 £10.50
28	MO118811169/0 Available to backorder	Grasscatcher Handle Kit	£4.22 £3.52
29	MO118811170/0 In stock	Dead Hand Switch Assy	£26.18 £21.82
30	MO118811171/0 Available to backorder	Grasscatcher Lower Part Kit	£30.97 £25.81
31	MO118811176/0 Available to backorder	Battery Connection Assy	£11.12 £9.27
33	MO118811167/1 Available to backorder	Handle Knobs Kit Includes pos. 15. 26. 32 + Cable Clamp	£2.68 £2.23
34	MO118811489/0 Available to backorder		£4.33 £3.61
