Silex 95 H - 2010-2025 - 219510032/10 - Stiga Tiller Front adjustable brush 105 cm Diagram

Name: Silex 95 H - 2010-2025 - 219510032/10 - Stiga Tiller Front adjustable brush 105 cm Diagram
SKU: silex_95_h_219510032_10_front_adjustable_brush_105_cm-group
Price: 1.16 GBP
Availability: InStock

Part No. silex_95_h_219510032_10_front_adjustable_brush_105_cm-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Silex 95 H - 2010-2025 - 219510032/10 - Stiga Tiller Front adjustable brush 105 cm Diagram

Description

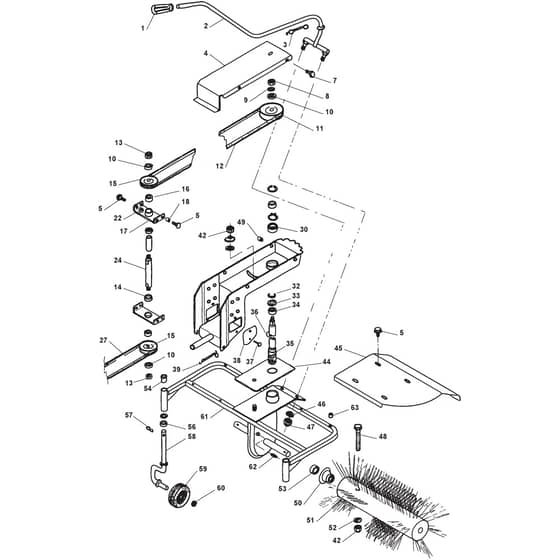

Stiga Silex 95 H Parts Diagram

Product Name - Silex 95 H

Model Year - 2010-2025

Model Type - 95 H

Art.N - 219510032/10

Engine Model -

	Part No.	Details
1	MO118800145/0 Available to backorder	Knob	£5.92 £4.93
2	MO118800146/0 Available to backorder	Handle	£93.36 £77.80
3	MO118800015/0 Available to backorder	Spring	£9.34 £7.78
4	MO118800147/0 Available to backorder	Protection	£104.18 £86.82
5	MO112800815/0 Available to backorder	Screw	£1.63 £1.36
7	MO9959-0616-16 Available to backorder	Screw	£1.55 £1.29
8	MO112295300/0 Available to backorder	Nut	£1.63 £1.36
11	MO1483-2082-01 Available to backorder	Pulley	£42.22 £35.18

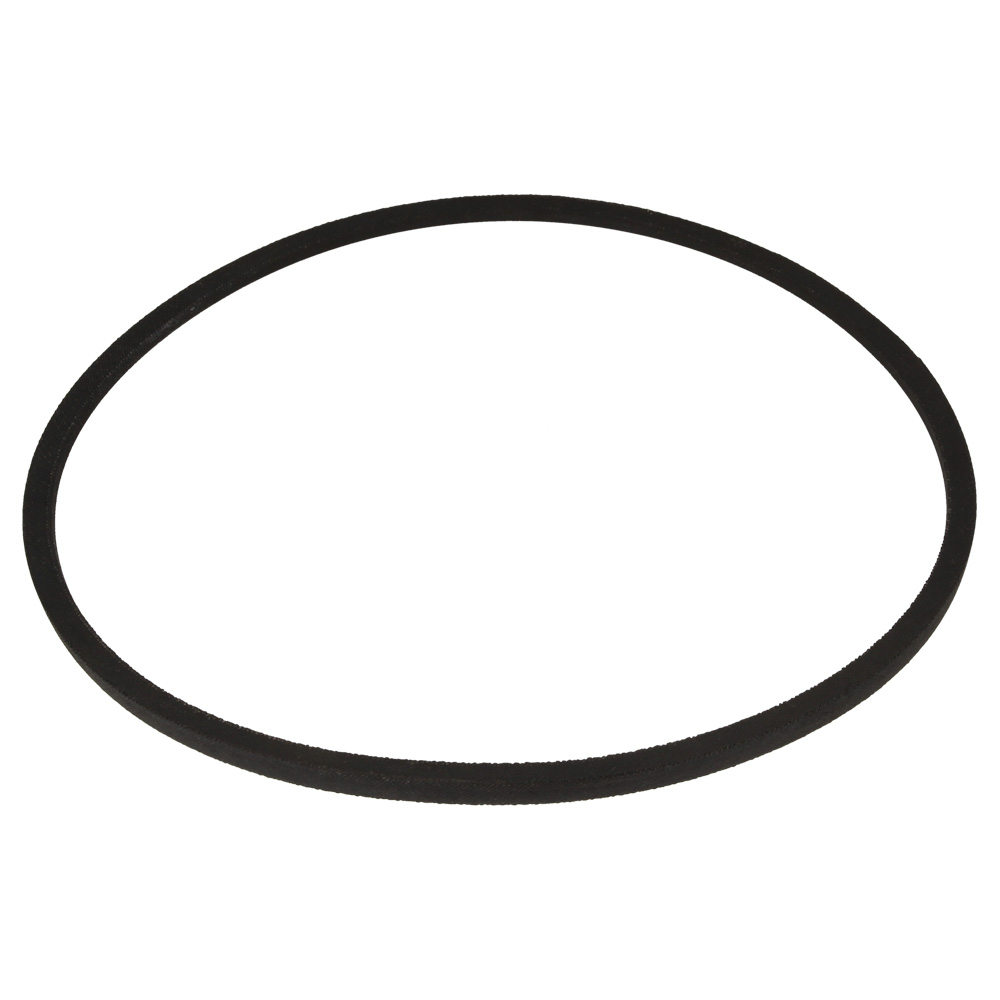

12	MO118800023/0 Available to backorder	Belt	£25.22 £21.02
14	MO119216056/0 In stock	Bearing	£22.25 £18.54
15	MO1483-2325-01 Available to backorder	Pulley	£14.93 £12.44
16	MO118800051/0 Available to backorder	Spacer	£9.25 £7.71
17	MO118800058/0 Available to backorder	Support	£14.64 £12.20
18	MO1483-2108-01 Available to backorder	Spacer	£2.14 £1.78
22	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
24	MO118800150/0 Available to backorder	Pin	£32.10 £26.75
27	MO118800024/0 Available to backorder	Belt	£15.23 £12.69
30	MO1483-2192-01 Available to backorder	Ball Bearing	£32.38 £26.98
33	MO1483-2000-01 Available to backorder	Spacer	£1.70 £1.42
36	MO118800151/0 Available to backorder	Shaft	£1.70 £1.42
37	MO9847-8016-16 Available to backorder	Screw	£1.97 £1.64
39	MO118800025/0 Available to backorder	Spring	£16.48 £13.73
42	MO112156602/0 In stock	Lock Nut	£1.39 £1.16
44	MO118800282/0 Available to backorder	Plate	£38.00 £31.67
45	MO118800289/0 Available to backorder	Protection	£104.86 £87.38
45	MO118800288/0 Available to backorder	Protection	£105.58 £87.98
46	MO9699-0121-02 Available to backorder	Washer	£1.97 £1.64
47	MO9747-1231-02 Available to backorder	Nut	£1.78 £1.48
48	MO112794985/0 Available to backorder	Screw	£4.08 £3.40
49	MO1483-2190-01 Available to backorder	Nut	£1.62 £1.35
51	MO118800283/0 Available to backorder	Brush	£389.36 £324.47
52	MO112521360/0 In stock	Washer	£1.55 £1.29
53	MO1483-2070-01 Available to backorder	Oil Seal	£7.97 £6.64
57	MO9598-0002-02 Available to backorder	Elastic Pin	£1.55 £1.29
58	MO118800155/0 Available to backorder	Right Support	£46.16 £38.47
58	MO118800156/0 Available to backorder	Left Support	£46.16 £38.47
59	MO118800157/0 Available to backorder	Wheel	£11.54 £9.62
60	MO1483-2195-01 Available to backorder	Washer	£4.24 £3.53
61	MO118800287/0 Available to backorder	Chassis	£823.52 £686.27
62	MO1483-2075-01 Available to backorder	Cap	£3.66 £3.05
63	MO1483-2191-01 Available to backorder	Nut	£1.55 £1.29
