SILEX 87 B - 2021-2022 - 210870022/ST1 - Stiga Scythe Transmission Diagram

Description

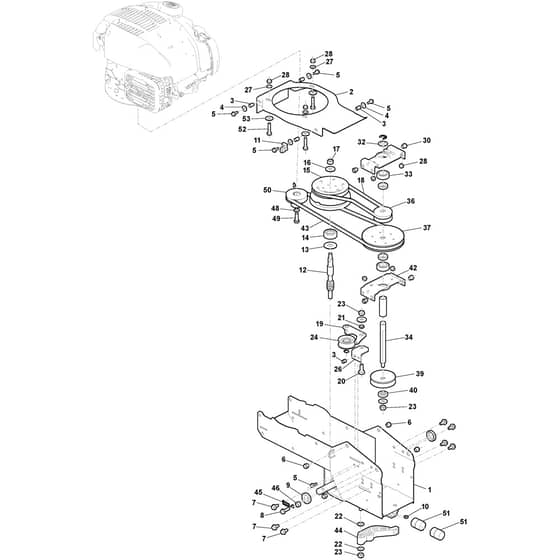

Stiga SILEX 87 B Parts Diagram

Product Name - SILEX 87 B

Model Year - 2021-2022

Model Type - MFL03

Art.N - 210870022/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO118850493/0 Available to backorder	Frame. Yellow	£297.06 £247.55
2	MO1483-2347-01 Available to backorder	Protection Cover Yellow	£35.20 £29.33
3	MO1483-2190-01 Available to backorder	Nut	£1.62 £1.35
4	MO112521330/0 Available to backorder	Washer	£1.55 £1.29
5	MO9959-0620-16 Available to backorder	Screw	£1.97 £1.64
6	MO1483-2108-01 Available to backorder	Spacer	£2.15 £1.79
7	MO9959-0820-16 In stock	Screw	£1.55 £1.29
8	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
9	MO1483-2069-01 Available to backorder	Oil Seal	£8.87 £7.39
10	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
12	MO118850473/0 Available to backorder	Worm	£35.20 £29.33
14	MO1483-2071-01 Available to backorder	Ball Bearing	£24.19 £20.16
15	MO118850474/0 Available to backorder	Double Pulley	£47.87 £39.89
18	MO118850475/0 Available to backorder	Belt	£58.00 £48.33
20	MO9959-1025-16 Available to backorder	Screw	£2.68 £2.23
23	MO112156602/0 In stock	Nut	£1.40 £1.17
24	MO118850476/0 Available to backorder	Belt Tensioner Pulley	£26.17 £21.81
26	MO118800508/0 Available to backorder	Support	£6.76 £5.63
28	MO112293200/0 In stock	Nut	£1.55 £1.29
30	MO1483-2191-01 Available to backorder	Nut	£1.55 £1.29
32	MO1483-2210-01 Available to backorder	Spacer	£2.40 £2.00
33	MO119216056/0 In stock	Bearing	£22.25 £18.54
34	MO118850477/0 Available to backorder	Shaft	£16.75 £13.96
36	MO118850478/0 Available to backorder	Pulley	£21.54 £17.95
37	MO1483-2326-01 Available to backorder	Pulley	£25.20 £21.00
39	MO1483-2325-01 Available to backorder	Pulley	£14.92 £12.43
42	MO118800058/0 Available to backorder	Support	£14.64 £12.20
43	MO1483-2352-01 Available to backorder	Belt	£24.07 £20.06
44	MO1483-2332-01 Available to backorder	Lever	£10.56 £8.80
45	MO118800048/0 Available to backorder	Spring Rear Cover	£5.76 £4.80
48	MO112521360/0 In stock	Washer	£1.55 £1.29
49	MO9987-5225-16 Available to backorder	Screw	£1.97 £1.64
50	MO118850479/0 Available to backorder	Engine Pulley	£50.68 £42.23
51	MO118800499/0 Available to backorder	Bushing	£4.37 £3.64
52	MO112793600/0 Available to backorder	Screw	£1.55 £1.29
53	MO112521350/0 Available to backorder	Washer	£1.55 £1.29
