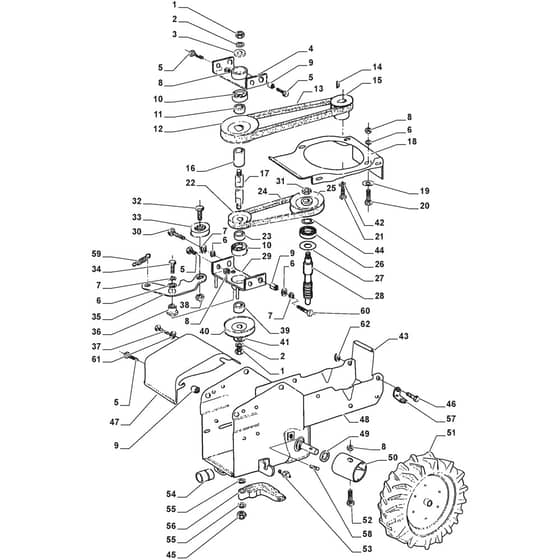

SILEX 87 B - 2009-2022 - 210870022/09 - Stiga Scythe Transmission Diagram

Description

Stiga SILEX 87 B Parts Diagram

Product Name - SILEX 87 B

Model Year - 2009-2022

Model Type - M 85

Art.N - 210870022/09

Engine Model -

	Part No.	Details
1	MO112295200/0 In stock	Nut	£1.39 £1.16
2	MO9678-0011-02 Available to backorder	Washer	£1.55 £1.29
4	MO118800058/0 Available to backorder	Support	£14.64 £12.20
5	MO112800815/0 Available to backorder	Screw	£1.63 £1.36
7	MO112521350/0 In stock	Washer	£1.55 £1.29
8	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
9	MO1483-2108-01 Available to backorder	Spacer	£2.14 £1.78
10	MO119216056/0 In stock	Bearing	£22.25 £18.54
11	MO118800057/0 Available to backorder	Spacer	£7.62 £6.35
12	MO1483-2326-01 Available to backorder	Pulley	£25.20 £21.00
13	MO1483-2352-01 Available to backorder	Belt	£24.06 £20.05
14	MO112139100/0 In stock	Key	£1.55 £1.29
15	MO118800056/0 Available to backorder	Pulley	£52.08 £43.40
16	MO118800311/0 Available to backorder	Spacer	£7.25 £6.04
17	MO1483-2353-01 Available to backorder	Shaft	£30.77 £25.64
18	MO1483-2347-01 Available to backorder	Protection Cover Yellow	£35.20 £29.33
19	MO9699-0122-02 Available to backorder	Washer	£1.55 £1.29
21	MO9987-5225-16 Available to backorder	Screw	£1.97 £1.64
22	MO118800505/0 Available to backorder	Pulley	£29.57 £24.64
23	MO118800312/0 Available to backorder	Spacer	£8.00 £6.67
24	MO1483-2350-01 Available to backorder	Belt	£14.46 £12.05
25	MO1483-2354-01 Available to backorder	Pulley	£39.42 £32.85
26	MO1483-2071-01 Available to backorder	Ball Bearing	£18.94 £15.78
28	MO118800310/0 Available to backorder	Screw	£39.42 £32.85
29	MO118800316/0 Available to backorder	Support	£24.06 £20.05
30	MO112691115/0 Available to backorder	Screw	£1.55 £1.29
31	MO112295300/0 Available to backorder	Nut	£1.63 £1.36
32	MO9997-1230-16 Available to backorder	Screw	£2.11 £1.76
33	MO1483-2004-01 Available to backorder	Pulley	£26.59 £22.16
34	MO9997-0816-16 In stock	Screw	£1.55 £1.29
37	MO9959-0825-16 Available to backorder	Screw	£1.55 £1.29
38	MO9747-1231-02 Available to backorder	Nut	£1.78 £1.48
39	MO118800051/0 Available to backorder	Spacer	£9.25 £7.71
40	MO1483-2325-01 Available to backorder	Pulley	£14.93 £12.44
41	MO9699-0105-02 Available to backorder	Washer	£1.55 £1.29
45	MO112156602/0 In stock	Lock Nut	£1.39 £1.16
46	MO9997-0620-16 Available to backorder	Screw	£1.63 £1.36
48	MO118800503/0 Available to backorder	Chassis. Yellow	£318.29 £265.24
49	MO1483-2069-01 Available to backorder	Oil Seal	£8.86 £7.38
50	MO1483-2363-01 Available to backorder	Protection	£10.88 £9.07
51	MO118805285/0 Available to backorder	Solid Wheels Kit (Rh+Lh) From 01-3-2020	£218.21 £181.84
51	MO118800061/0 Available to backorder	Right Wheel To 29-2-2020	£218.21 £181.84
53	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
54	MO118800499/0 Available to backorder	Bushing	£4.37 £3.64
55	MO112521360/0 In stock	Washer	£1.55 £1.29
56	MO1483-2332-01 Available to backorder	Lever	£10.56 £8.80
58	MO1483-2075-01 Available to backorder	Cap	£3.66 £3.05
59	MO1483-2207-01 Available to backorder	Spring	£3.92 £3.27
60	MO112691100/0 Available to backorder	Screw	£1.63 £1.36
61	MO112523060/0 In stock	Washer	£1.55 £1.29
62	MO112521460/0 Available to backorder	Flat Washer	£1.40 £1.17
