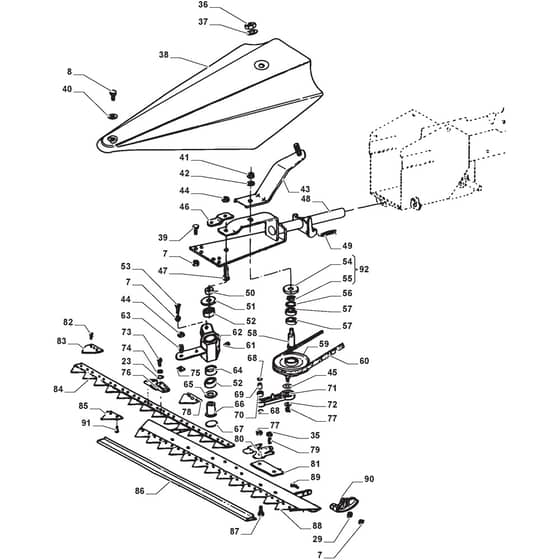

SILEX 87 B - 2009-2022 - 210870022/09 - Stiga Scythe Blade Diagram

Name: SILEX 87 B - 2009-2022 - 210870022/09 - Stiga Scythe Blade Diagram
SKU: silex_87_b_210870022_09_blade-group
Price: 1.29 GBP
Availability: InStock

Part No. silex_87_b_210870022_09_blade-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SILEX 87 B - 2009-2022 - 210870022/09 - Stiga Scythe Blade Diagram

Description

Stiga SILEX 87 B Parts Diagram

Product Name - SILEX 87 B

Model Year - 2009-2022

Model Type - M 85

Art.N - 210870022/09

Engine Model -

	Part No.	Details
7	MO112155000/0 In stock	Lock Nut	£1.55 £1.29
8	MO112800815/0 Available to backorder	Screw	£1.63 £1.36
23	MO118800376/0 Available to backorder	Spacer	£1.69 £1.41
29	MO9699-0122-02 Available to backorder	Washer	£1.55 £1.29
35	MO112293200/0 In stock	Nut	£1.55 £1.29
36	MO9747-1231-02 Available to backorder	Nut	£1.78 £1.48
37	MO9699-0121-02 Available to backorder	Washer	£1.97 £1.64
38	MO1483-2343-01 Available to backorder	Guard	£46.48 £38.73
39	MO112793102/0 In stock	Screw	£1.55 £1.29
40	MO112523060/0 In stock	Washer	£1.55 £1.29
41	MO9747-1631-02 Available to backorder	Nut	£1.97 £1.64
42	MO112521390/0 Available to backorder	Washer	£1.84 £1.53
43	MO118800330/0 Available to backorder	Clamp	£30.98 £25.82
44	MO118800375/0 Available to backorder	Nut	£2.94 £2.45
45	MO118800317/0 Available to backorder	Spacer	£2.69 £2.24
47	MO118800386/0 Available to backorder	Screw	£6.64 £5.53
48	MO118802044/0 Available to backorder	Support Yellow	£147.79 £123.16
49	MO118800025/0 Available to backorder	Spring	£16.48 £13.73
50	MO118800307/0 Available to backorder	Spacer	£6.19 £5.16
51	MO118800308/0 Available to backorder	Dust Cover	£6.05 £5.04
52	MO118800370/0 Available to backorder	Needle Bearing	£17.46 £14.55
53	MO118800532/0 Available to backorder	Screw	£2.69 £2.24
55	MO118805188/0 Available to backorder	Spacer	£10.98 £9.15
56	MO118800359/0 Available to backorder	Seeger	£2.82 £2.35
57	MO118800369/1 Available to backorder	Bearing	£13.68 £11.40
58	MO118800303/0 Available to backorder	Pin	£36.59 £30.49
59	MO118850455/0 Available to backorder	Pulley	£115.42 £96.18
60	MO1483-2351-01 In stock	Belt	£19.36 £16.13
61	MO112379511/0 Available to backorder	Grease Dispenser	£1.55 £1.29
62	MO1483-2366-01 Available to backorder	Equalizer	£87.28 £72.73
63	MO118800306/0 Available to backorder	Screw	£23.10 £19.25
64	MO118800304/0 Available to backorder	Spacer	£5.76 £4.80
66	MO1483-2328-01 Available to backorder	Pin	£46.48 £38.73
67	MO118800366/0 Available to backorder	Or Ring	£1.70 £1.42
68	MO118800365/0 Available to backorder	Or Ring	£1.70 £1.42
69	MO118800305/0 Available to backorder	Bushing	£9.42 £7.85
70	MO118800367/0 Available to backorder	Needle Bearing	£14.93 £12.44
