SHP 60 - 2012-2014 - 252961002/12 - Stiga Hedge Trimmer Housing Starter Fuel Tank Diagram

Name: SHP 60 - 2012-2014 - 252961002/12 - Stiga Hedge Trimmer Housing Starter Fuel Tank Diagram
SKU: shp_60_252961002_12_housing_starter_fuel_tank-group
Price: 1.02 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SHP 60 - 2012-2014 - 252961002/12 - Stiga Hedge Trimmer Housing Starter Fuel Tank Diagram

Description

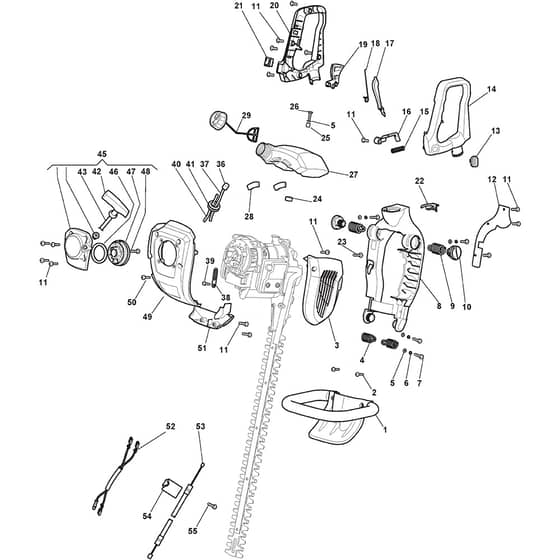

Stiga SHP 60 Parts Diagram

Product Name - SHP 60

Model Year - 2012-2014

Model Type - H 60

Art.N - 252961002/12

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO123300014/0 In stock	Front Handle	£10.84 £9.03
3	MO118801428/0 Available to backorder	Muffler Cover. Yellow	£8.29 £6.91
4	MO123430606/0 Available to backorder	Spring	£1.69 £1.41
5	MO123657022/0 Available to backorder	Washer	£1.40 £1.17
6	MO123657017/0 Available to backorder	Washer	£2.26 £1.88
8	MO123784008/0 Available to backorder	Case	£17.10 £14.25
9	MO123430607/0 Available to backorder	Spring	£1.69 £1.41
10	MO123790023/0 Available to backorder	Cap. Yellow	£1.55 £1.29
10	MO118801431/0 Available to backorder	Cap. Grey	£1.55 £1.29
11	MO123878121/0 Available to backorder	Screw	£1.69 £1.41
13	MO118801432/0 Available to backorder	Knob	£1.55 £1.29
15	MO118801433/0 Available to backorder	Spring	£1.40 £1.17
16	MO123315099/0 Available to backorder	Lever	£1.40 £1.17
17	MO118801434/0 Available to backorder	Safety Lever. Black	£1.82 £1.52
18	MO123430609/0 In stock	Spring	£1.33 £1.11
19	MO118801436/0 Available to backorder	Throttle Lever. Black	£1.69 £1.41
20	MO118804986/0 Available to backorder	Right Handgrip	£78.84 £65.70
21	MO123303007/0 Available to backorder	Switch	£1.97 £1.64
22	MO123202008/0 Available to backorder	Retainer	£1.33 £1.11
23	MO123878115/0 Available to backorder	Screw	£1.55 £1.29
24	MO123657023/0 Available to backorder	Grommet	£1.40 £1.17
25	MO123044223/0 Available to backorder	Bushing	£1.33 £1.11
26	MO123878124/0 Available to backorder	Screw	£1.69 £1.41
27	MO118804987/1 Available to backorder	Fuel Tank	£30.97 £25.81
28	MO123275031/0 Available to backorder	Grommet	£1.33 £1.11
29	MO118801439/1 In stock	Fuel Cap	£9.20 £7.67
36	MO183520009/0 In stock	Intake Filter	£5.48 £4.57
37	MO123867028/0 In stock	Tube	£1.55 £1.29
38	MO1232940080 Available to backorder	Fairlead Guide	£1.40 £1.17
40	MO123867029/0 In stock	Tube	£1.55 £1.29
41	MO123275032/0 In stock	Grommet	£1.40 £1.17
42	MO118801440/0 Available to backorder	Starter Handle	£3.10 £2.58
43	MO123234007/0 Available to backorder	Starter Cord	£2.53 £2.11

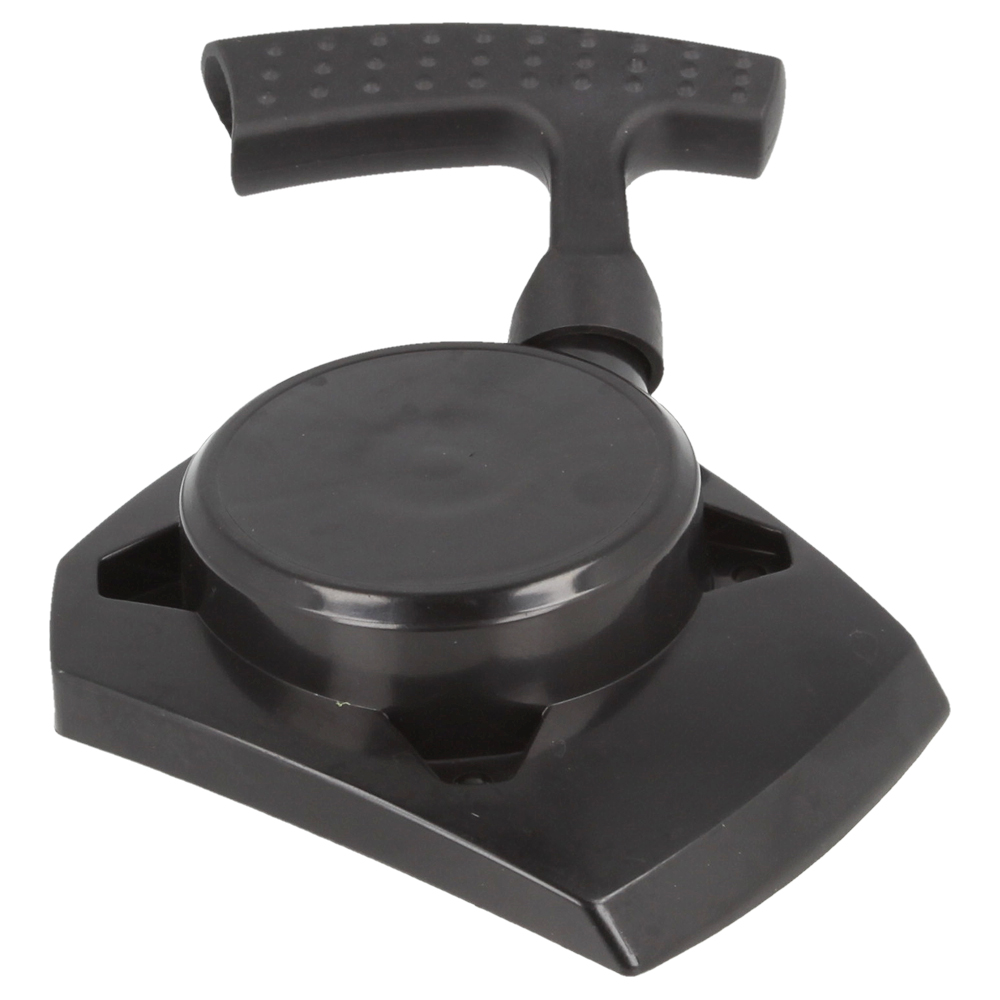

45	MO118801449/1 Available to backorder	Starter Assy Black	£13.93 £11.61
46	MO123430610/0 Available to backorder	Starter Spring	£3.38 £2.82
47	MO123604013/0 Available to backorder	Starter Pulley	£2.68 £2.23
48	MO112728445/0 Available to backorder	Screw	£1.55 £1.29
50	MO9943-0516-16 In stock	Screw	£1.22 £1.02
51	MO118801444/0 Available to backorder	Yellow Front Cylinder Cover	£3.10 £2.58
52	MO183065030/0 Available to backorder	Spark Plug Cable	£1.55 £1.29

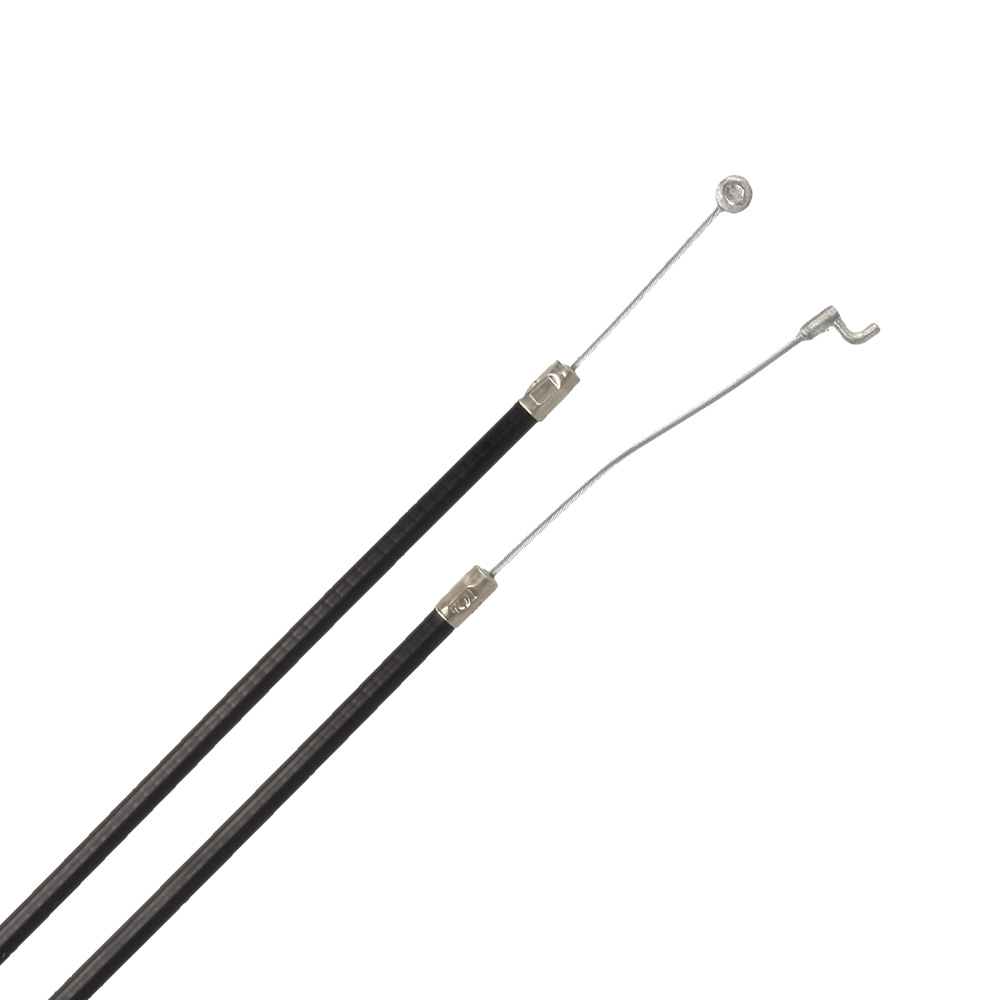

53	MO118801447/0 Available to backorder	Throttle Cable	£6.47 £5.39
54	MO118801448/0 Available to backorder	Cable Retainer	£3.24 £2.70
55	MO112726389/0 Available to backorder	Screw	£1.49 £1.24
