SGT 600 - 2011-2013 - 252060002/11 - Stiga Trimmer Trimmer Diagram

Name: SGT 600 - 2011-2013 - 252060002/11 - Stiga Trimmer Trimmer Diagram
SKU: sgt_600_252060002_11_trimmer-group
Price: 1.11 GBP
Availability: InStock

Part No. sgt_600_252060002_11_trimmer-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SGT 600 - 2011-2013 - 252060002/11 - Stiga Trimmer Trimmer Diagram

Description

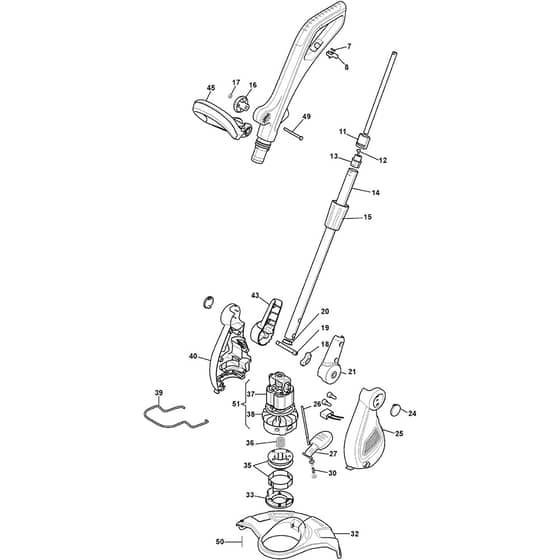

Stiga SGT 600 Parts Diagram

Product Name - SGT 600

Model Year - 2011-2013

Model Type - SGT 600

Art.N - 252060002/11

Engine Model -

	Part No.	Details
1	MO118800546/0 Available to backorder	Spring	£1.70 £1.42
8	MO118800547/0 Available to backorder	Button	£16.48 £13.73
11	MO118800548/0 Available to backorder	Bushing	£2.82 £2.35
12	MO118800549/0 Available to backorder	Retainer	£2.82 £2.35
13	MO118800550/0 Available to backorder	Bushing	£2.24 £1.87
14	MO118800551/0 Available to backorder	Handle Lower Part	£18.16 £15.13
15	MO118800552/0 Available to backorder	Nut	£5.22 £4.35
16	MO118800545/0 Available to backorder	Knob	£3.52 £2.93
17	MO112292100/0 Available to backorder	Nut	£1.39 £1.16
18	MO118800535/0 Available to backorder	Guide	£4.50 £3.75
19	MO118800534/0 Available to backorder	Rotation Shaft	£1.84 £1.53
20	MO118800553/0 Available to backorder	Oil Seal	£1.33 £1.11
21	MO118800554/0 Available to backorder	Case	£8.45 £7.04
24	MO118800555/0 Available to backorder	Cap	£1.33 £1.11
26	MO118800557/0 Available to backorder	Shaft	£1.70 £1.42
27	MO118800536/0 Available to backorder	Pedal	£3.66 £3.05
30	MO118800537/0 Available to backorder	Spring	£1.33 £1.11
32	MO118800558/0 Available to backorder	Safety Cover Ass.Y	£14.00 £11.67
33	MO1911-1628-01 Available to backorder	Knob	£8.66 £7.22

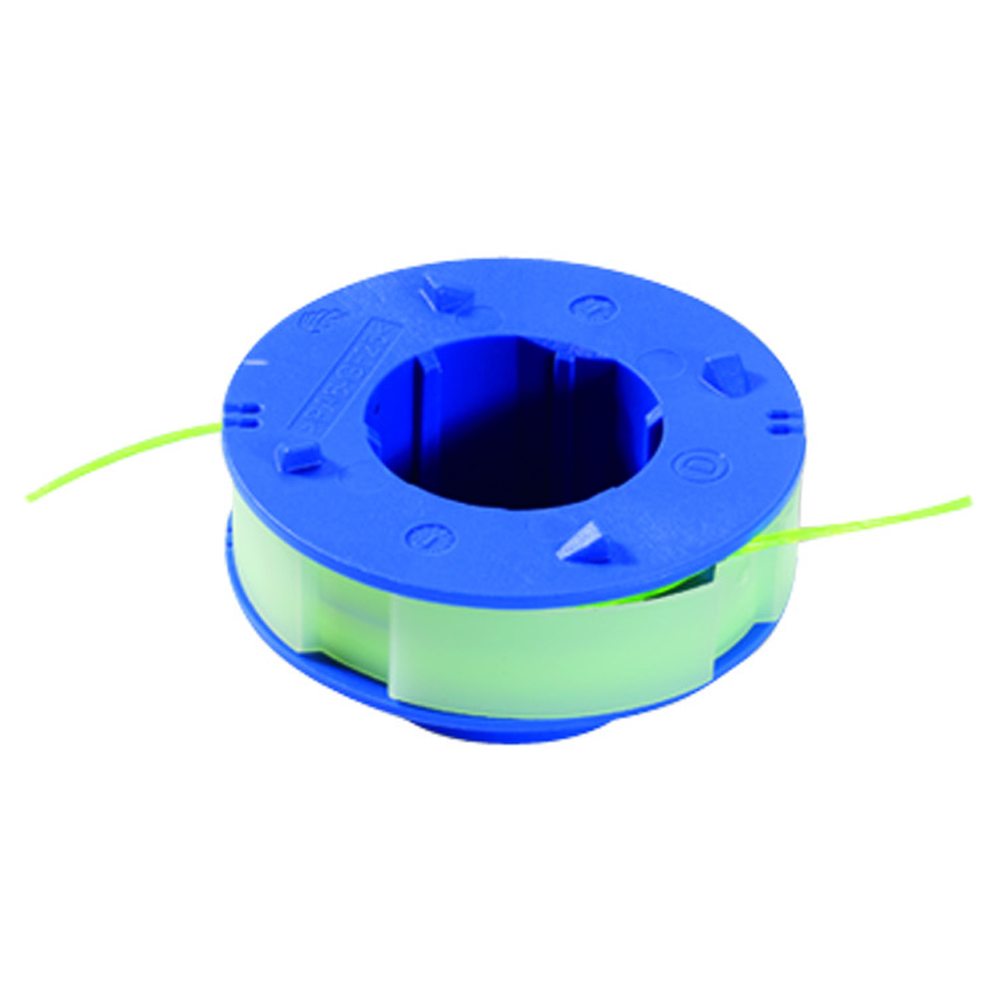

35	MO1911-9126-01 Available to backorder	Cutting Line Assy	£16.02 £13.35
36	MO118805064/0 Available to backorder	Spool Spring From 01-1-2017	£1.39 £1.16
37	MO118800539/0 Available to backorder	Engine	£73.20 £61.00
39	MO118800538/0 Available to backorder	Protection	£5.06 £4.22
40	MO118800559/0 Available to backorder	Case	£17.60 £14.67
43	MO118800560/0 Available to backorder	Case	£8.45 £7.04
45	MO118800543/0 Available to backorder	Front Handgrip Assy	£27.89 £23.24
49	MO2112100 Available to backorder	Screw	£1.38 £1.15
50	MO118802961/0 Available to backorder	Line Cutter Pin	£2.69 £2.24
51	MO118804953/0 Available to backorder	Electric Motor 600W	£73.20 £61.00
