SGT 48 AE - 2018-2019 - 271300108/ST1 - Stiga Trimmer Trimmer Diagram

Name: SGT 48 AE - 2018-2019 - 271300108/ST1 - Stiga Trimmer Trimmer Diagram
SKU: sgt_48_ae_271300108_st1_trimmer-group
Price: 1.11 GBP
Availability: InStock

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SGT 48 AE - 2018-2019 - 271300108/ST1 - Stiga Trimmer Trimmer Diagram

Description

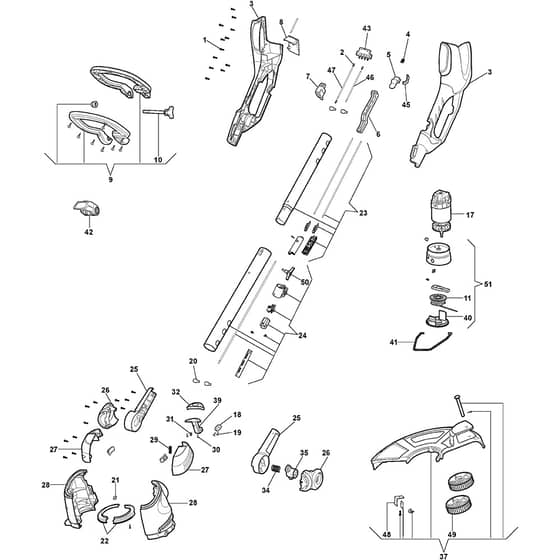

Stiga SGT 48 AE Parts Diagram

Product Name - SGT 48 AE

Model Year - 2018-2019

Model Type - TR 48 Li

Art.N - 271300108/ST1

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
1	MO112735645/0 Available to backorder	Screw	£1.82 £1.52
4	MO118803228/0 Available to backorder	Spring	£1.40 £1.17
6	MO118803462/0 Available to backorder	Switch. Yellow	£1.66 £1.38

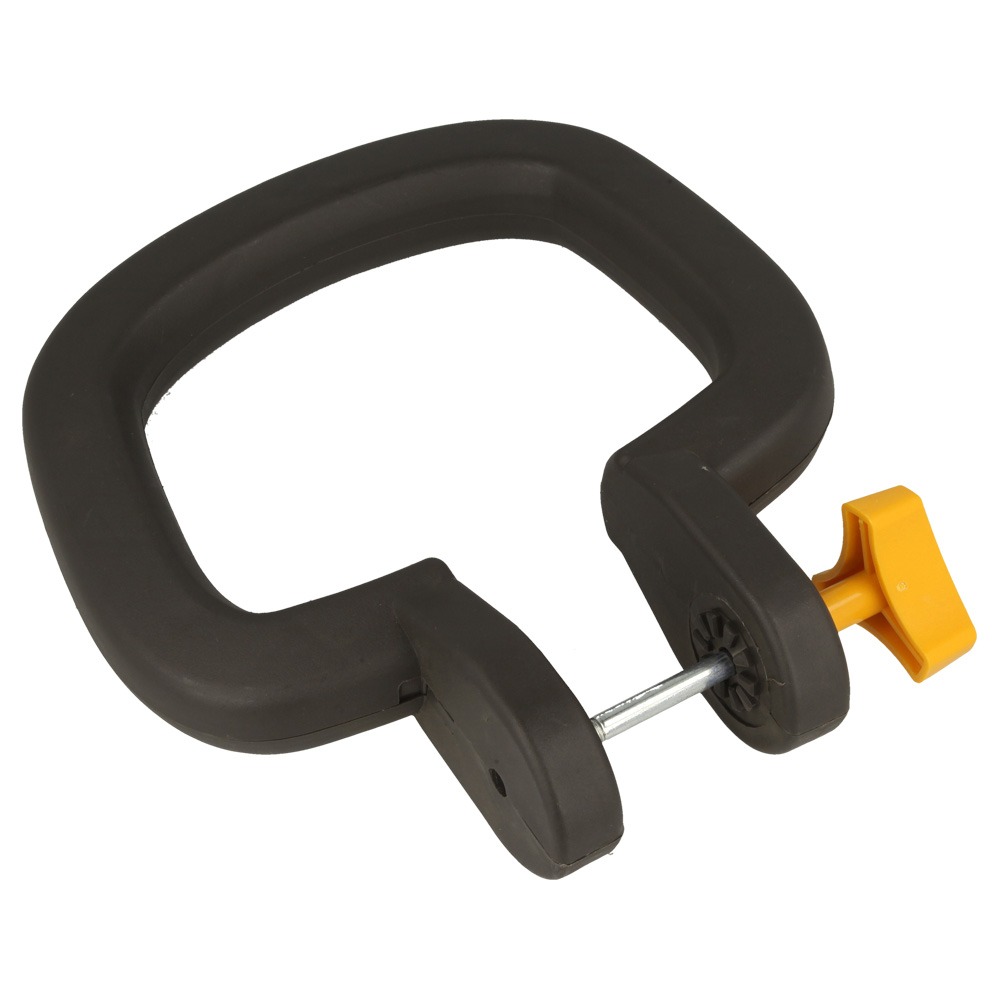

9	MO118810451/0 Available to backorder	Front Handle Assy. Yellow Knob	£9.22 £7.68
10	MO118810686/0 Available to backorder	Knob. Yellow	£9.08 £7.57

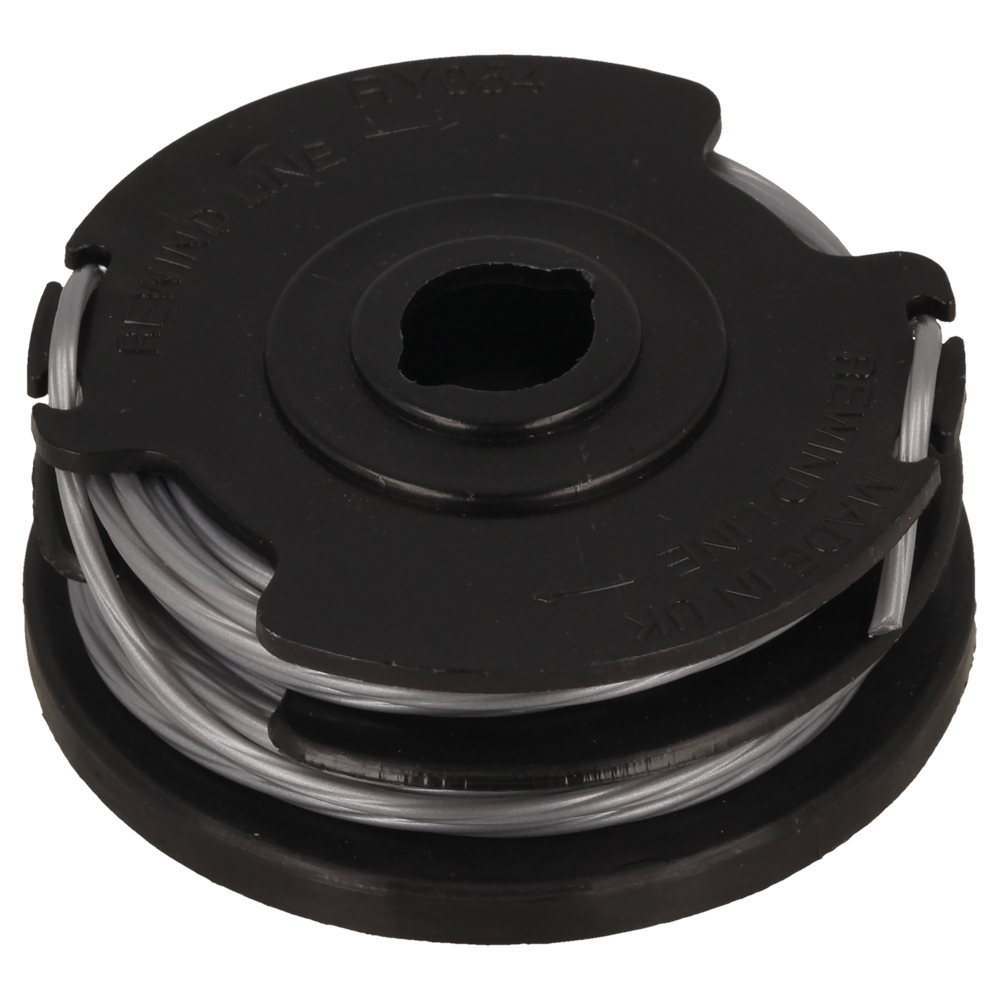

11	4511 In stock	Spool With Line	£4.44 £3.70
19	MO112727810/0 Available to backorder	Screw	£1.55 £1.29
22	MO118803372/0 Available to backorder	Ring	£1.33 £1.11
23	MO118804199/0 Available to backorder	Upper Shaft Assy	£22.38 £18.65
24	MO118804200/0 Available to backorder	Lower Shaft Assy. Yellow Knob	£33.79 £28.16
28	MO118804656/0 Available to backorder	Housing. Grey	£14.64 £12.20
29	MO118803288/0 Available to backorder	Spring	£1.33 £1.11
32	MO118810848/0 Available to backorder	Button. Yellow	£63.35 £52.79
35	MO118810751/1 Available to backorder	Button. Yellow	£21.40 £17.83
39	MO118804660/0 Available to backorder	Button Lever	£1.69 £1.41
42	MO118803429/0 Available to backorder	Clamp	£2.40 £2.00
43	MO118803304/0 Available to backorder	Insert Block	£7.25 £6.04
45	MO118804655/0 Available to backorder	Retaining Plate. Grey	£6.76 £5.63

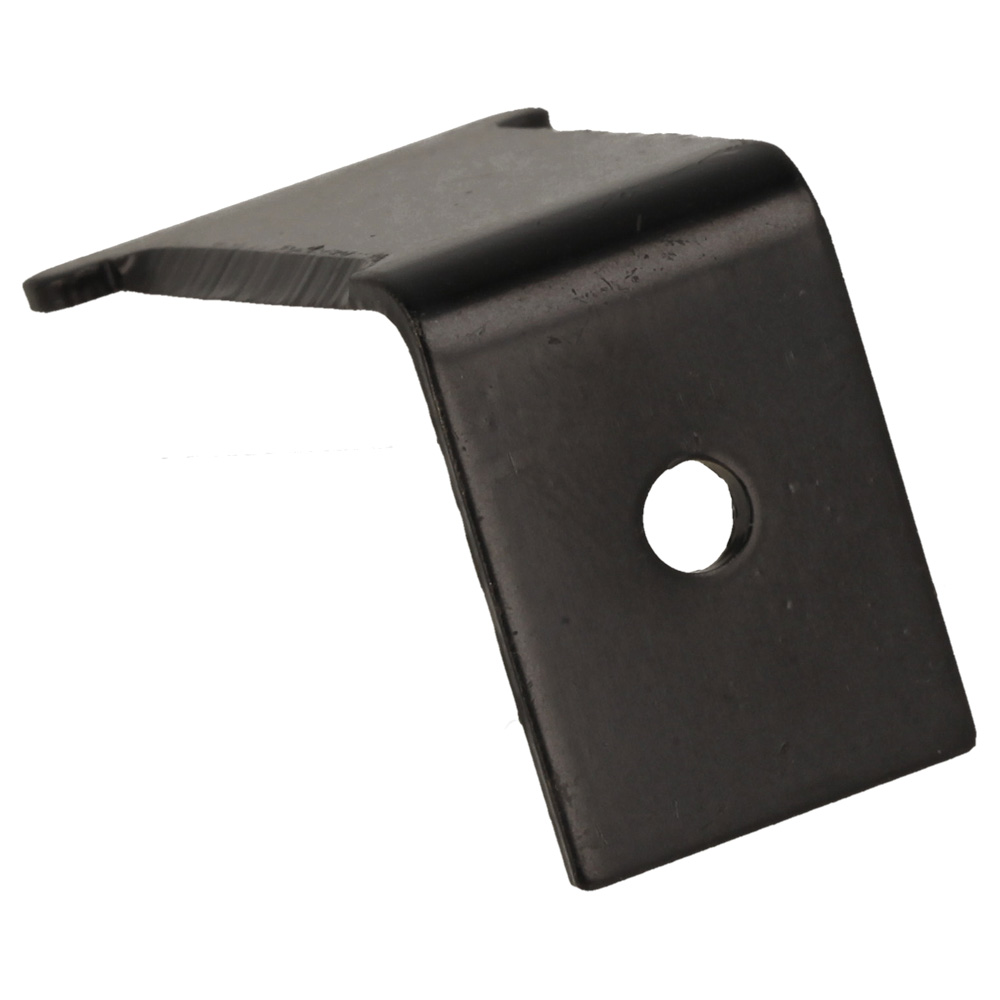

48	MO118804196/0 Available to backorder	Line Cutter Blade	£2.15 £1.79
50	MO118803425/0 Available to backorder	Knob. Yellow	£1.66 £1.38
