SE 182 - 2009 - 292914002/S75 - Stiga Chainsaw Chainsaw Diagram

Description

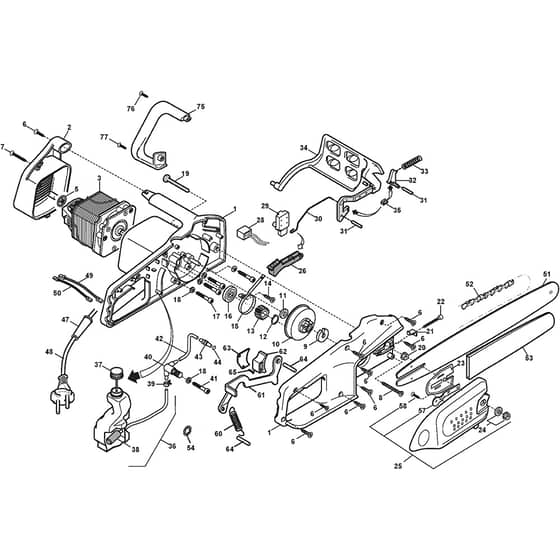

Stiga SE 182 Parts Diagram

Product Name - SE 182

Model Year - 2009

Model Type - Energy E 1.8

Art.N - 292914002/S75

Engine Model -

Be the first to review this product

0 product questions

	Part No.	Details
3	MO8251900 Available to backorder	Electric Motor	£121.07 £100.89
9	MO3614300 Available to backorder	Side Plate	£5.82 £4.85
10	MO8562940 Available to backorder	Gear Assy	£25.40 £21.17
12	MO3353020 Available to backorder	Seeger Ring	£1.40 £1.17
13	MO3660580 Available to backorder	Pinion	£4.57 £3.81
15	MO3614690 Available to backorder	Brake Band	£10.98 £9.15
17	MO2135040 Available to backorder	Screw	£1.38 £1.15
18	MO2312090 Available to backorder	Flat Washer	£1.33 £1.11
20	MO2670120 Available to backorder	Nut	£1.40 £1.17
22	MO2122270 Available to backorder	Screw	£1.33 £1.11
24	MO8642820 Available to backorder	Nut	£7.18 £5.98
26	MO3L3743497/1 Available to backorder	Switch Lever	£3.79 £3.16
29	MO3211200 Available to backorder	Switch	£8.02 £6.68
30	MO123835000/0 Available to backorder	Switch Rod	£5.06 £4.22
33	MO3653720 Available to backorder	Brake Spring	£3.38 £2.82
34	MO8563510 Available to backorder	Handguard Assy With Lever	£22.93 £19.11
35	MO4252020 Available to backorder	Chain Brake Link Assy	£5.20 £4.33
37	MO4252010 Available to backorder	Tank Cap	£3.52 £2.93
38	MO8642570 Available to backorder	Filter Intank Assy With Pipe	£9.01 £7.51
39	MO3320170 Available to backorder	Hose Clamp	£1.33 £1.11
40	MO8750100 Available to backorder	Oil Pump Assy	£26.74 £22.28
41	MO2123030 Available to backorder	Screw	£1.33 £1.11
42	MO3786010 Available to backorder	Oil Tube	£3.67 £3.06
51	MO123900205/0 Available to backorder	Bar 14Inch	£23.29 £19.41
52	5043 In stock	Chain 14Inch	£9.54 £7.95
53	MO4181297 Available to backorder	Chain Cover 14Inch	£2.18 £1.82
54	MO112604897/0 Available to backorder	Elastic Washer	£1.55 £1.29
58	MO2123060 Available to backorder	Screw	£1.33 £1.11
65	MO2123090 Available to backorder	Screw	£1.69 £1.41
