SD4700 - 2009 - 292470043/M09 - Mountfield Rotary Mower Wheels Diagram

Name: SD4700 - 2009 - 292470043/M09 - Mountfield Rotary Mower Wheels Diagram
SKU: sd4700_292470043_m09_wheels-group
Price: 1.29 GBP
Availability: InStock

Part No. sd4700_292470043_m09_wheels-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

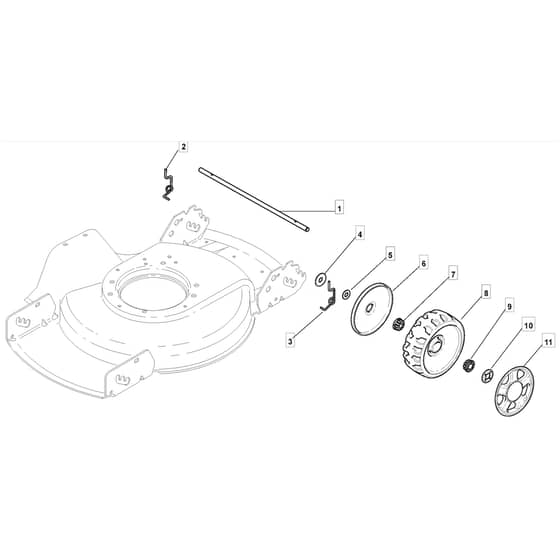

SD4700 - 2009 - 292470043/M09 - Mountfield Rotary Mower Wheels Diagram

Description

Mountfield SD4700 Parts Diagram

Product Name - SD 4700

Model Year - 2009

Model Type - DI 474

Art.N - 292470043/M09

	Part No.	Details
1	MO322033395/0 Available to backorder	Axle From 01-9-2006	£10.14 £8.45
2	MO122450442/0 Available to backorder	Spring. Right	£1.55 £1.29
3	MO122450441/0 Available to backorder	Left Spring	£1.55 £1.29
4	MO122671654/0 Available to backorder	Washer	£2.40 £2.00
5	MO122671659/0 Available to backorder	Washer To 31-8-2015	£1.63 £1.36
5	MO112521370/0 Available to backorder	Washer From 01-9-2015	£1.63 £1.36
6	MO322600095/0 Available to backorder	Protection. Wheel	£1.63 £1.36
7	MO322034511/0 Available to backorder	Bushing To 31-8-2006	£2.40 £2.00
7	MO322034515/1 Available to backorder	Bushing From 01-9-2006	£1.70 £1.42
8	MO322686091/1 In stock	Wheel	£6.77 £5.64
9	MO122034508/0 In stock	Bushing	£1.55 £1.29
10	MO122020050/0 Available to backorder	Ring	£1.55 £1.29
11	MO322110381/0 Available to backorder	Hub Cap Spark D.170 [Grey]	£3.38 £2.82
