SD4700 - 2009 - 292470043/M09 - Mountfield Rotary Mower Deck Diagram

Name: SD4700 - 2009 - 292470043/M09 - Mountfield Rotary Mower Deck Diagram
SKU: sd4700_292470043_m09_deck-group
Price: 1.16 GBP
Availability: InStock

Part No. sd4700_292470043_m09_deck-group

Skip to the end of the images gallery

Skip to the beginning of the images gallery

SD4700 - 2009 - 292470043/M09 - Mountfield Rotary Mower Deck Diagram

Description

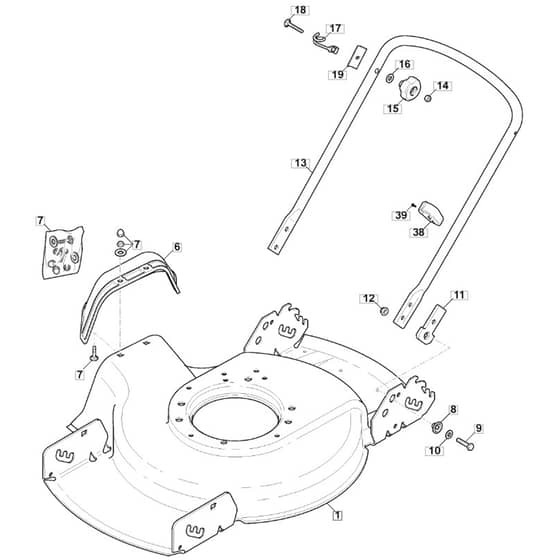

Mountfield SD4700 Parts Diagram

Product Name - SD 4700

Model Year - 2009

Model Type - DI 474

Art.N - 292470043/M09

	Part No.	Details
1	MO381004733/0 Available to backorder	Grey Deck	£197.09 £164.24
6	MO322600159/0 Available to backorder	Stone Guard. Black	£11.34 £9.45
7	MO381008502/0 Available to backorder	Outfit. Screws	£4.64 £3.87
8	MO322041958/0 Available to backorder	Bushing	£1.39 £1.16
9	MO112793701/0 In stock	Screw	£1.55 £1.29
10	MO122671651/0 In stock	Washer	£1.97 £1.64
11	MO322551577/0 Available to backorder	Isolation Plate	£3.10 £2.58
12	MO112155000/0 In stock	Nut	£1.55 £1.29
13	MO381006639/0 Available to backorder	Handle Lower Part Black	£24.13 £20.11
14	MO112361005/0 Available to backorder	Nut	£4.24 £3.53
15	MO322399810/0 In stock	Black Knob	£8.29 £6.91
16	MO112521350/0 In stock	Washer	£1.55 £1.29
17	MO122430311/0 In stock	Starting Rope Guide Spring	£6.90 £5.75
18	MO112820655/0 In stock	Screw	£1.39 £1.16
19	MO322545137/0 Available to backorder	Handle. Upper Part	£1.63 £1.36
38	MO322192001/0 Available to backorder	Clamp	£1.63 £1.36
39	MO112728706/0 In stock	Self-Tap Screw Use 112728706.0	£1.60 £1.33
