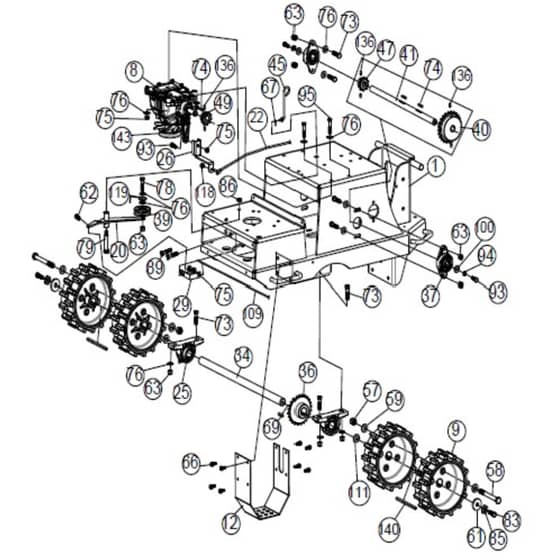

Billy Goat SC180H - Sodcutter Transmission Diagram

Ref. Img. Part No. Details
  22 Speed Control Sc BG371204
Speed Control Sc
Out of stock
£326.94 £272.45

  36 Sprocket 40C25 1 BG371223
Sprocket 40C25 1" Bore
Out of stock
£171.48 £142.90

  37 Bearing 3/4 BG350209
Bearing 3/4" Cast Flange W/Zerk
Out of stock
£39.46 £32.88

  40 Sprocket 40B25 3/4 BG371235
Sprocket 40B25 3/4"
Out of stock
£32.14 £26.78

  41 Jackshaft & Wheel Drive BG371251
Jackshaft & Wheel Drive
Out of stock
£50.81 £42.34

  47 Sprocket 40B10 3/4 BG371244
Sprocket 40B10 3/4" Bore
Out of stock
£9.48 £7.90

  49 Sprocket 40B10 5/8 BG371212
Sprocket 40B10 5/8" Bore
Out of stock
£14.46 £12.05

  57 Nut Lock 1/2 BG8160005
Nut Lock 1/2"-13 Hex
Out of stock
£0.97 £0.81

  59 Washer 1/2 BG8172011
Washer 1/2" Sae
In stock
Was £1.10 £0.92 Special Price £0.73 £0.61

  62 Spring Extension BG800242
Spring Extension
Out of stock
£5.26 £4.38

  63 Nut Lock 3/8 BG8160003
Nut Lock 3/8"-16
Out of stock
£0.97 £0.81

  69 Key 1/4 BG9201113
Key 1/4" Sq X 1"
Out of stock
£2.40 £2.00

  73 Screwcap 3/8 BG8041052
Screwcap 3/8"-16 X 1 1/2" Hc Zp
Out of stock
£1.28 £1.07

  74 Key 3/16 BG9201078
Key 3/16" Sq X 1"
Out of stock
£2.40 £2.00

  75 Nut Lock 5/16 BG8160002
Nut Lock 5/16"-18
Out of stock
£0.97 £0.81

  76 Washer 5/16 BG8171003
Washer 5/16" Flat
Out of stock
£0.78 £0.65

  79 Shoulder Bolt 1/2 BG520031
Shoulder Bolt 1/2" X 2"
Out of stock
£6.43 £5.36

  85 Washer Lock 3/8 BG400502
Washer Lock 3/8" Twisted Tooth
Out of stock
£4.20 £3.50

  86 Nut Lock 3/8 BG8161042
Nut Lock 3/8"-16 Lt Wt Th Zp
Out of stock
£0.97 £0.81

  89 Screwcap 1/4 BG8041004
Screwcap 1/4"-20 X 3/4" Hcs Zp
Out of stock
£0.97 £0.81

  93 Screwcap 5/16 BG8041028
Screwcap 5/16"-18 X 1" Gr 5 Hcs Zp
Out of stock
£0.97 £0.81

  94 Lock Washer 5/16 BG8177011
Lock Washer 5/16" S/T Med
Out of stock
£0.78 £0.65

  95 Screwcap 5/16 BG8041032
Screwcap 5/16"-18 X 2" Gr 5 Hcs Zp
Out of stock
£0.97 £0.81

  98 Washer 1/4 BG8171002
Washer 1/4" Flat
Out of stock
£0.78 £0.65

  100 Washer 3/8 BG8171004
Washer 3/8"Fc
Out of stock
£0.78 £0.65

  109 Cable Control Drive Qv BG831309-S
Cable Control Drive Qv
Out of stock
£126.66 £105.55

  140 Key 1/4 BG9201131
Key 1/4" X 400"
Out of stock
£2.89 £2.41


Description

SC180H Parts Diagram
